Nissan-Datsun
>>
2007
>>
Maxima SL
>>
Repair and Diagnosis
>>
Brakes
>>
Traction Control
>>
Brake Control System
>>
TCS/Abs
>>
System Description
>>
System Diagram
System Diagram

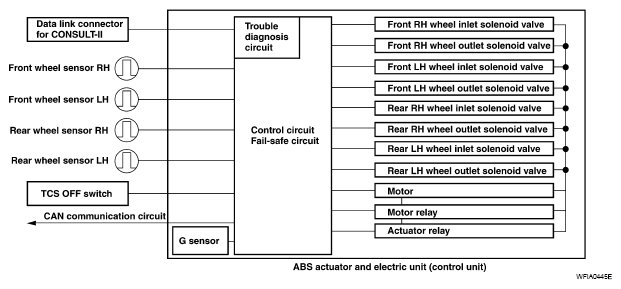

Fig 1: TCS/ABS System Diagram
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
