Shift Lock System Electrical Parts Location

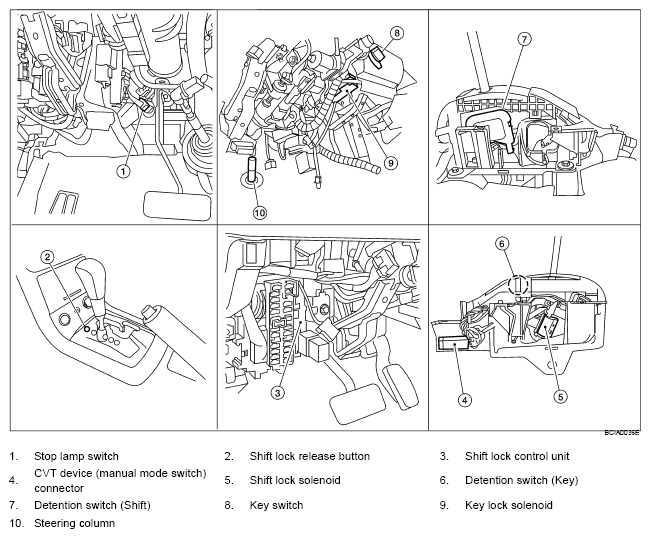

Fig 1: Identifying Shift Lock System Electrical Parts Location
G04916223Courtesy of NISSAN MOTOR CO., U.S.A.
NOTE: This emergency lever can be used when battery is off ignition key cannot be removed. In the situation like this, by operating this lever, ignition key can be removed.
