DTC P0112, P0113 IAT Sensor: Wiring Diagram

For PG-POWER, refer to POWER SUPPLY, GROUND & CIRCUIT ELEMENTS .

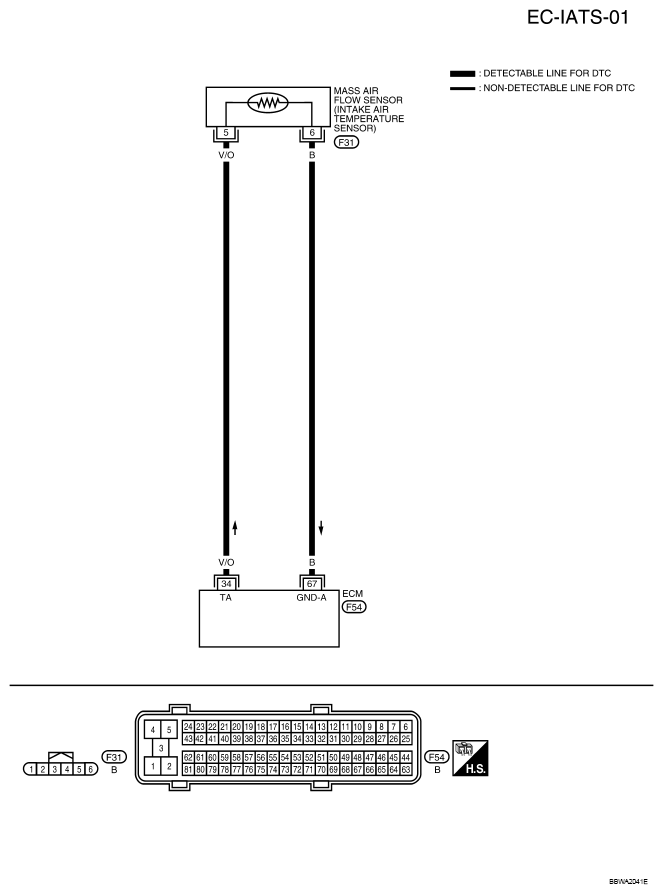

Fig 1: EC-IATS-01 - Wiring Diagram

G04915311

Courtesy of NISSAN MOTOR CO., U.S.A.
