Mil And Data Link Connector: Wiring Diagram

For PG, go to POWER SUPPLY, GROUND & CIRCUIT ELEMENTS FRONTIER-->.

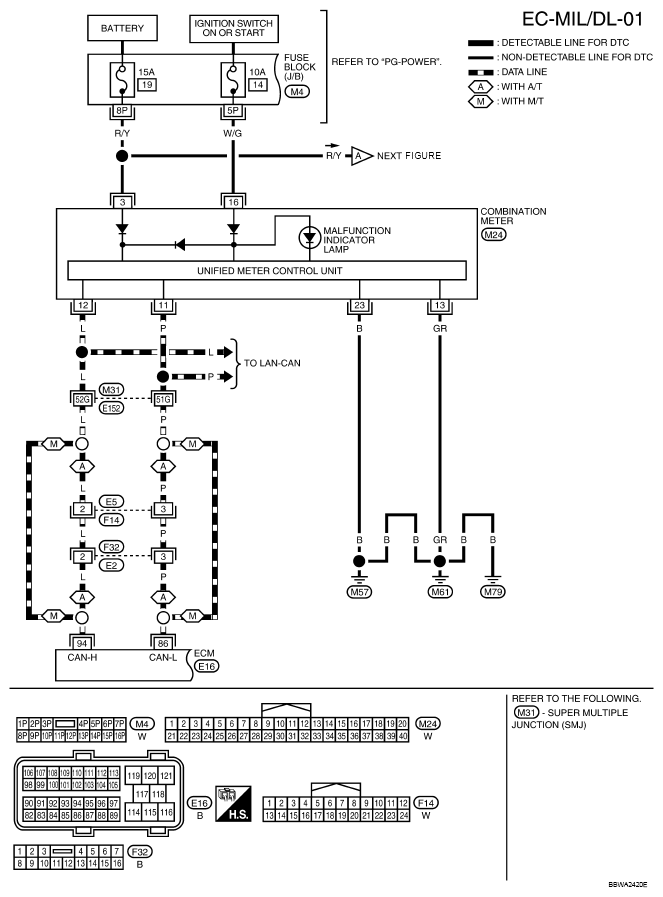

Fig 1: MIL And Data Link Connector Wiring Diagram (EC-MIL/DL-01)

Courtesy of NISSAN NORTH AMERICA, INC.

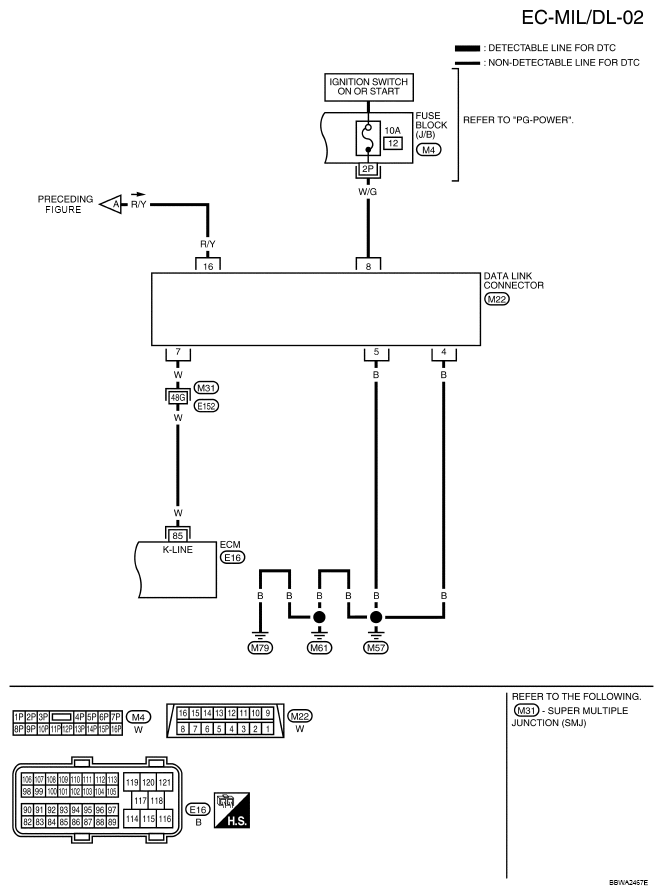

Fig 2: MIL And Data Link Connector Wiring Diagram (EC-MIL/DL-02)

Courtesy of NISSAN NORTH AMERICA, INC.
