Fuel Injector: Wiring Diagram

For PG, go to POWER SUPPLY, GROUND & CIRCUIT ELEMENTS FRONTIER-->.

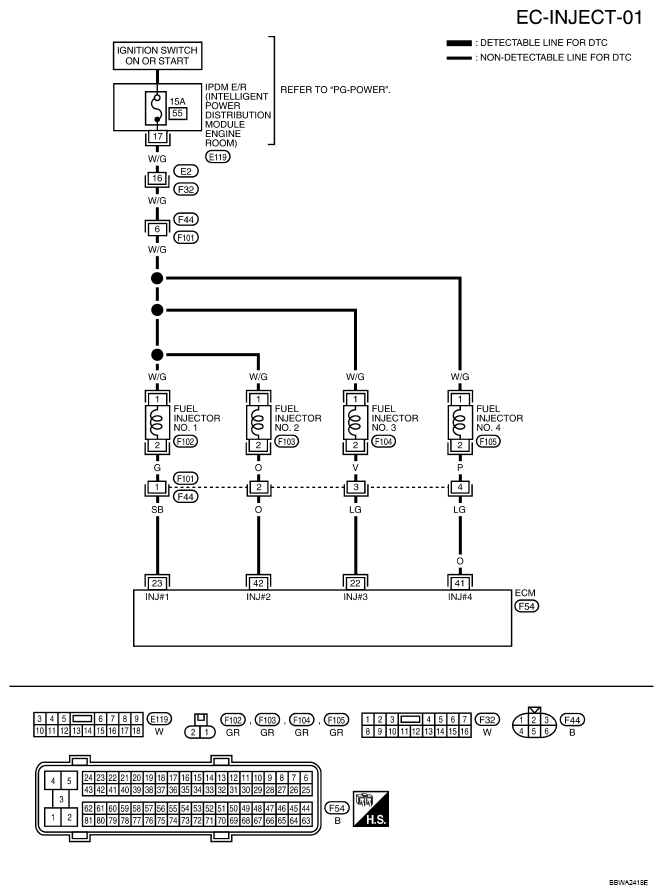

Fig 1: Fuel Injector Wiring Diagram (EC-INJECT-01)

Courtesy of NISSAN NORTH AMERICA, INC.

Specification data are reference values and are measured between each terminal and ground.

Pulse signal is measured by CONSULT-II.

CAUTION: Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in damage to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.

SPECIFICATION DATA AND REFERENCE VALUES FOR TERMINAL

TERMINAL NO.

WIRE COLOR

ITEM

CONDITION

DATA (DC Voltage)

22
23
41
42

LG
SB
R
O

Fuel injector No. 3
Fuel injector No. 1
Fuel injector No. 4
Fuel injector No. 2

[Engine is running]

Warm-up condition
Idle speed
NOTE: The pulse cycle changes depending on rpm at idle.

BATTERY VOLTAGE (11-14V)⁽¹⁾

Courtesy of NISSAN NORTH AMERICA, INC.

[Engine is running]

Warm-up condition
Engine speed is 2, 000 rpm

BATTERY VOLTAGE (11-14V)⁽¹⁾

Courtesy of NISSAN NORTH AMERICA, INC.

⁽¹⁾	Average voltage for pulse signal (Actual pulse signal can be confirmed by oscilloscope.)
