Component Parts Location

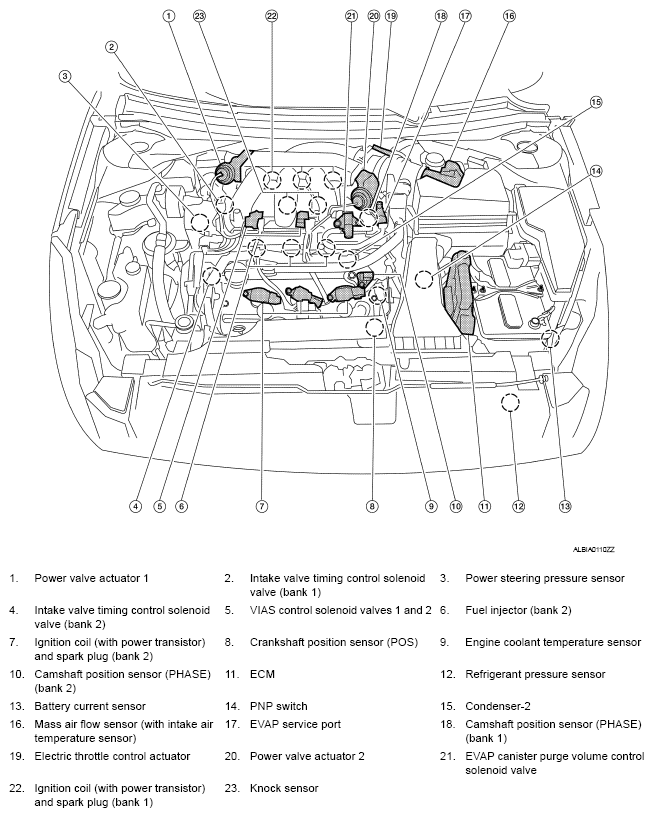

Fig 1: Identifying Electric Ignition System Components (1 Of 7)

Courtesy of NISSAN NORTH AMERICA, INC.

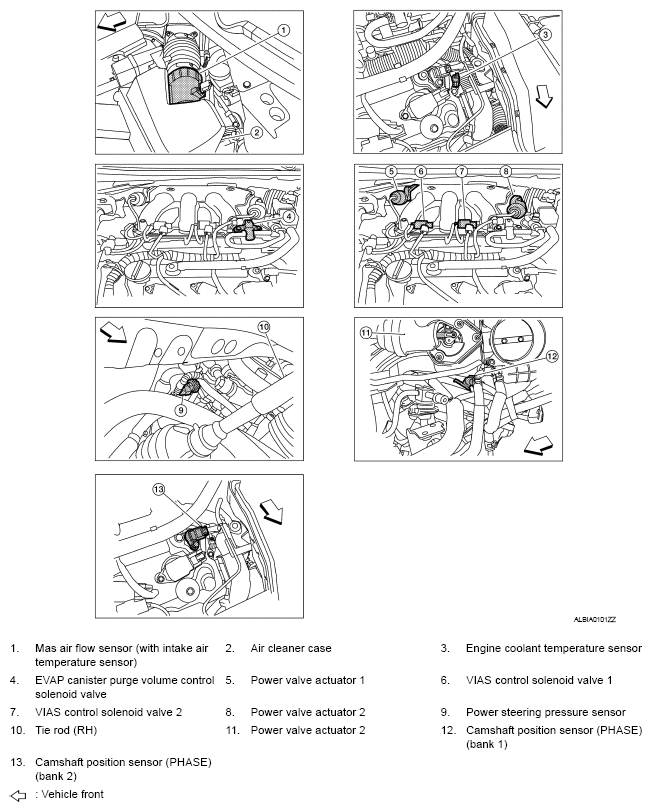

Fig 2: Identifying Electric Ignition System Components (2 Of 7)

Courtesy of NISSAN NORTH AMERICA, INC.

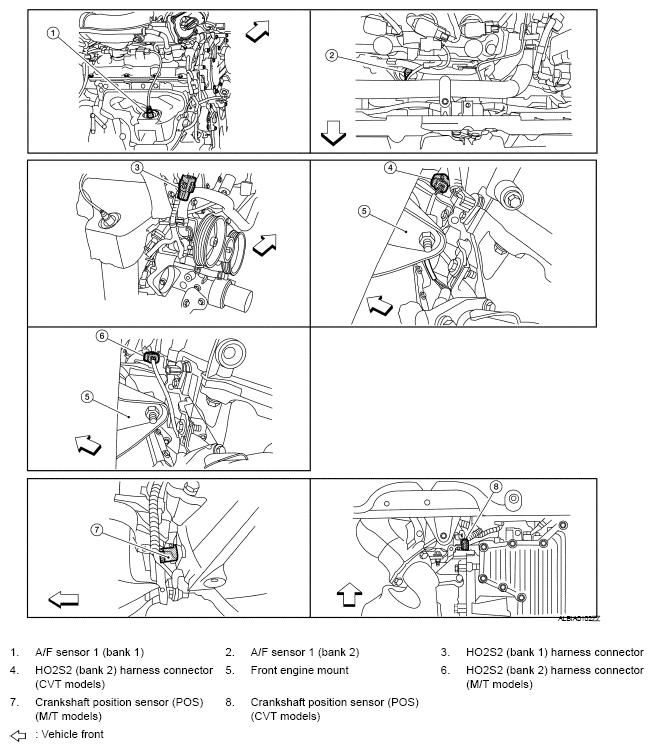

Fig 3: Identifying Electric Ignition System Components (3 Of 7)

Courtesy of NISSAN NORTH AMERICA, INC.

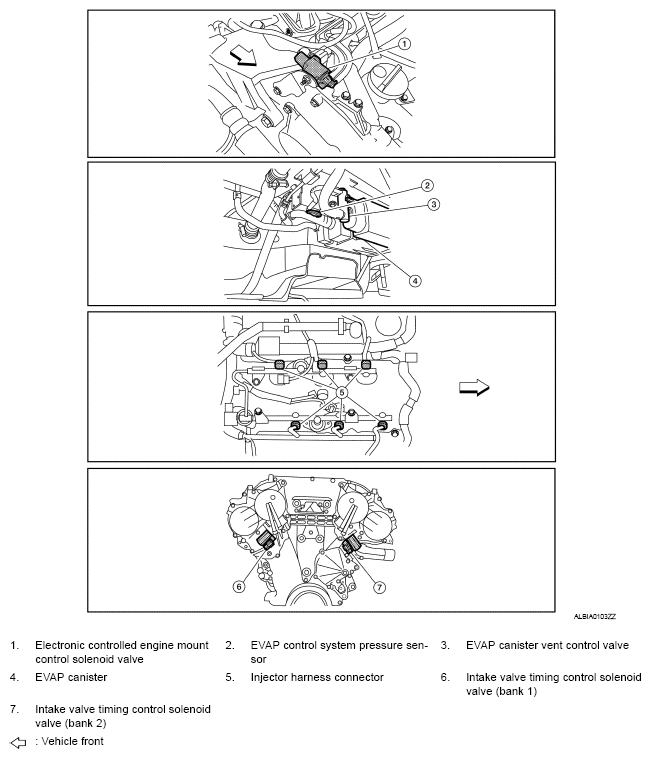

Fig 4: Identifying Electric Ignition System Components (4 Of 7)

Courtesy of NISSAN NORTH AMERICA, INC.

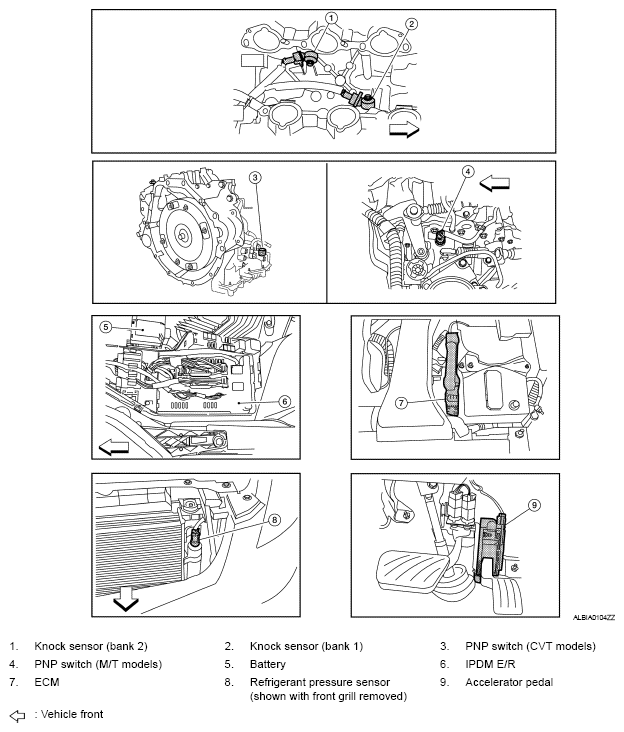

Fig 5: Identifying Electric Ignition System Components (5 Of 7)

Courtesy of NISSAN NORTH AMERICA, INC.

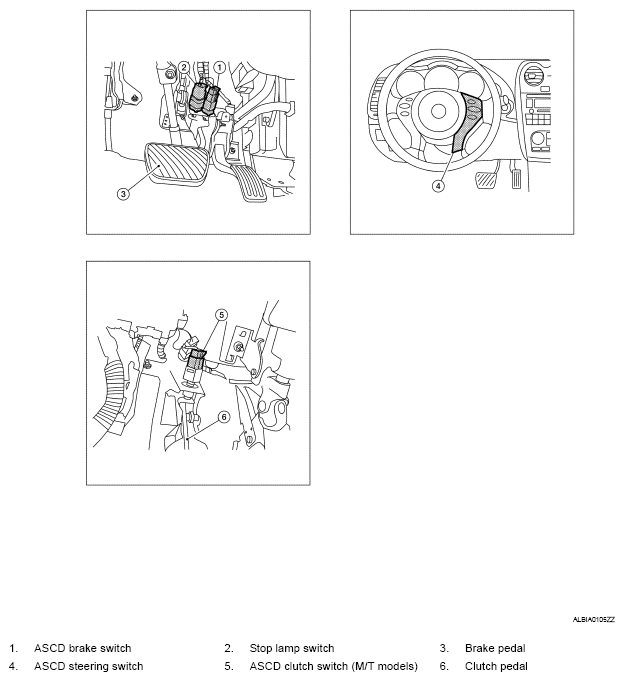

Fig 6: Identifying Electric Ignition System Components (6 Of 7)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 7: Identifying Electric Ignition System Components (7 Of 7)

Courtesy of NISSAN NORTH AMERICA, INC.
