Component Parts Location

Fig 1: Identifying Cooling Fan Control Components (1 Of 7)

Courtesy of NISSAN NORTH AMERICA, INC.

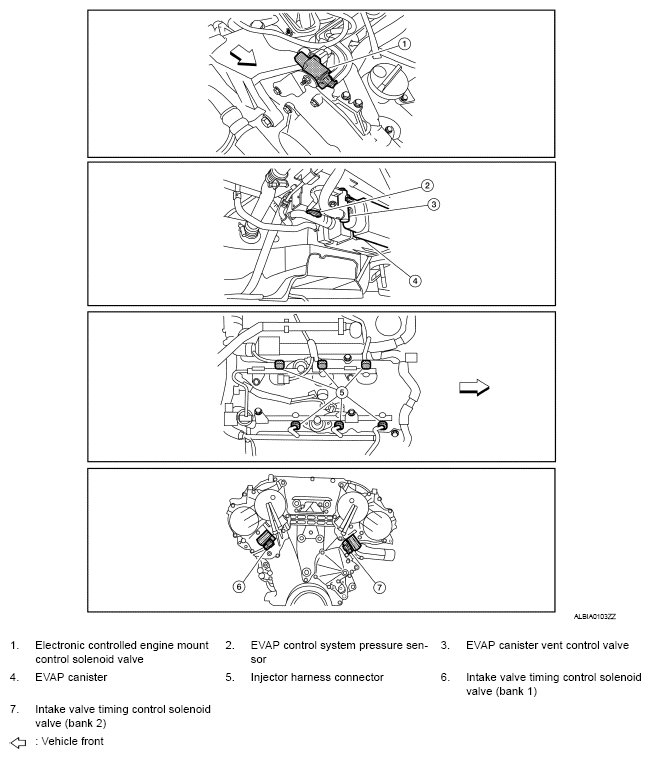

Fig 2: Identifying Cooling Fan Control Components (2 Of 7)

Courtesy of NISSAN NORTH AMERICA, INC.

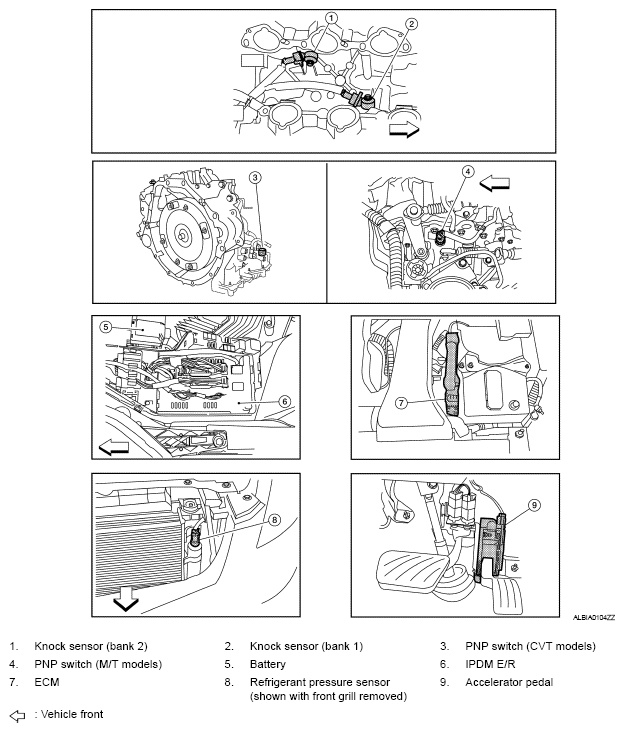

Fig 3: Identifying Cooling Fan Control Components (3 Of 7)

Courtesy of NISSAN NORTH AMERICA, INC.

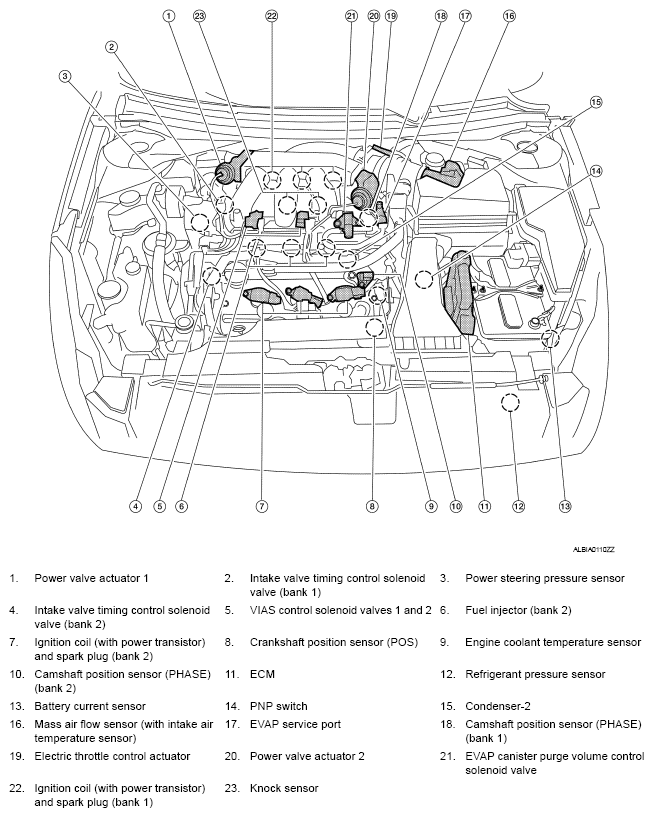

Fig 4: Identifying Cooling Fan Control Components (4 Of 7)

Courtesy of NISSAN NORTH AMERICA, INC.

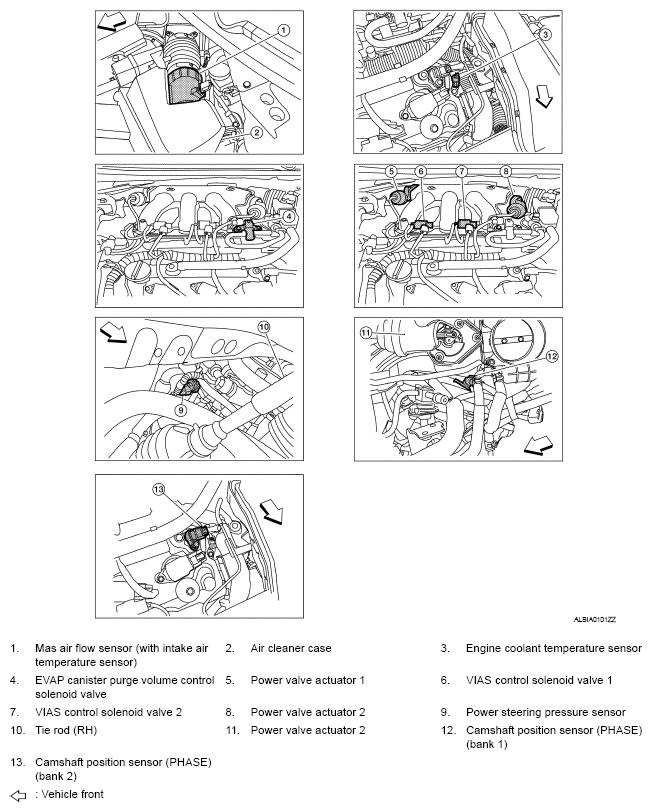

Fig 5: Identifying Cooling Fan Control Components (5 Of 7)

Courtesy of NISSAN NORTH AMERICA, INC.

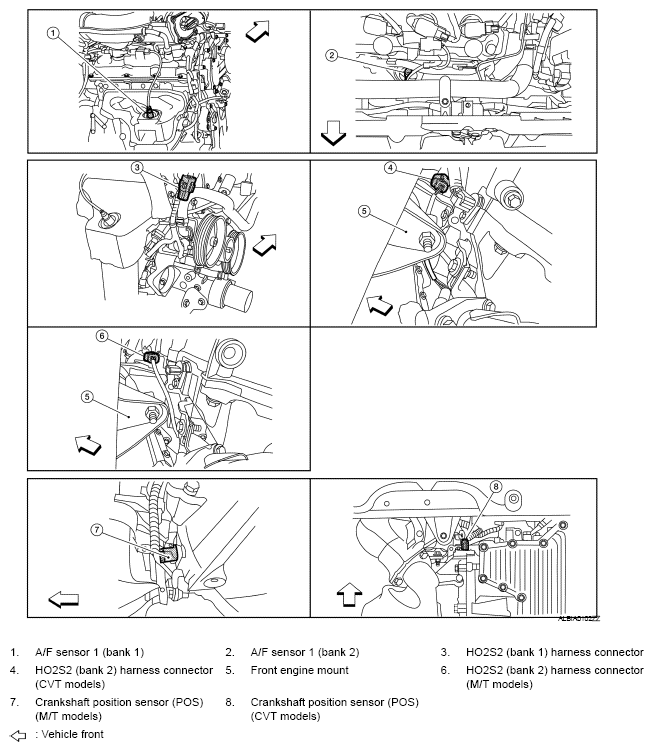

Fig 6: Identifying Cooling Fan Control Components (6 Of 7)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 7: Identifying Cooling Fan Control Components (7 Of 7)

Courtesy of NISSAN NORTH AMERICA, INC.
