Component Parts Location

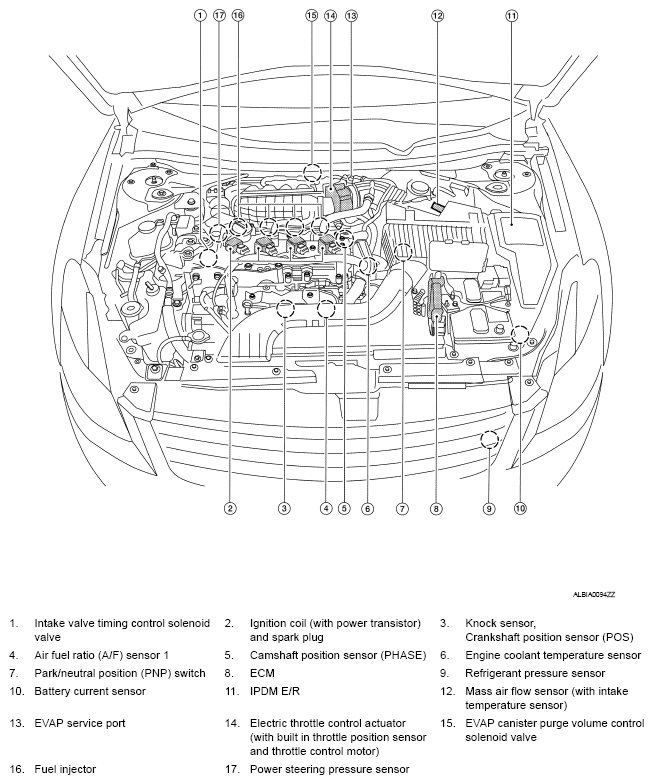

Fig 1: Identifying Intake Valve Timing Control Components Location (1 Of 7)
G04887828

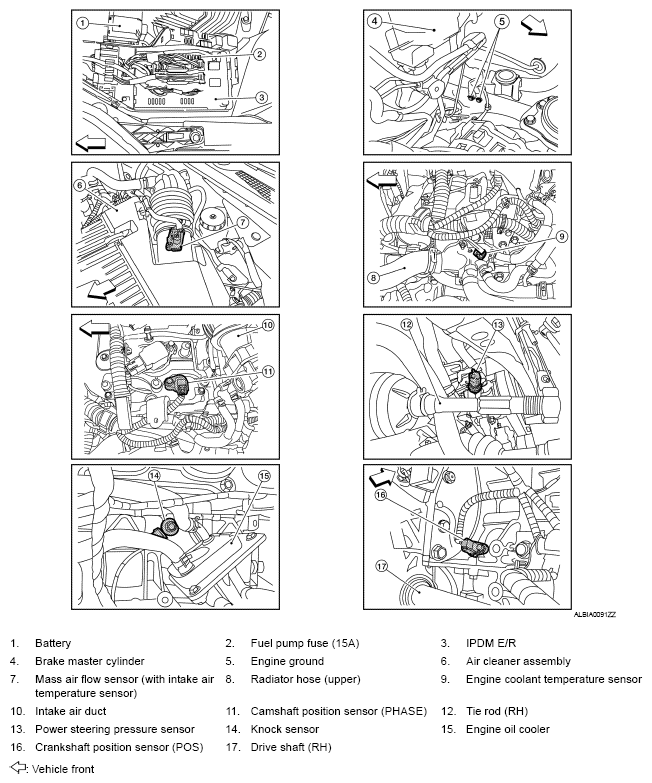

Fig 2: Identifying Intake Valve Timing Control Components Location (2 Of 7)
G04887829
Fig 3: Identifying Intake Valve Timing Control Components Location (3 Of 7)
G04887769

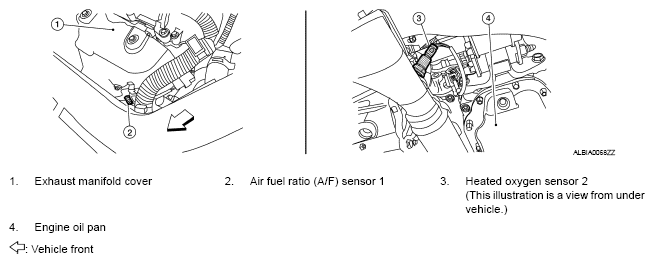

Fig 4: Identifying Intake Valve Timing Control Components Location (4 Of 7)
G04887831
Fig 5: Identifying Intake Valve Timing Control Components Location (5 Of 7)
G04887832
Fig 6: Identifying Intake Valve Timing Control Components Location (6 Of 7)
G04887833
Fig 7: Identifying Intake Valve Timing Control Components Location (7 Of 7)
G04887834
