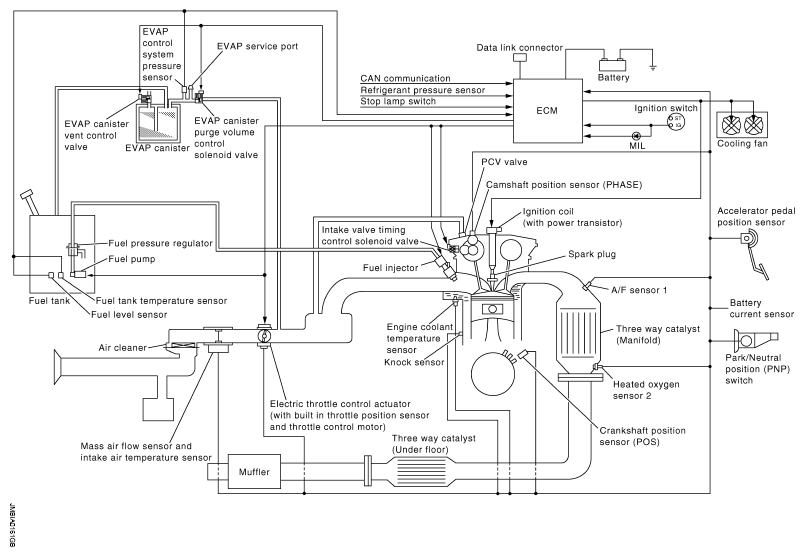

Home >> Nissan-Datsun >> 2007 >> Altima S, Standard >> Repair and Diagnosis >> Engine Performance >> System >> Engine Control System - Introduction (Qr25DE) (Except For CALIFORNIA) >> Function Diagnosis >> Engine Control System >> System Diagram
