Engine Control Component Parts/Control Systems Application

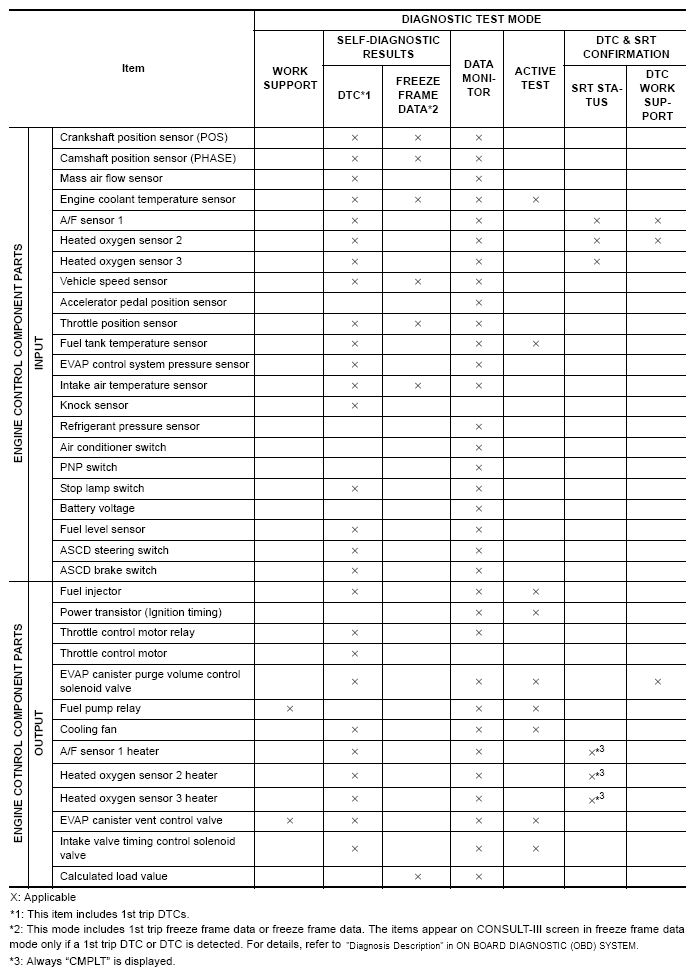

Fig 1: Engine Control Component Control Systems Application

G05029902

Courtesy of NISSAN MOTOR CO., U.S.A.
