Component Function Check

  1. CHECK FUEL PUMP FUNCTION
    1. Turn ignition switch ON.
    2. Pinch fuel feed hose (1) with two fingers.

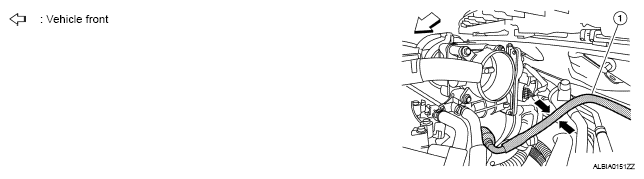

      Fig 1: Identifying Fuel Feed Hose
      G05030027Courtesy of NISSAN MOTOR CO., U.S.A.

      Fuel pressure pulsation should be felt on the fuel feed hose for 1 second after ignition switch is turned ON.

    Is the inspection result normal?

    YES: INSPECTION END

    NO: "DIAGNOSIS PROCEDURE ".
