Home >> Nissan-Datsun >> 2007 >> Altima Base >> Repair and Diagnosis >> Transmission >> Clutch >> On-Vehicle Repair >> Clutch Piping >> Exploded View

Exploded View

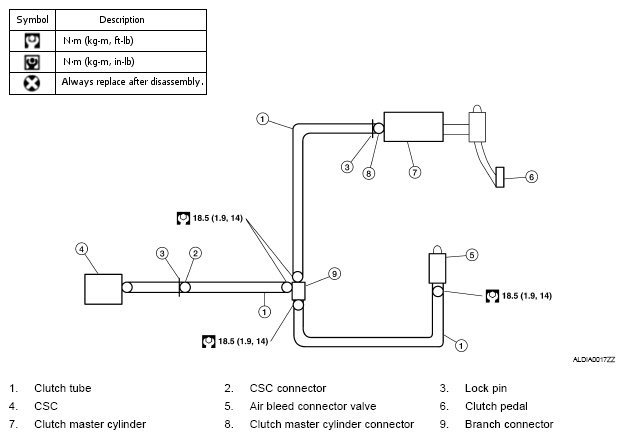

Fig 1: Exploded View Of Clutch Piping With Torque Specifications

G04888806
