Home >> Nissan-Datsun >> 2007 >> Altima Base >> Repair and Diagnosis >> Transmission >> Clutch >> On-Vehicle Repair >> Clutch Pedal >> Exploded View

Exploded View

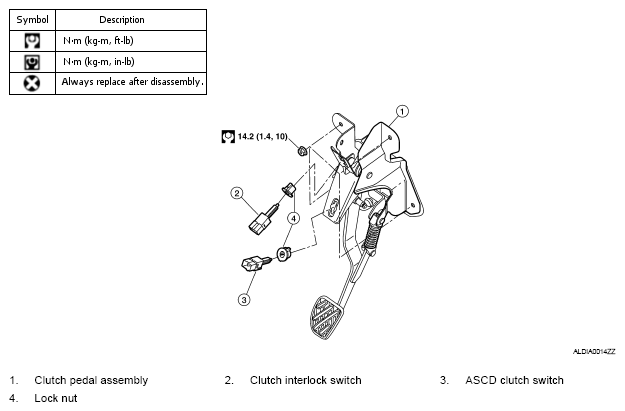

Fig 1: Clutch Pedal Assembly, Clutch Interlock Switch And ASCD Clutch Switch With Torque Specification

G04888800
