Section 115 (Hybrid Control System - Component Testing)
>>
Removal And Installation
>>
Frame Wire
>>
Exploded View
Exploded View
WARNING:
This page is about a different car, the 2008 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.

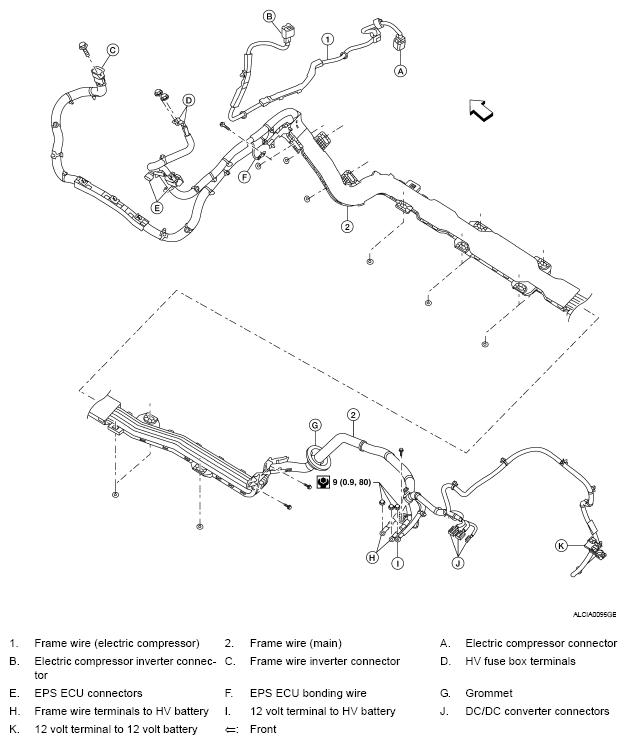

Fig 1: Exploded View Of Frame Wire
Courtesy of NISSAN MOTOR CO., U.S.A.
