IGNITION TIMING: Special Repair Requirement

  1. CHECK IGNITION TIMING

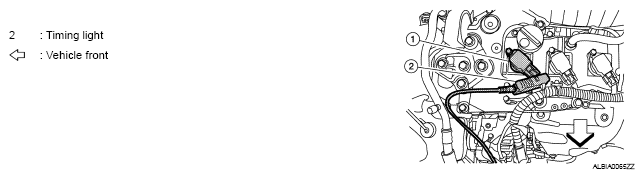

    1. Attach timing light to No. 1 ignition coil (1) wire as shown.
      Fig 1: Attaching Timing Light To No 1 Ignition Coil Wire
      G04887759
    2. Check ignition timing.
      Fig 2: Identifying Timing Indicator
      G04887760
