Engine Control System - Introduction (Qr25DE) (Except For CALIFORNIA)
>>
Electric Ignition System
>>
Component Parts Location
Component Parts Location

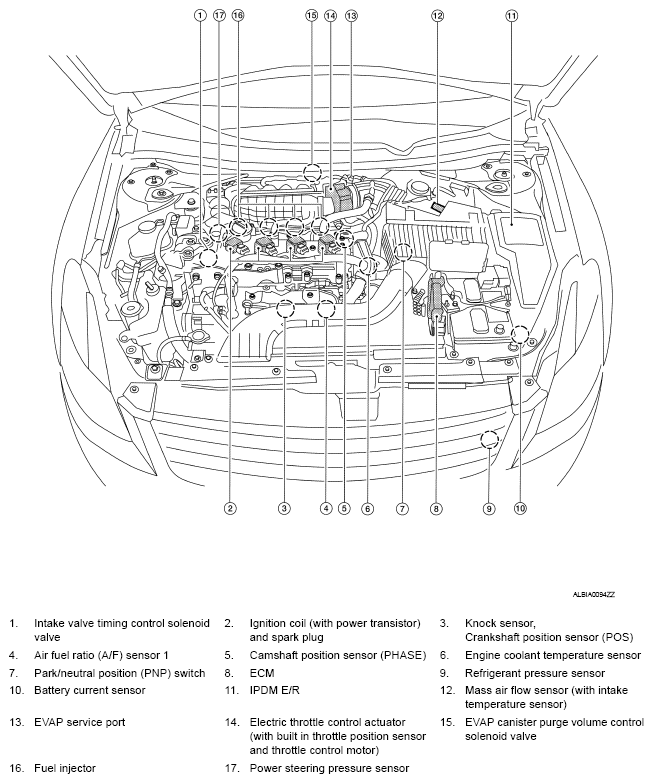

Fig 1: Electric Ignition System Components Location (1 Of 7)

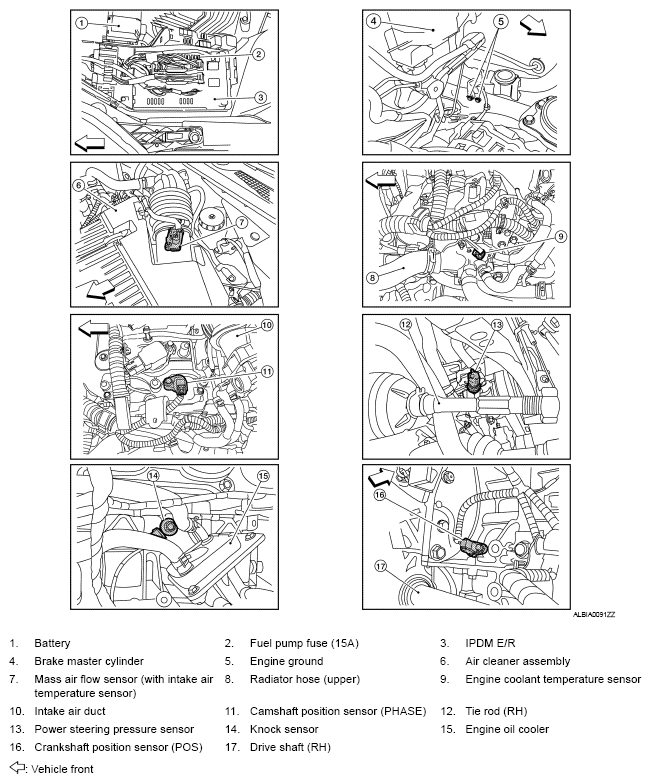

Fig 2: Electric Ignition System Components Location (2 Of 7)
Fig 3: Electric Ignition System Components Location (3 Of 7)

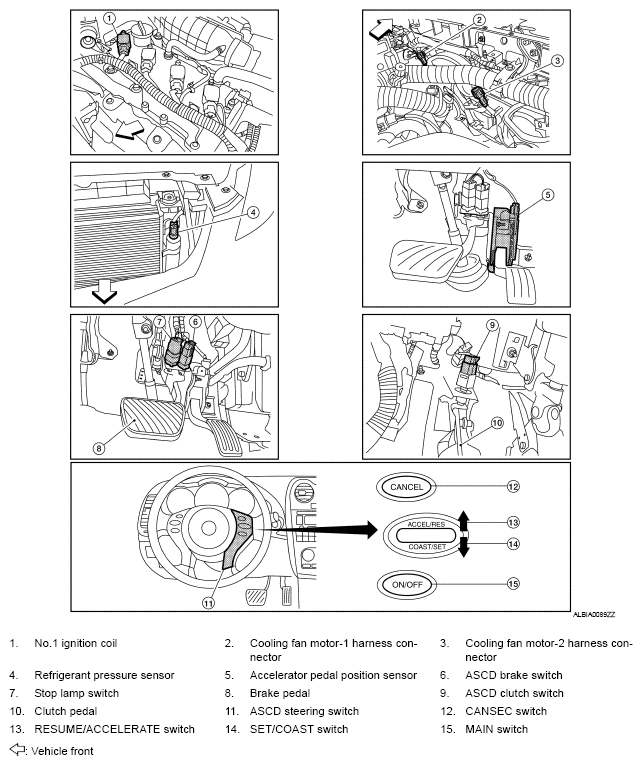

Fig 4: Electric Ignition System Components Location (4 Of 7)

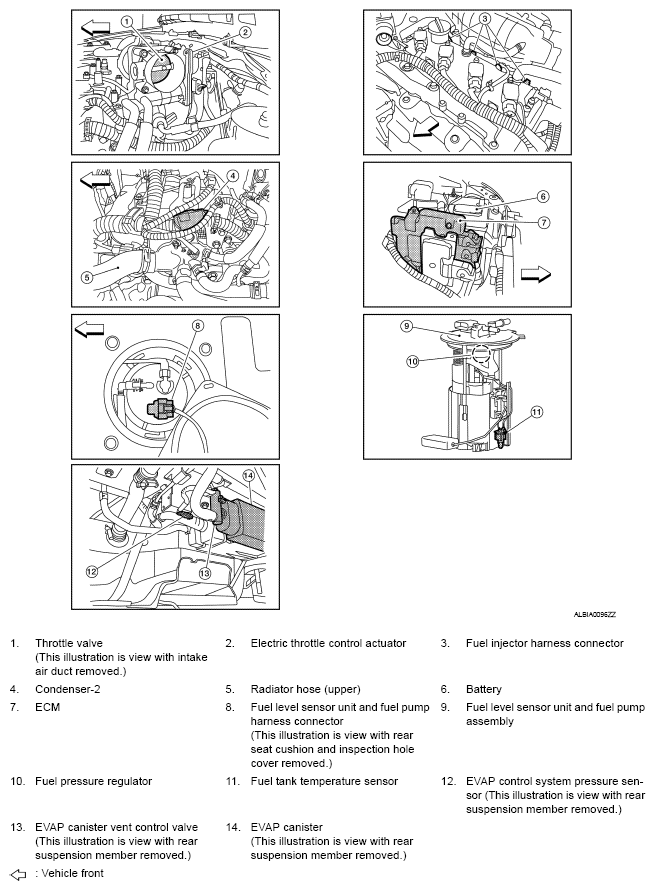

Fig 5: Electric Ignition System Components Location (5 Of 7)

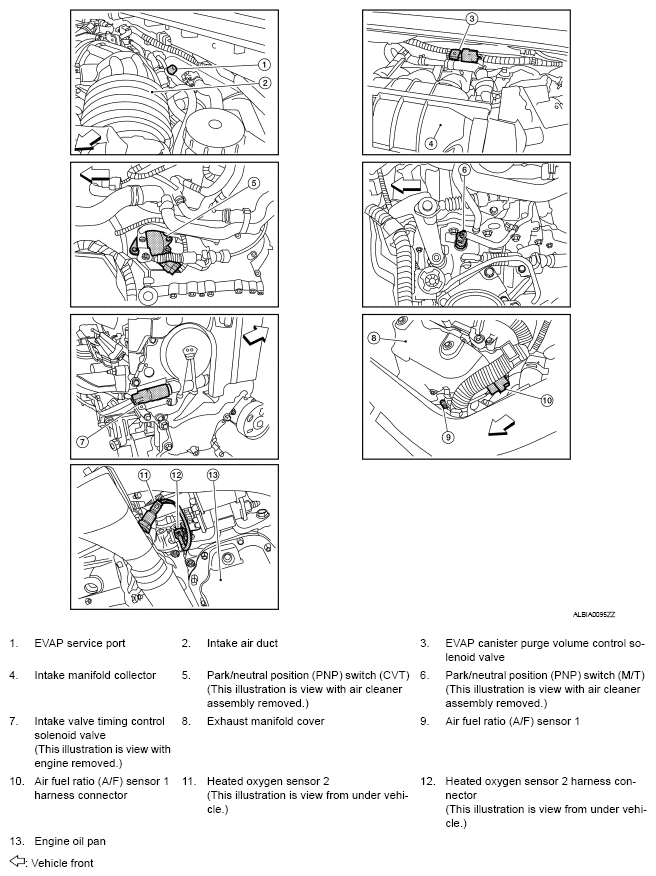

Fig 6: Electric Ignition System Components Location (6 Of 7)

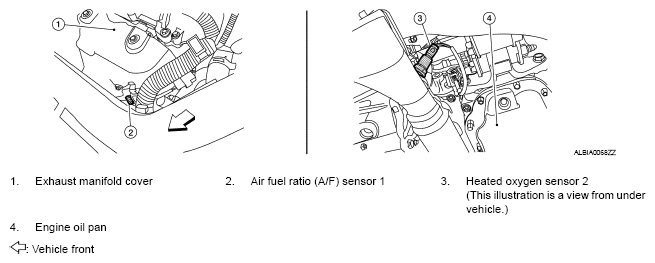

Fig 7: Electric Ignition System Components Location (7 Of 7)
