Component Parts Location

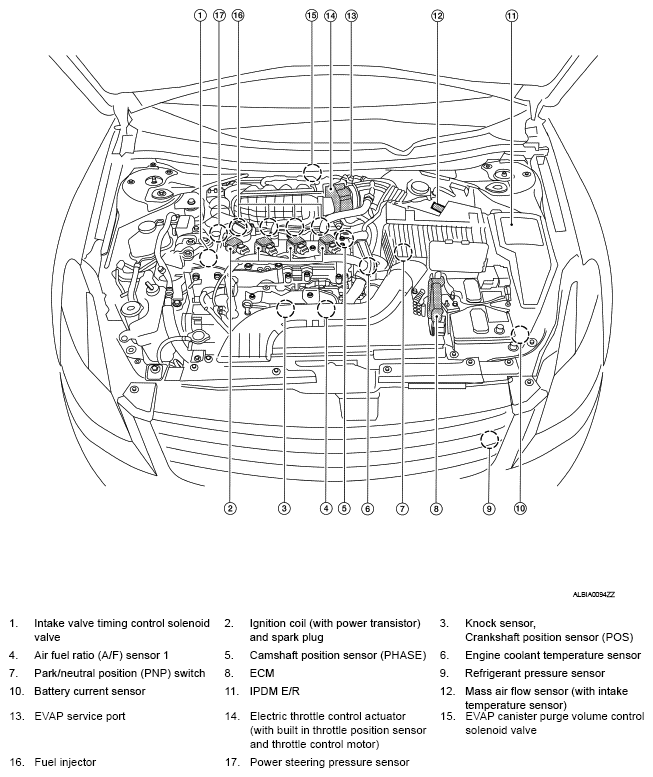

Fig 1: Identifying Cooling Fan Control Components Location (1 Of 7)
G04887810

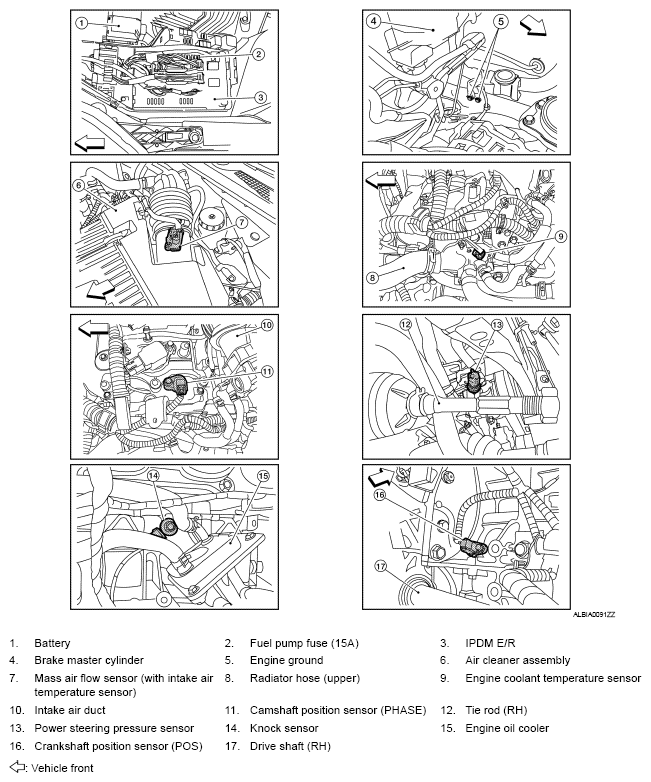

Fig 2: Identifying Cooling Fan Control Components Location (2 Of 7)
G04887811
Fig 3: Identifying Cooling Fan Control Components Location (3 Of 7)
G04887769

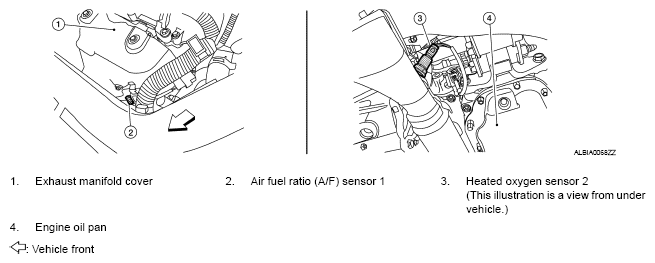

Fig 4: Identifying Cooling Fan Control Components Location (4 Of 7)
G04887813

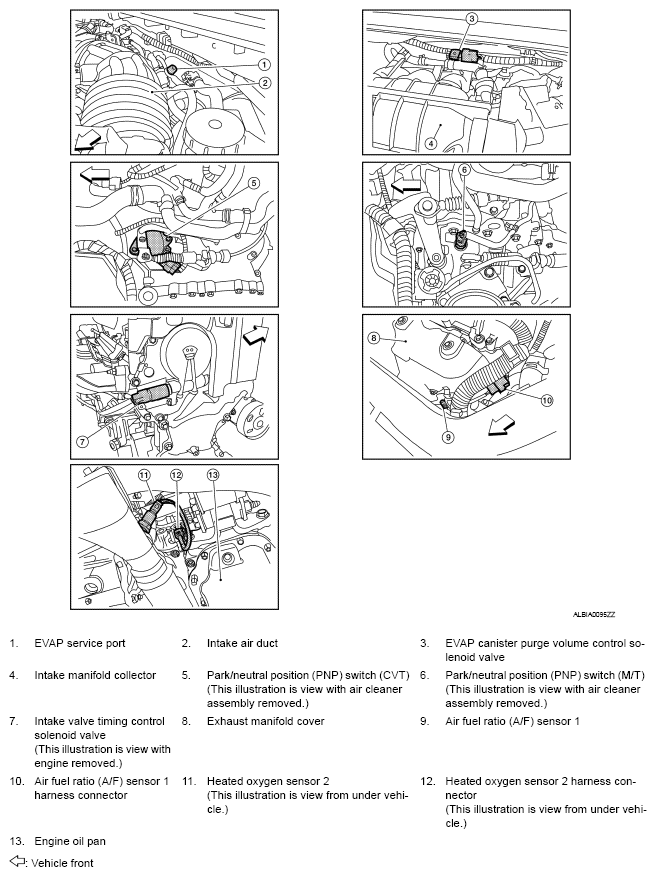

Fig 5: Identifying Cooling Fan Control Components Location (5 Of 7)
G04887814

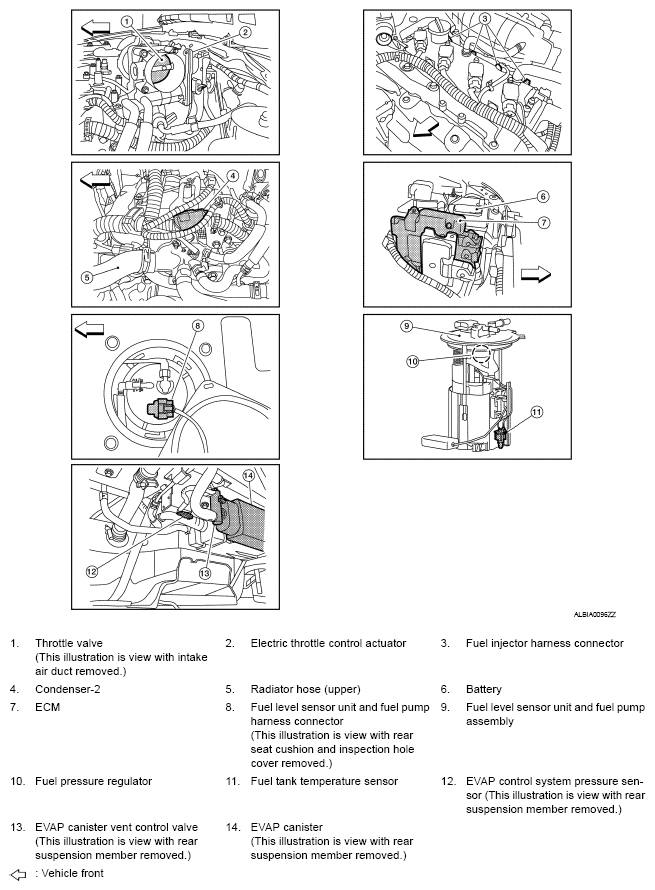

Fig 6: Identifying Cooling Fan Control Components Location (6 Of 7)
G04887815

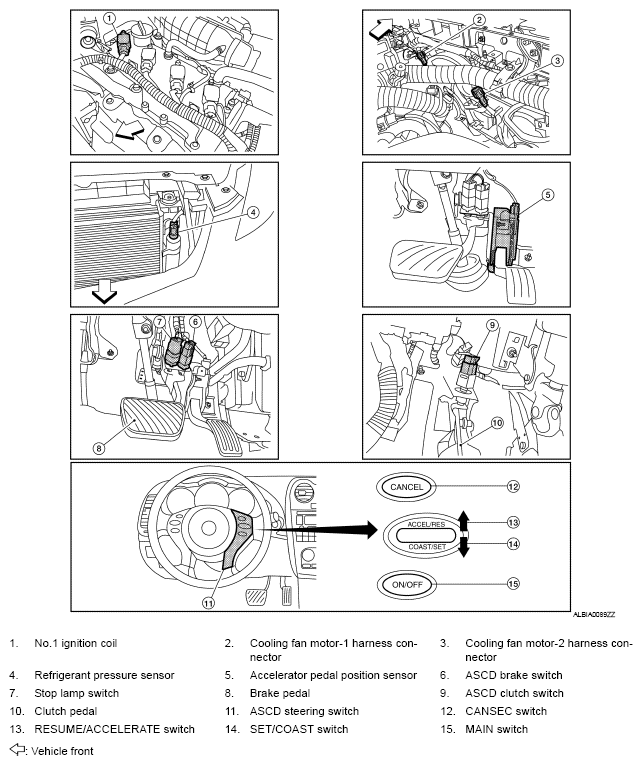

Fig 7: Identifying Cooling Fan Control Components Location (7 Of 7)
G04887816
