Charging System: Wiring Diagram

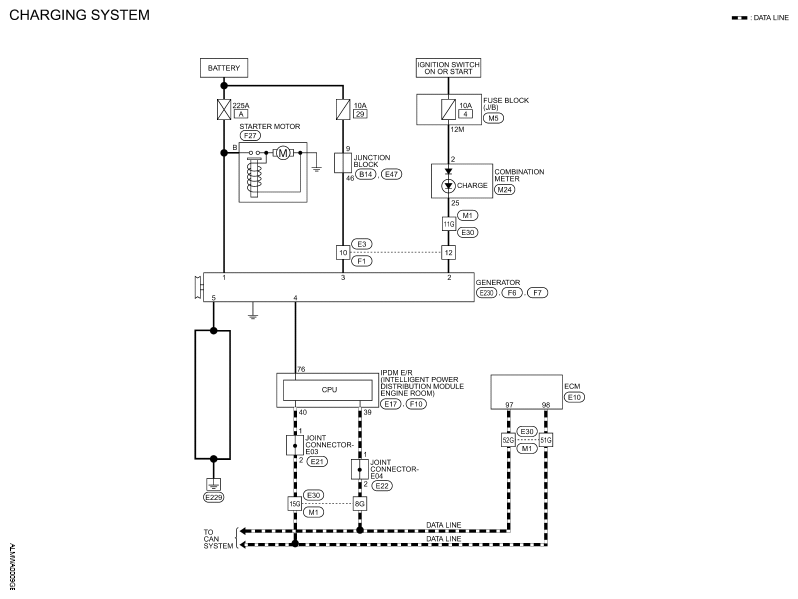

Fig 1: Charging System - Wiring Diagram
G04889621

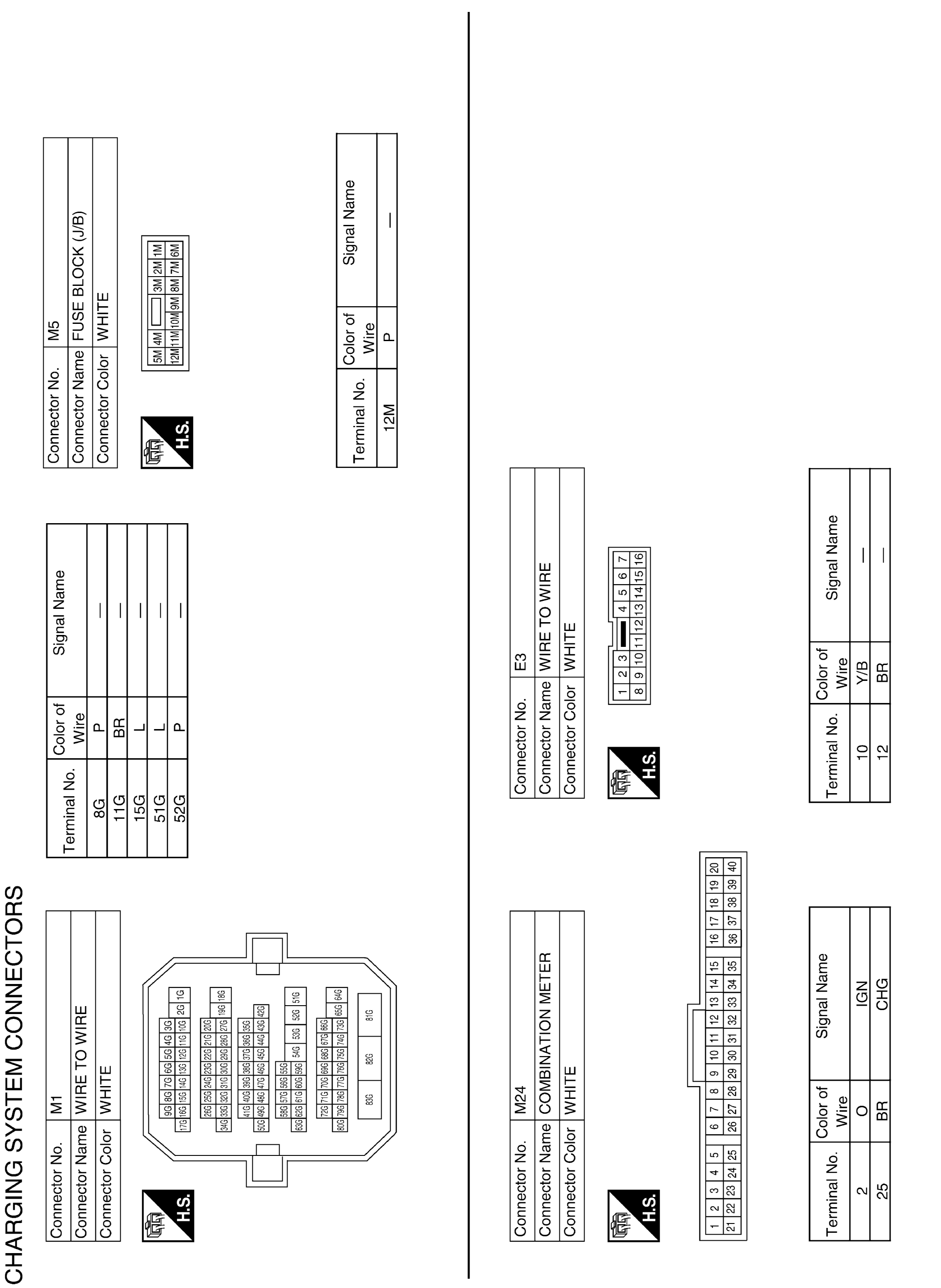

Fig 2: Identifying Charging System Connectors (1 Of 4)
G04889622

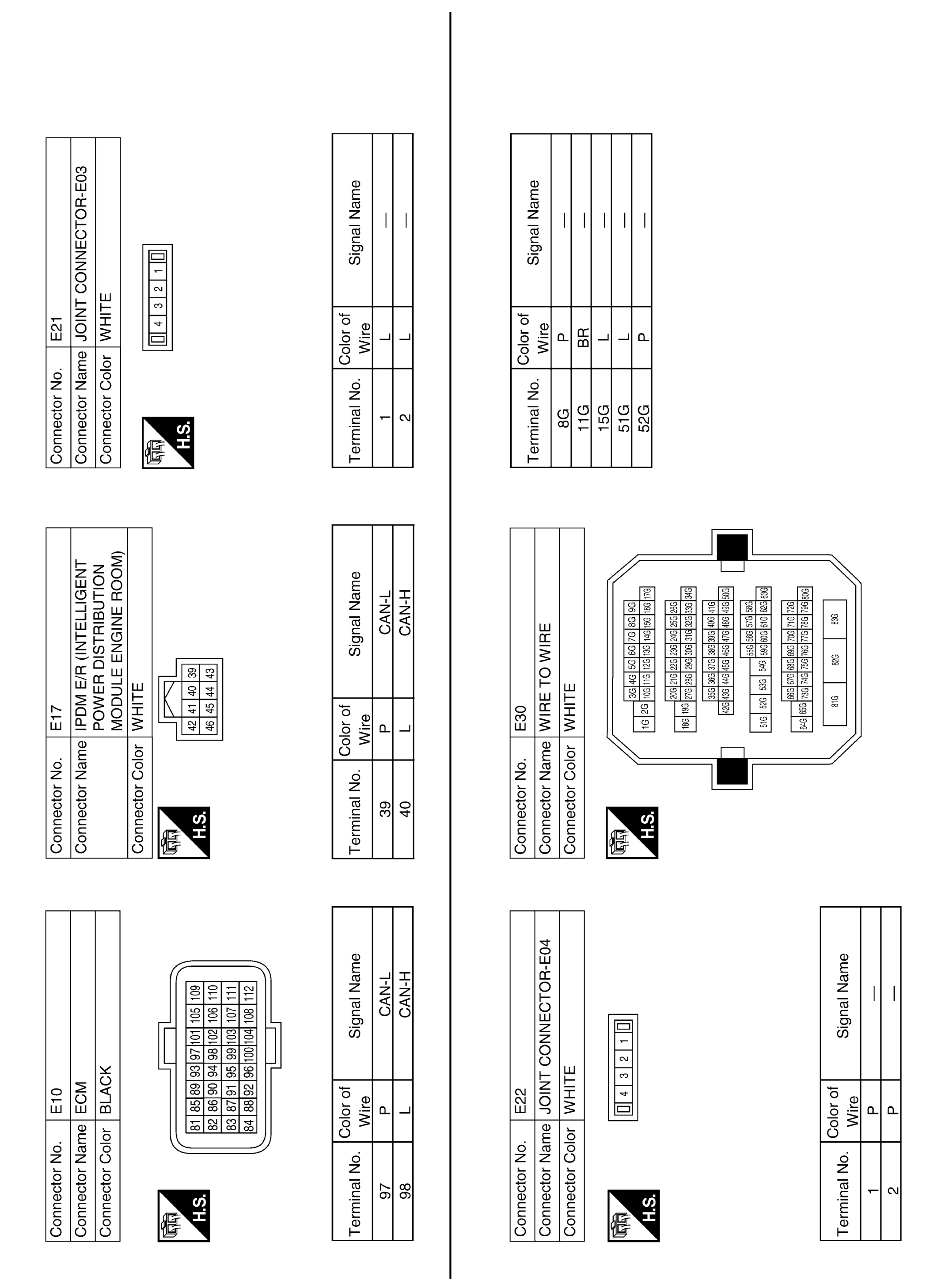

Fig 3: Identifying Charging System Connectors (2 Of 4)
G04889623

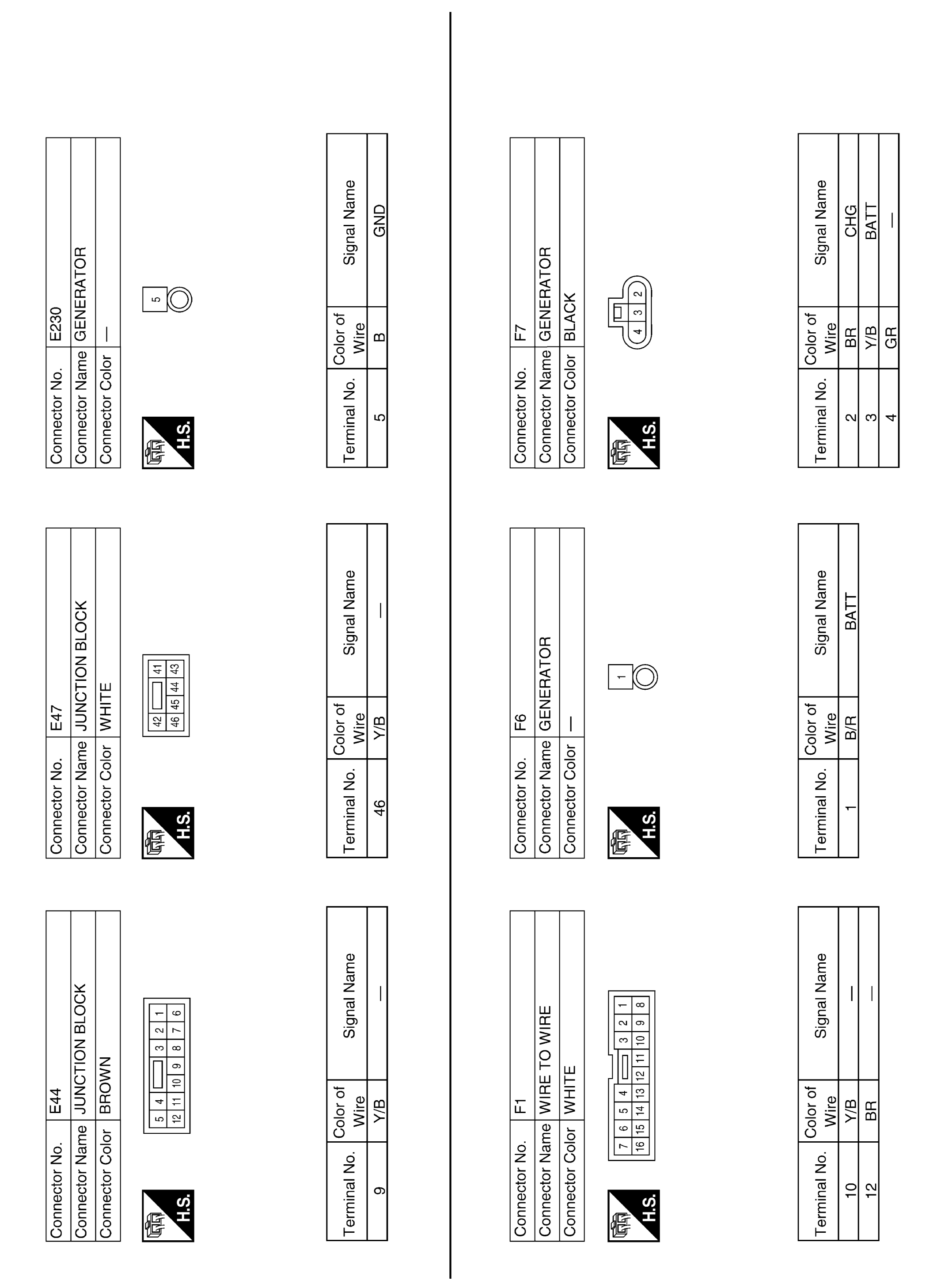

Fig 4: Identifying Charging System Connectors (3 Of 4)
G04889624

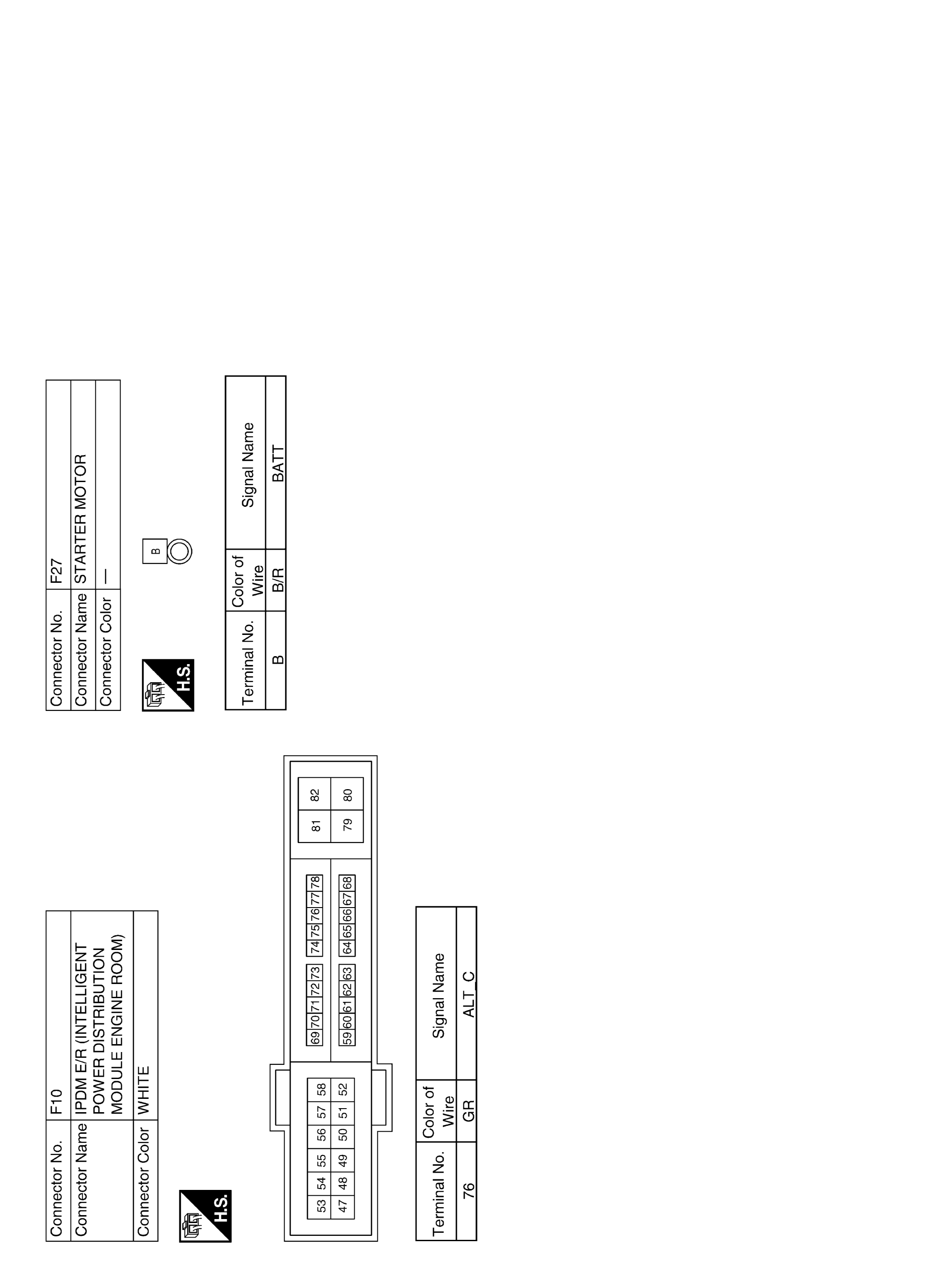

Fig 5: Identifying Charging System Connectors (4 Of 4)
G04889625
