Component Parts Location

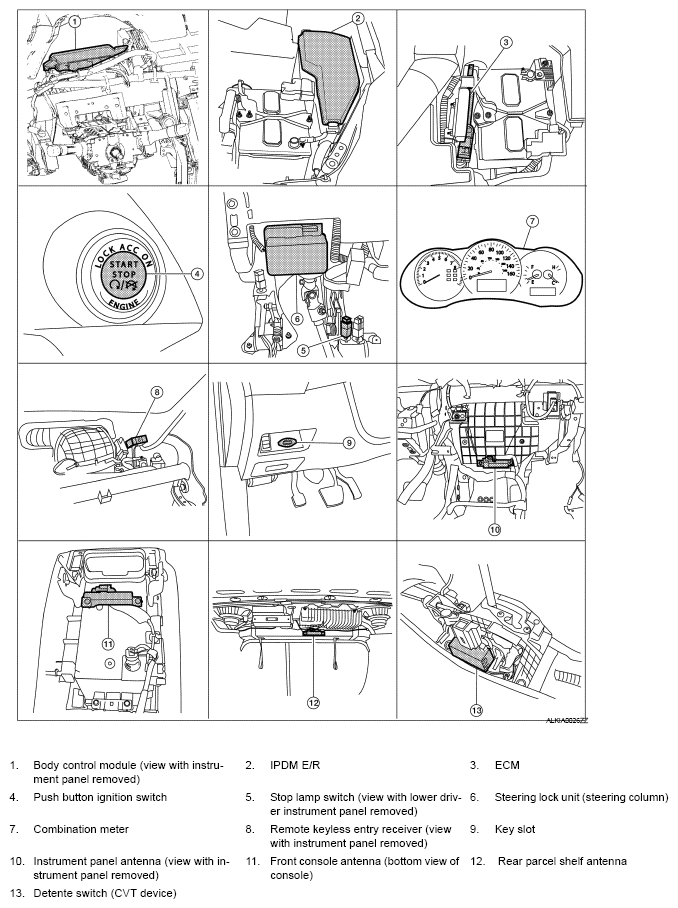

Fig 1: Identifying Intelligent Key System/Engine Start Function Component Parts Location (1 Of 2)
G04888287

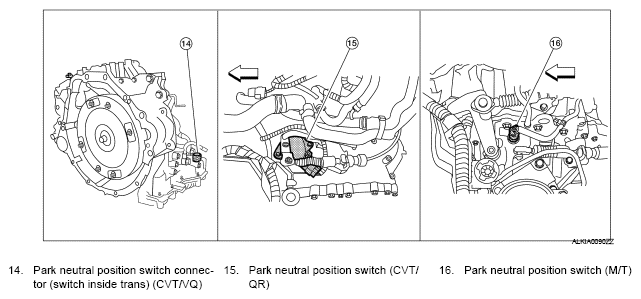

Fig 2: Identifying Intelligent Key System/Engine Start Function Component Parts Location (2 Of 2)
G04888288
