Engine Control Component Parts/Control Systems Application

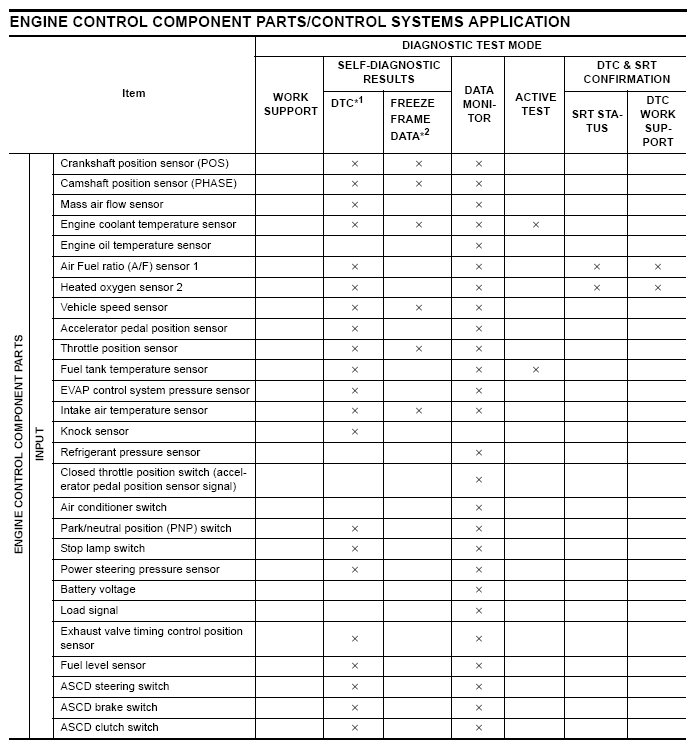

Fig 1: Engine Control Component Parts Chart (1 Of 2)
G04874893Courtesy of NISSAN NORTH AMERICA, INC.

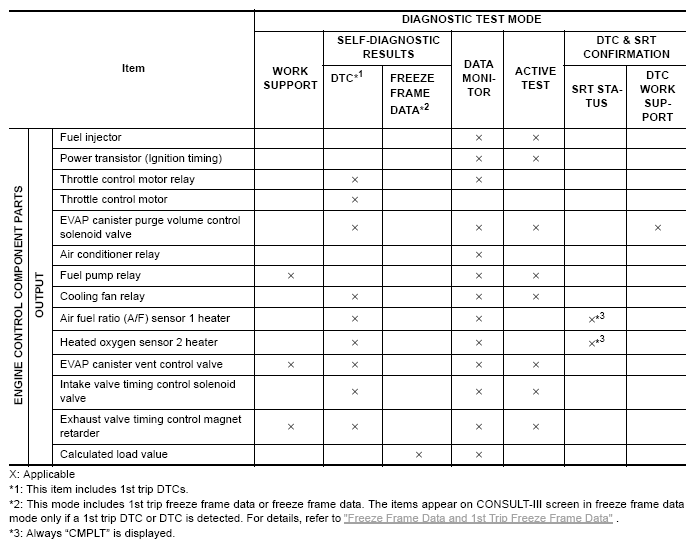

Fig 2: Engine Control Component Parts Chart (2 Of 2)
G04874894Courtesy of NISSAN NORTH AMERICA, INC.
