Automatic Transmission - Component Testing, Removal And Installation And Overhaul (Re4F04B)
>>
Repair For Component Parts
>>
Final Drive
>>
Components
Final Drive: Components

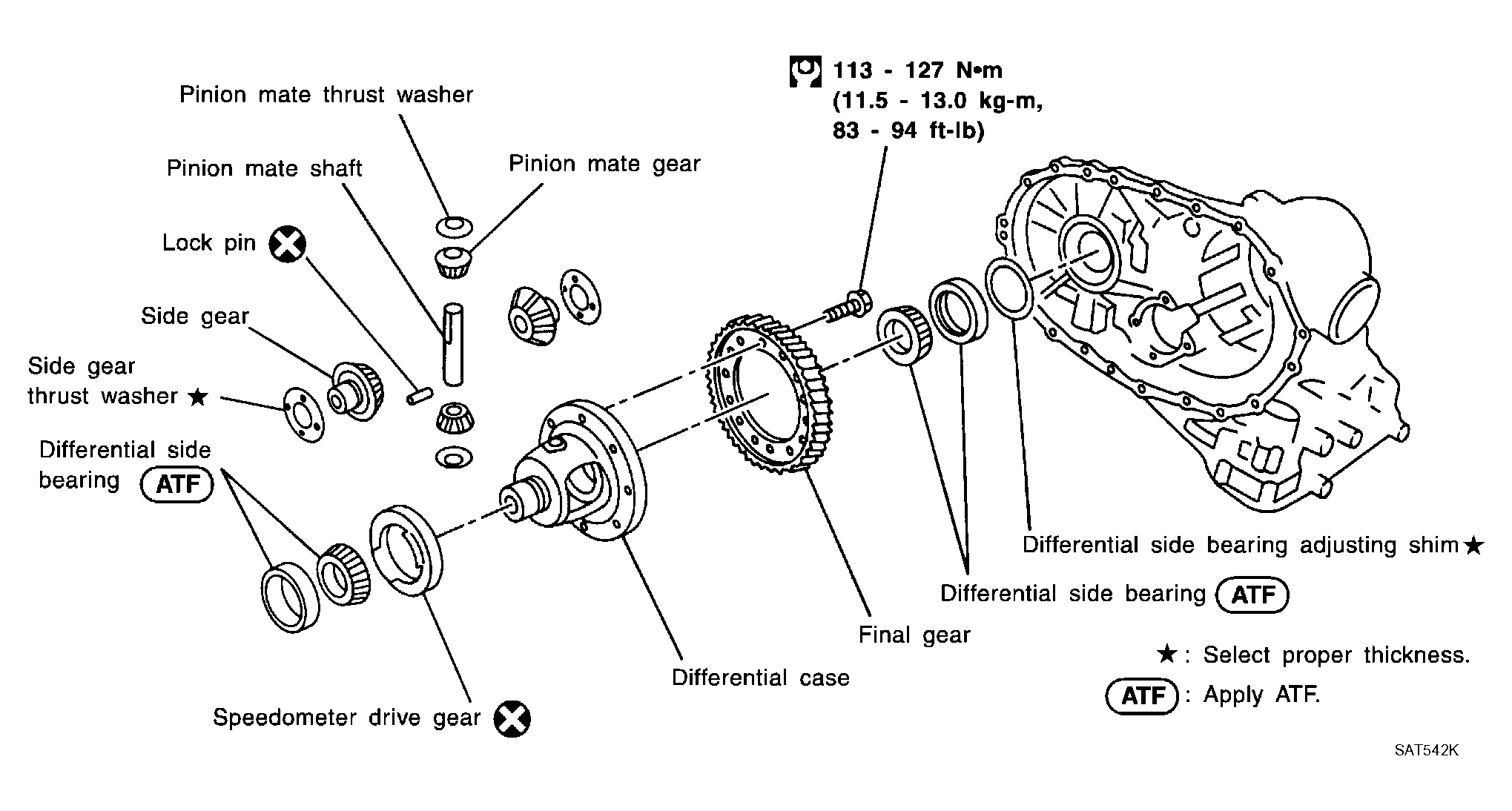

Fig 1: Final Drive Replacement Components With Torque Specifications
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
