Control Valve Upper Body: Components

Apply ATF to all components before installation .

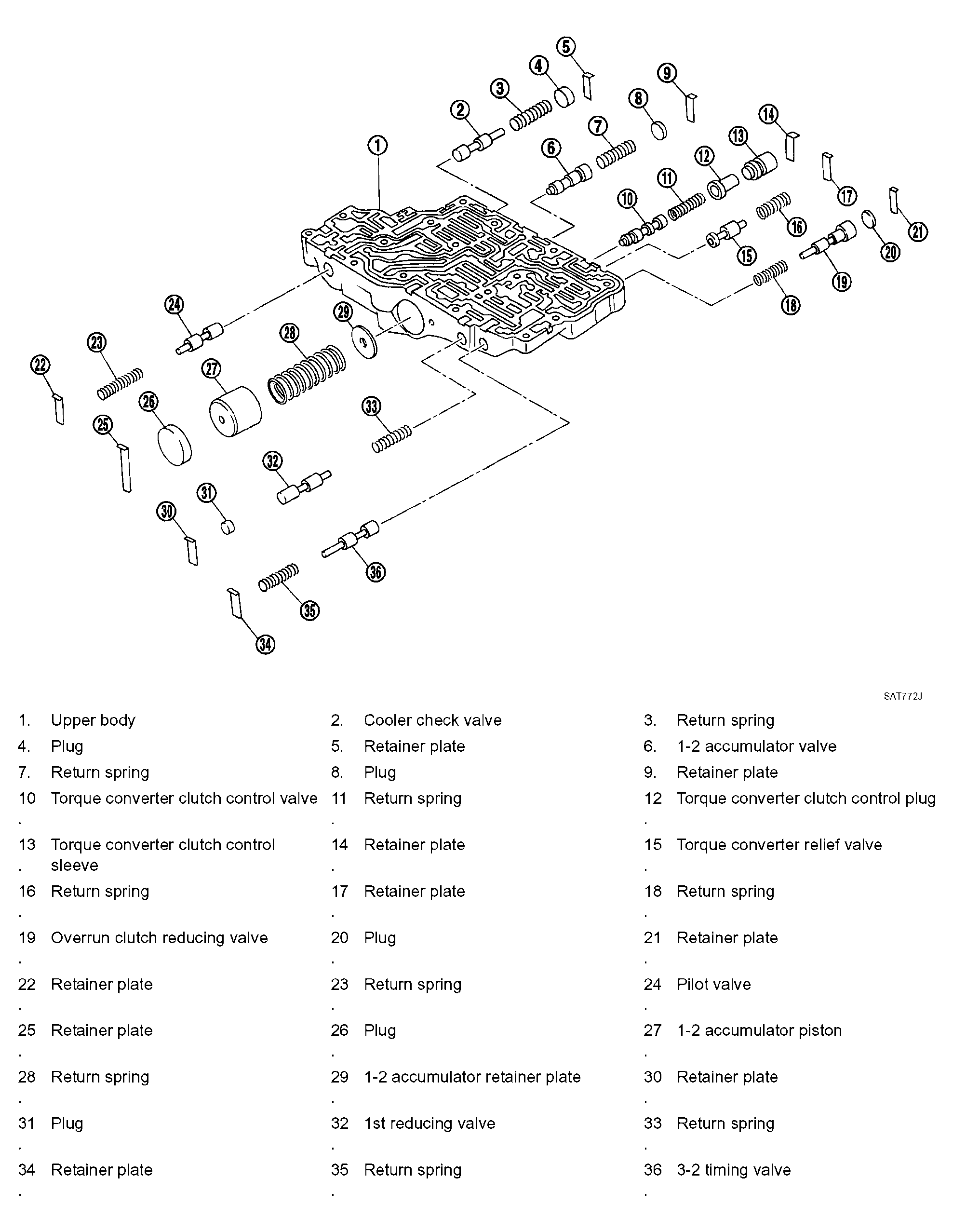

Fig 1: Exploded View Of Control Valve Upper Body

G04194173

Courtesy of NISSAN MOTOR CO., U.S.A.
