Automatic Transmission - Component Testing, Removal And Installation And Overhaul (Re4F04B): Overhaul: Components

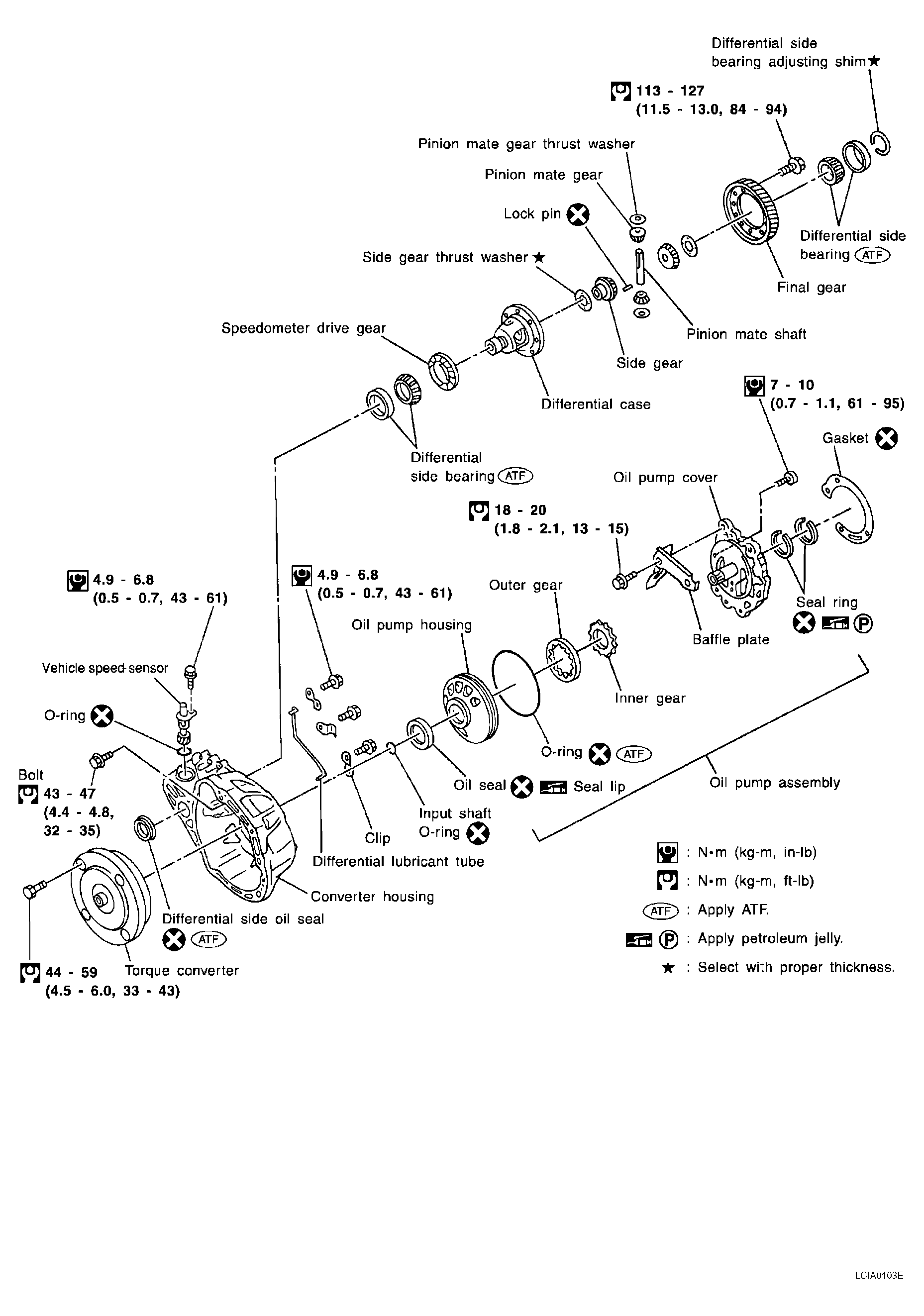

Fig 1: Exploded View Of A/T Components With Torque Specifications (1 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.

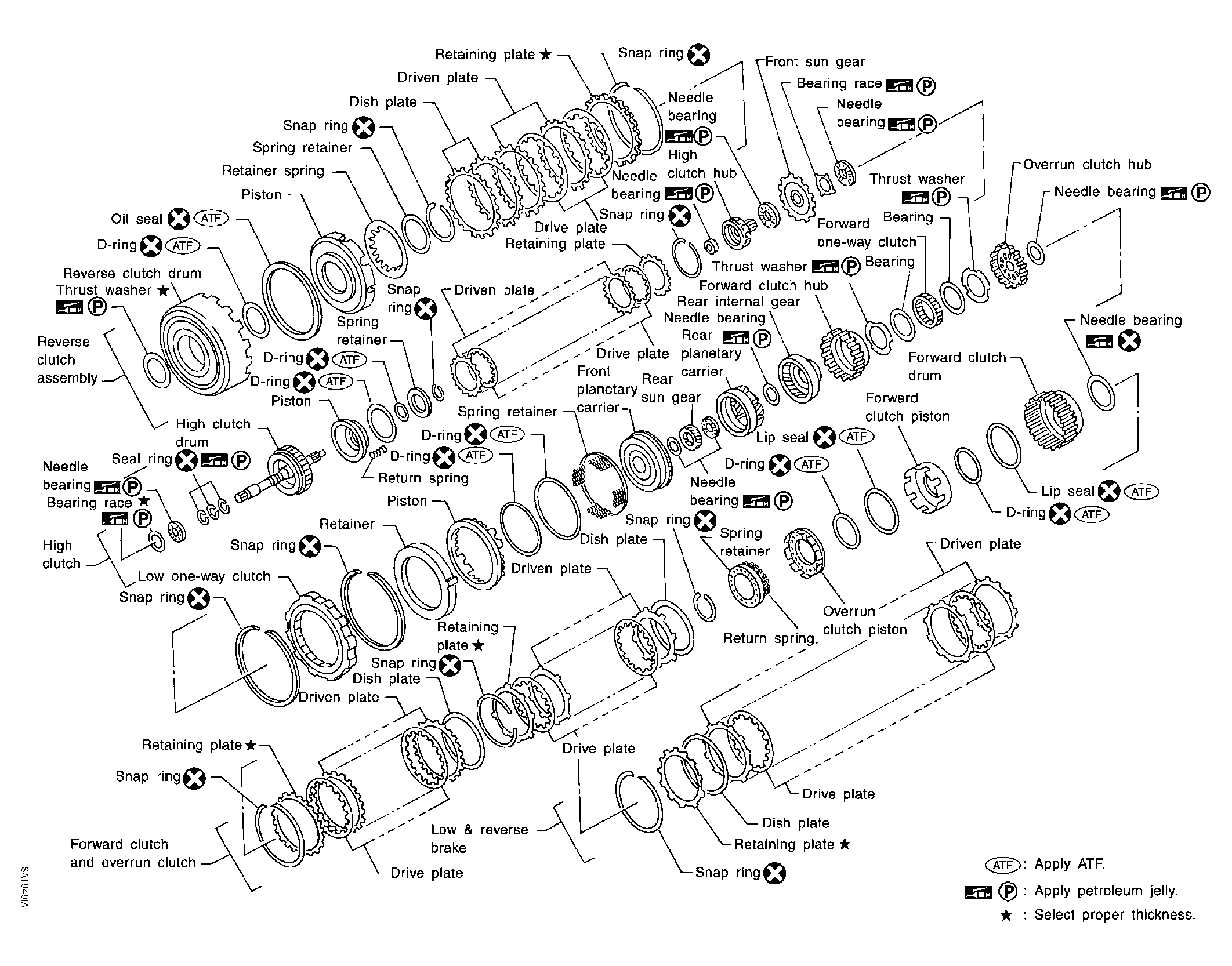

Fig 2: Exploded View Of A/T Components (2 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.

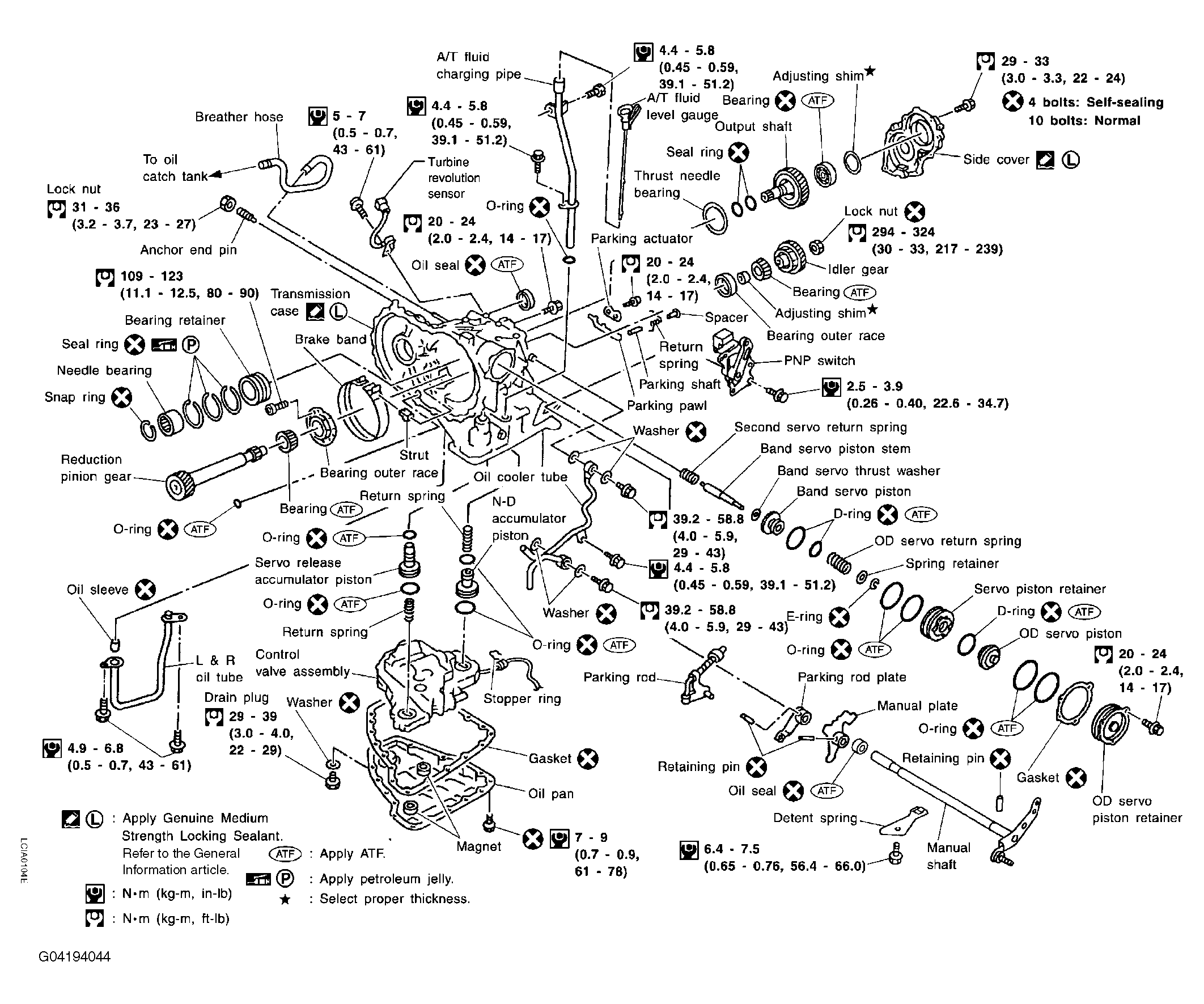

Fig 3: Exploded View Of A/T Components With Torque Specifications (3 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.
