Torsion Beam, Lateral Link And Control Rod: Assembly

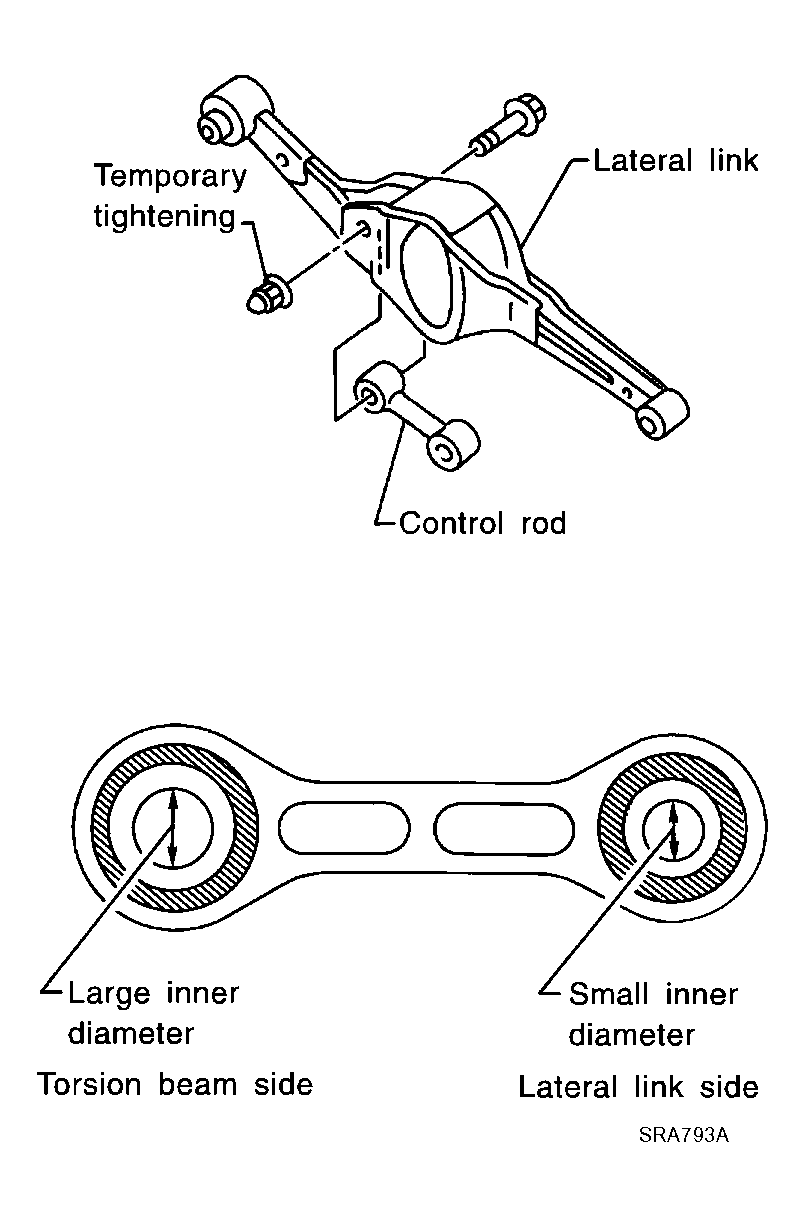

- Temporarily assemble lateral link and control rod.
- When installing the control rod, connect the bushing with the smaller inner diameter to the lateral link.
Courtesy of NISSAN MOTOR CO., U.S.A.
- Temporarily install lateral link and control rod on torsion beam.
- When installing, place lateral link with the arrow topside.
- Place lateral link and control rod horizontally against torsion beam, and tighten to the specified torque.
Courtesy of NISSAN MOTOR CO., U.S.A.
- Install torsion beam assembly. Refer to "INSTALLATION .
Courtesy of NISSAN MOTOR CO., U.S.A.
