Home >> Nissan-Datsun >> 2006 >> Sentra SE-R >> Repair and Diagnosis >> Steering >> Power Steering System >> Power Steering Gear And Linkage >> Removal and Installation >> Notes

Removal and Installation: Notes

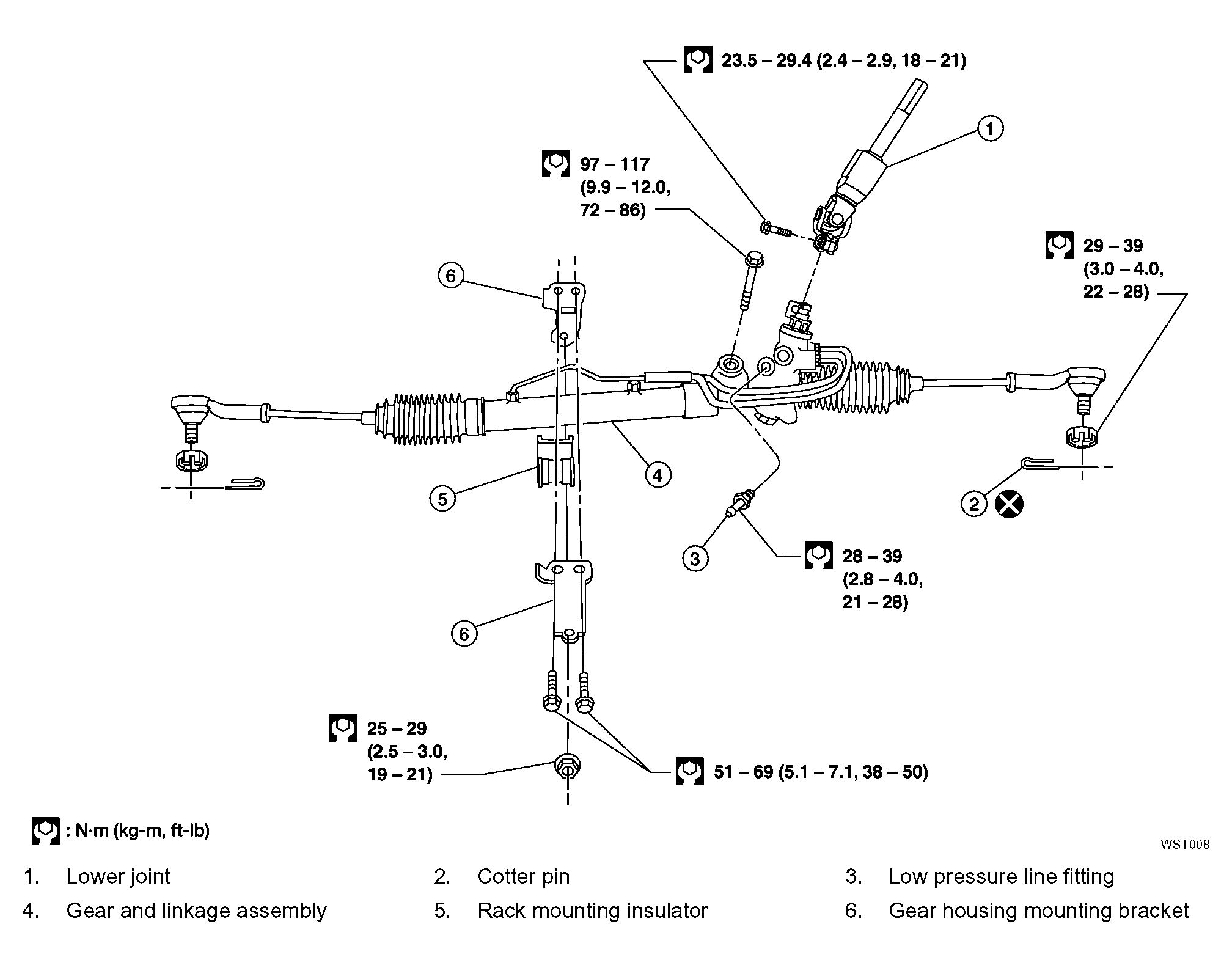

Fig 1: Exploded View Of Gear And Linkage Assembly With Torque Specifications

G04194773

Courtesy of NISSAN MOTOR CO., U.S.A.
