ECM Relay
WARNING: This page is about a different variant/trim than selected.

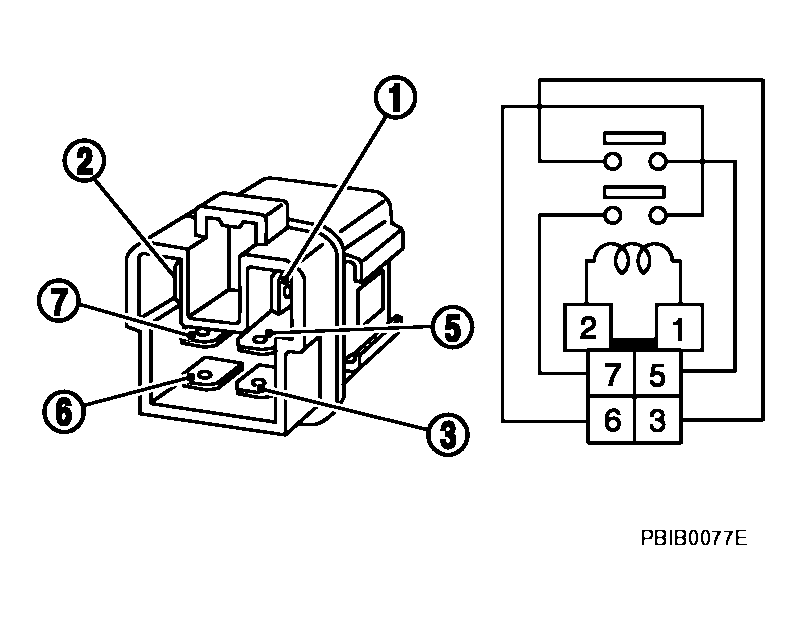

- Apply 12V direct current between ECM relay terminals 1 and 2.
- Check continuity between relay terminals 3 and 5, 6 and 7.
TERMINALS CONTINUITY REFERENCE
| Condition |
Continuity |
| 12V direct current supply between terminals 1 and 2 |
Yes |
| OFF |
No |
- If NG, replace ECM relay.
Courtesy of NISSAN MOTOR CO., U.S.A.
