Fuel Pump Relay

WARNING: This page is about a different variant/trim than selected.

Check continuity between terminals 3 and 5.

TERMINALS CONTINUITY REFERENCE

Condition	Continuity
12V direct current supply between terminals 1 and 2	Yes
No current supply	No

If NG, replace relay.

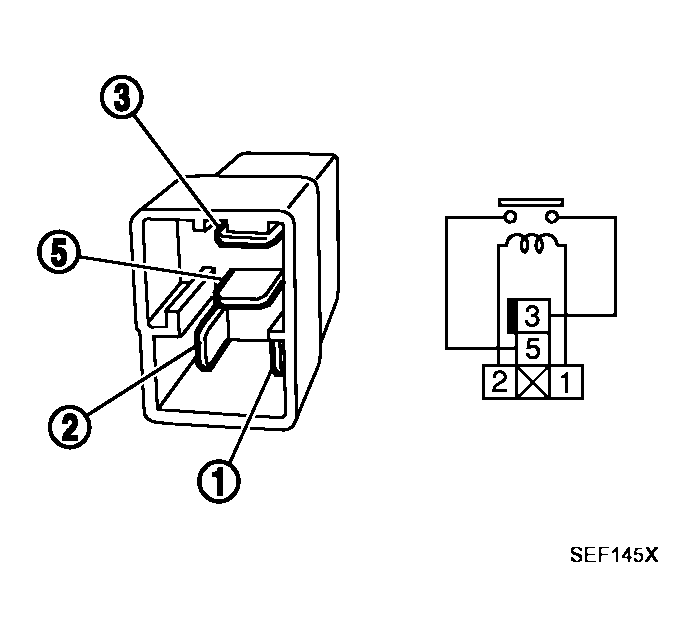

Fig 1: Identifying Fuel Pump Relay Terminals

Courtesy of NISSAN MOTOR CO., U.S.A.
