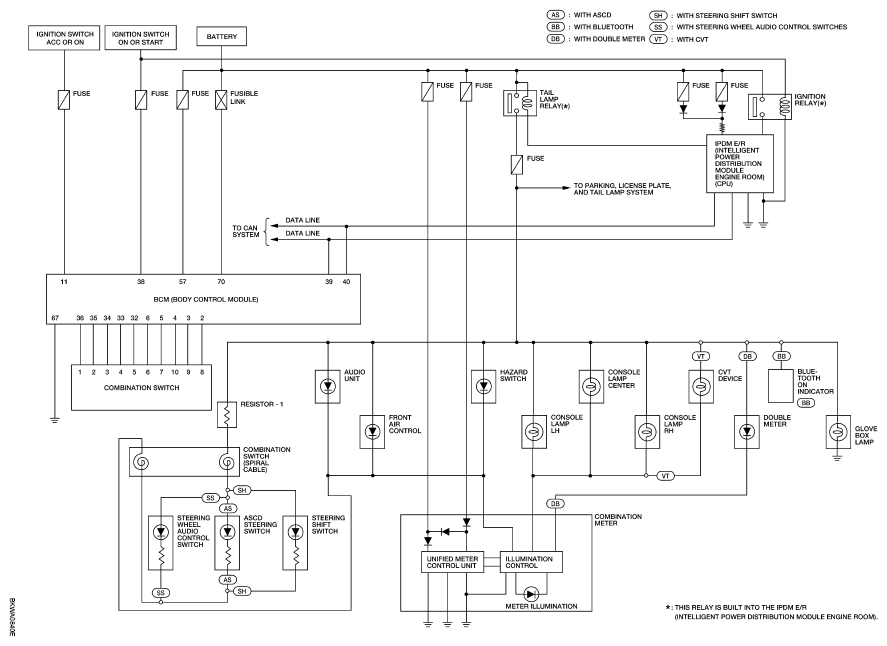

Section 66 (Lighting System): Illumination: Schematic

WARNING: This page is about a different car, the 2007 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.
