Body (Alignment): Alignment: Underbody

WARNING: This page is about a different car, the 2005 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.

Measurement

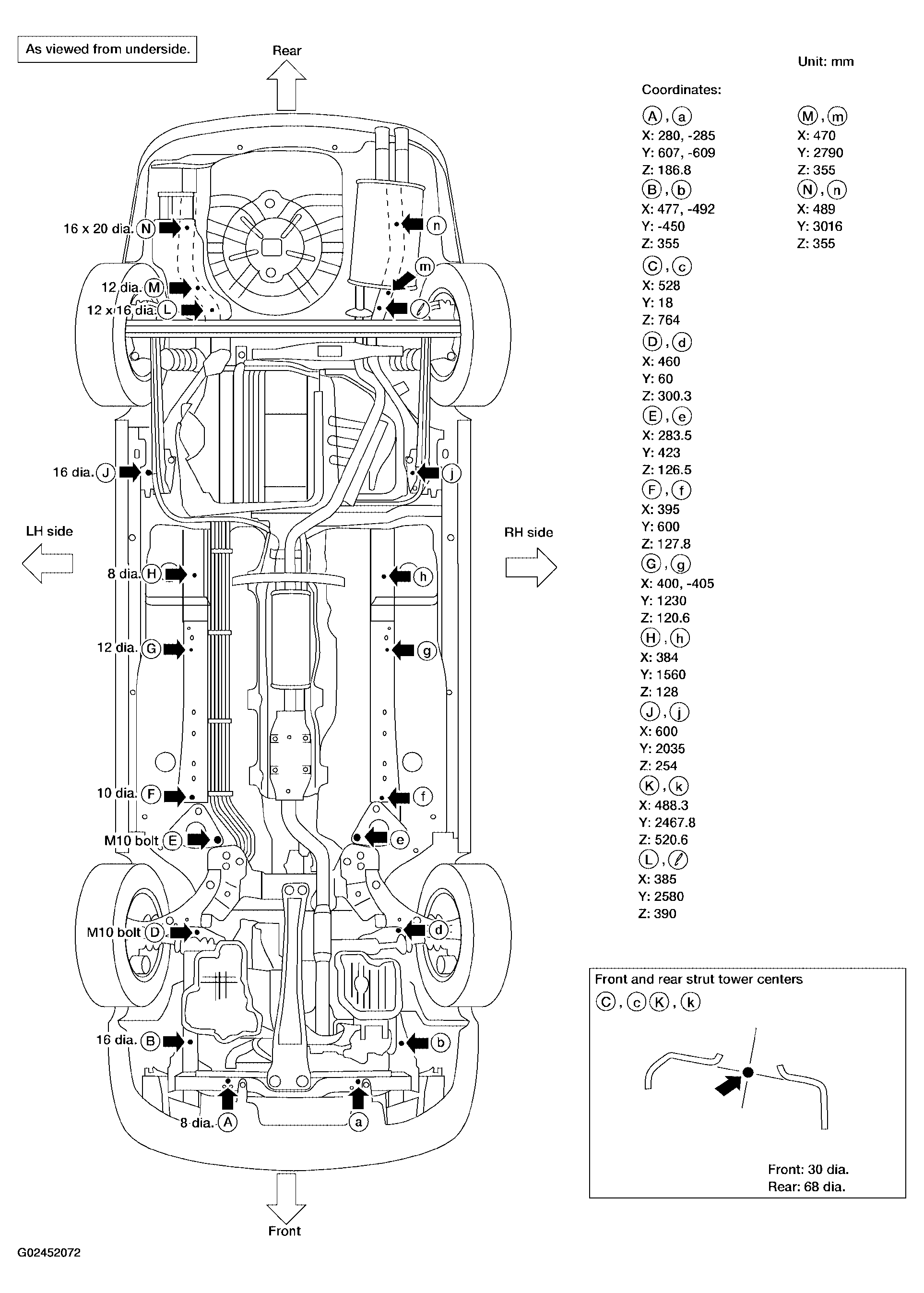

Fig 1: Underbody Measurement
G02452072Courtesy of NISSAN MOTOR CO., U.S.A.
