Removal and Installation

WARNING: This page is about a different car, the 2005 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.

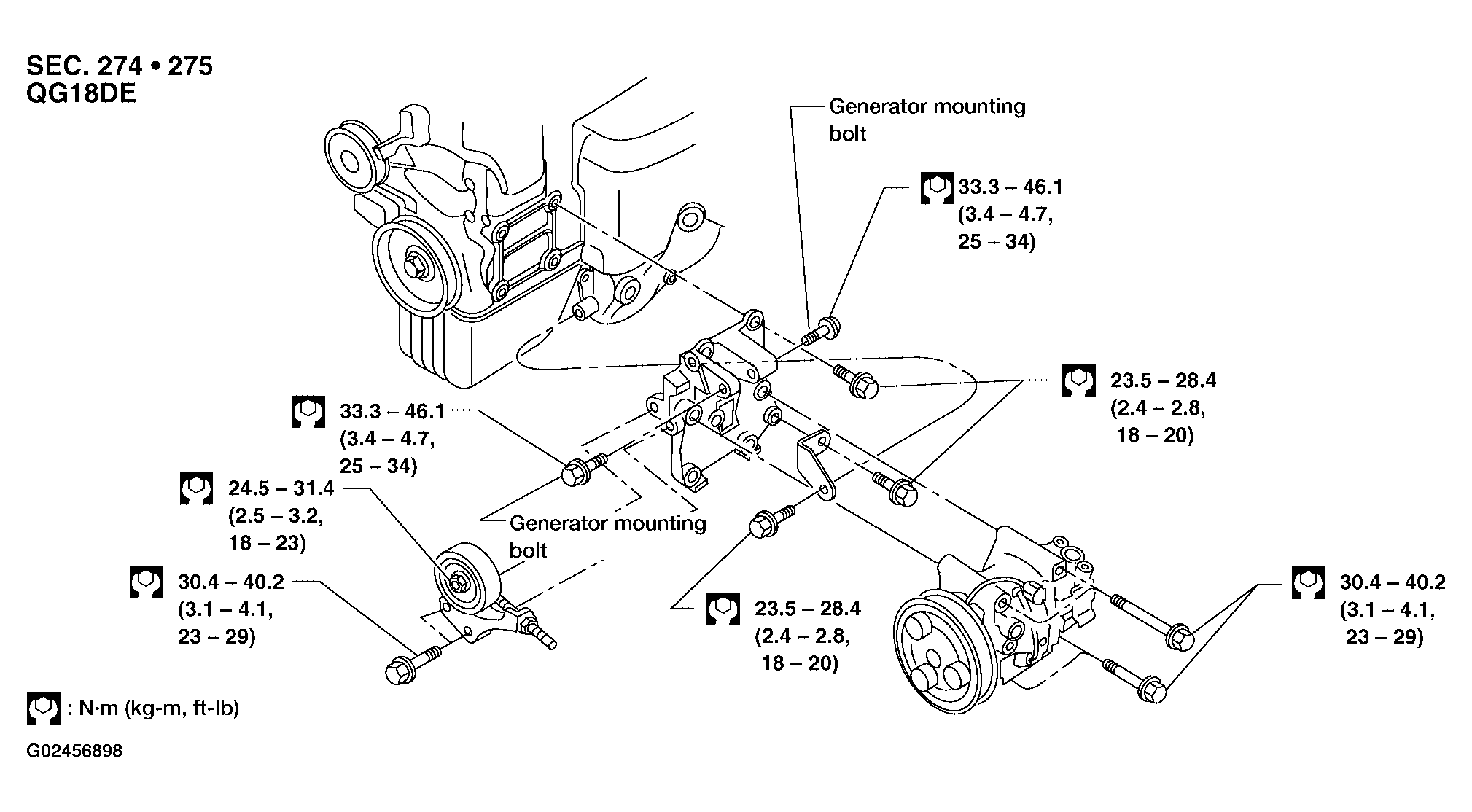

Fig 1: Removing Compressor - QG18DE With Torque Specifications
G02456898Courtesy of NISSAN MOTOR CO., U.S.A.

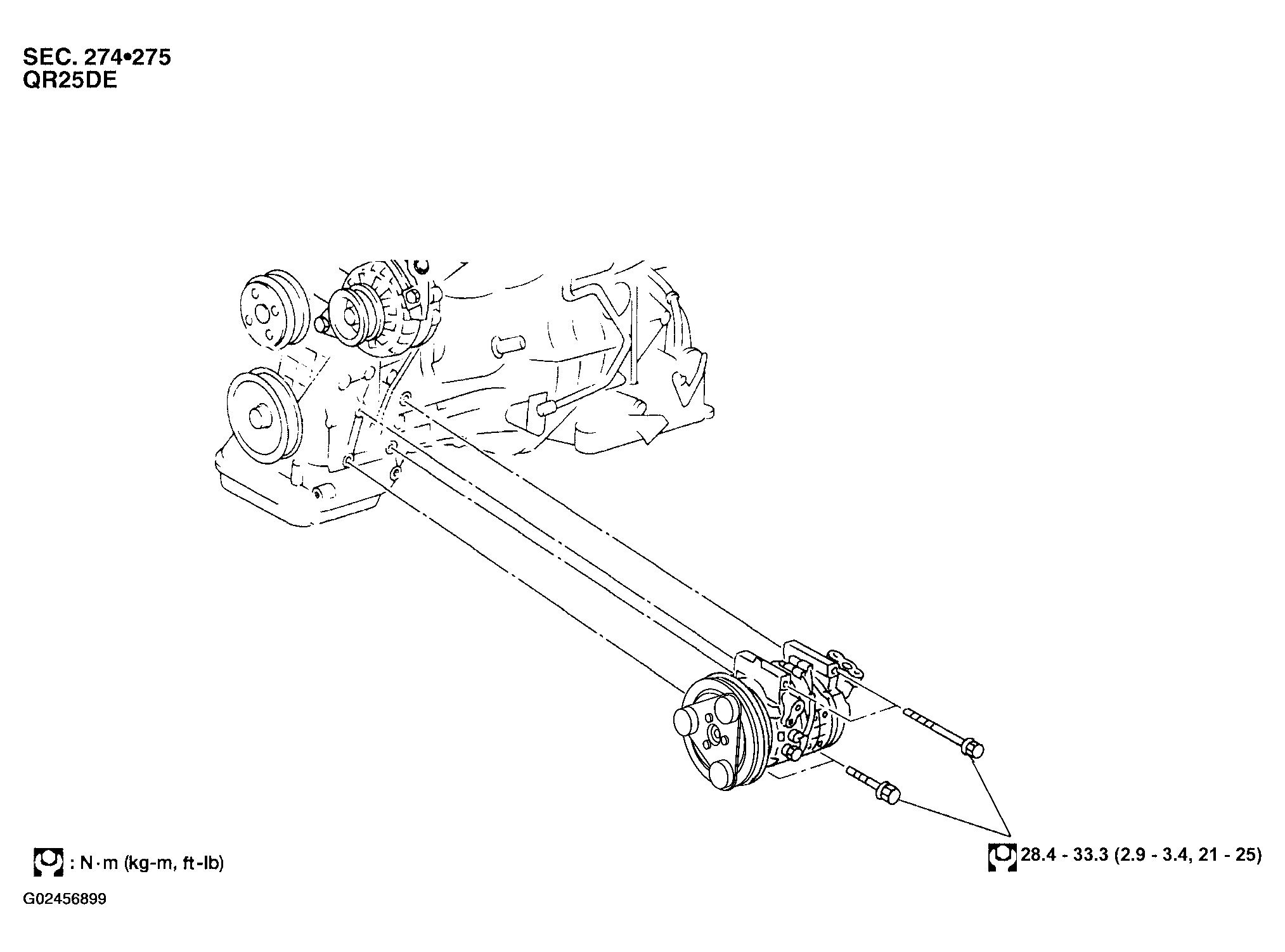

Fig 2: Removing Compressor - QR25DE With Torque Specifications
G02456899Courtesy of NISSAN MOTOR CO., U.S.A.
