Disassembly and Assembly: Notes

WARNING: This page is about a different car, the 2005 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.

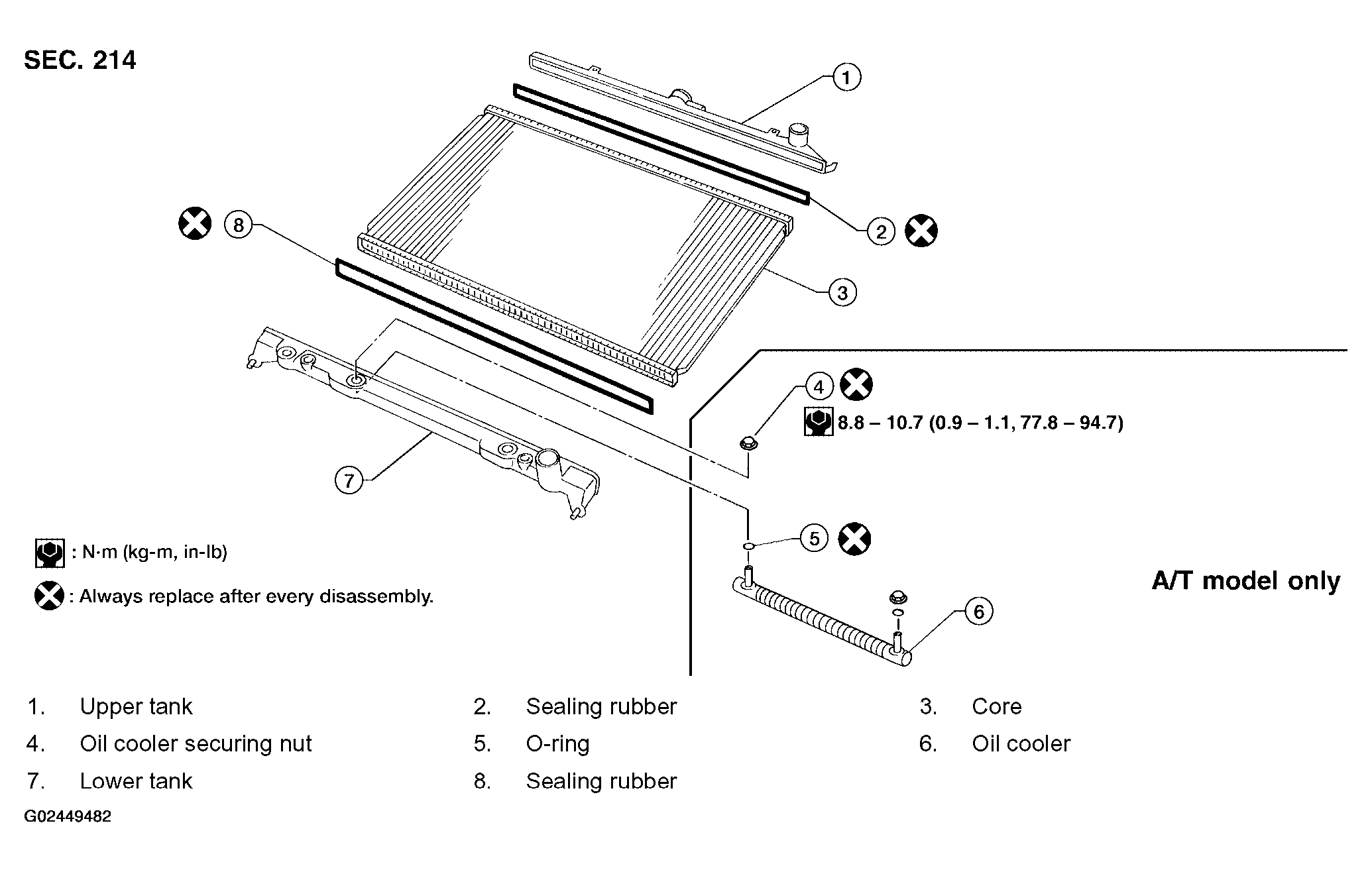

Fig 1: Installing Radiator (QG18DE Engine, With Torque Specifications)
G02449482Courtesy of NISSAN MOTOR CO., U.S.A.
