With CONSULT-II

Selecting "SRT STATUS" in "DTC CONFIRMATION" mode with CONSULT-II.

For items whose SRT codes are set, a "CMPLT" is displayed on the CONSULT-II screen; for items whose SRT codes are not set, "INCMP" is displayed.

A sample of CONSULT-II display for SRT code is shown at right.

"INCMP" means the self-diagnosis is incomplete and SRT is not set.

"CMPLT" means the self-diagnosis is complete and SRT is set.

NOTE: Though displayed on the CONSULT-II screen, "HO2S HTR" is not SRT item.

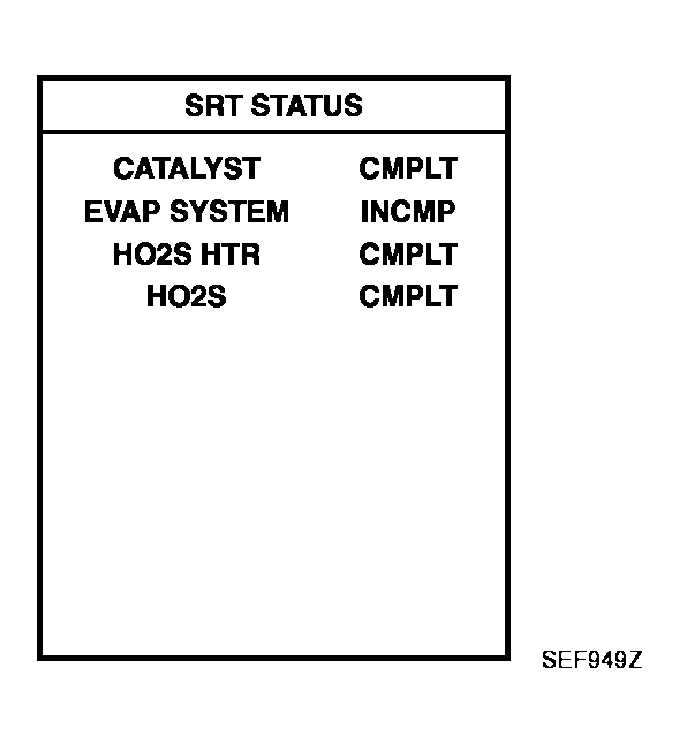

Fig 1: CONSULT-II Screen Display - SRT STATUS
G04191567Courtesy of NISSAN MOTOR CO., U.S.A.
