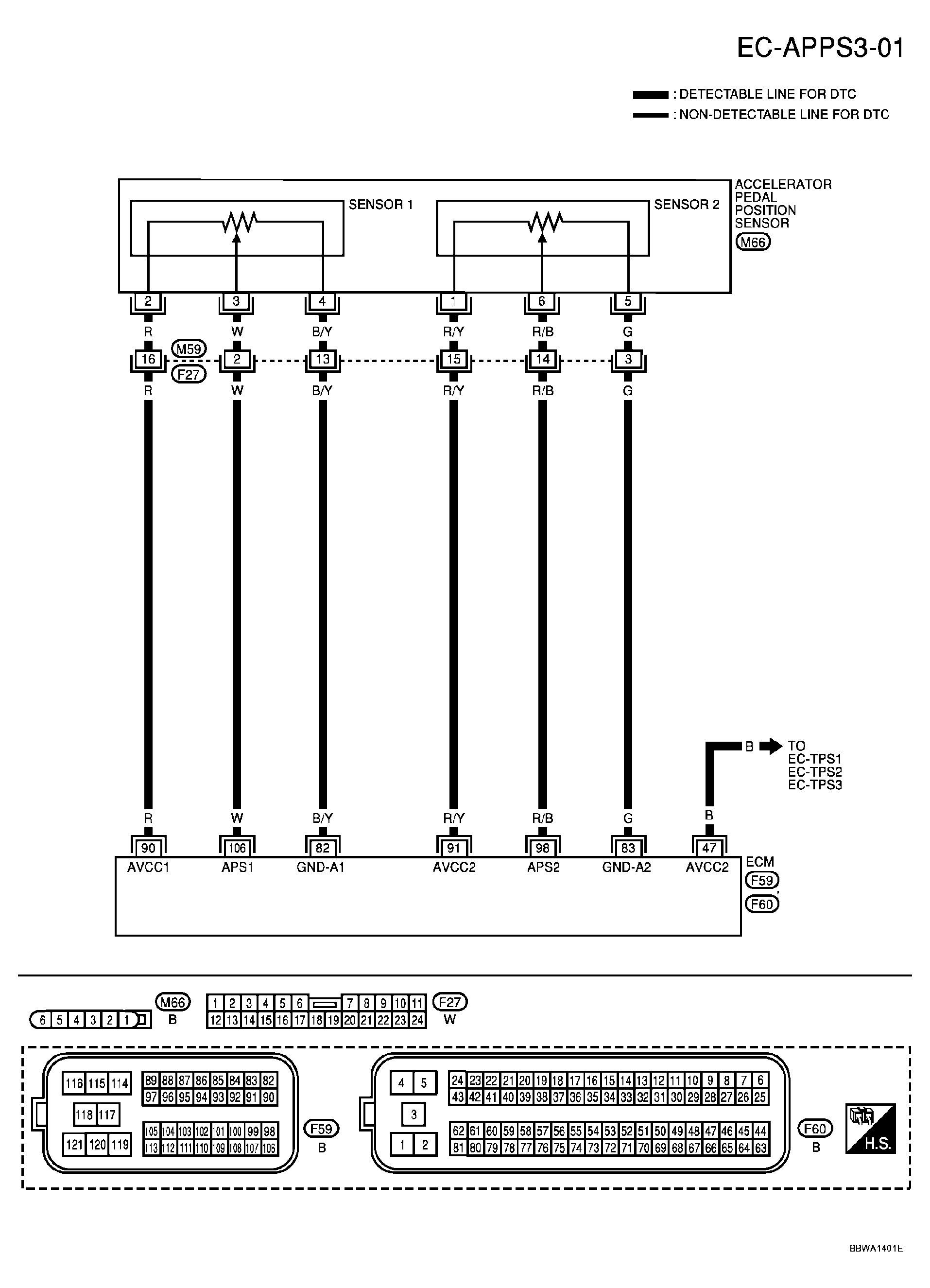

DTC P2138 App Sensor: Wiring Diagram
Specification data are reference values and are measured between each terminal and ground.
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in damage to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.
WIRE COLOR AND TERMINAL NO. DESCRIPTION
| TERMINAL NO. | WIRE COLOR | ITEM | CONDITION | DATA (DC Voltage) |
|---|---|---|---|---|
| 47 | B | Sensor power supply (Throttle position sensor) |
[Ignition switch: ON] | Approximately 5V |
| 82 | B/Y | Sensor ground (Accelerator pedal position sensor 1) |
[Engine is running]
|
Approximately 0V |
| 83 | G | Sensor ground (Accelerator pedal position sensor 2) |
[Engine is running]
|
Approximately 0V |
| 90 | R | Sensor power supply (Accelerator pedal position sensor 1) |
[Ignition switch: ON] | Approximately 5V |
| 91 | R/Y | Sensor power supply (Accelerator pedal position sensor 2) |
[Ignition switch: ON] | Approximately 5V |
| 98 | R/B | Accelerator pedal position sensor 2 | [Ignition switch: ON]
|
0.28 - 0.48V |
[Ignition switch: ON]
|
More than 2.0V | |||
| 106 | W | Accelerator pedal position sensor 1 | [Ignition switch: ON]
|
0.65 - 0.87V |
[Ignition switch: ON]
|
More than 4.3V |
