Removal and Installation: Notes

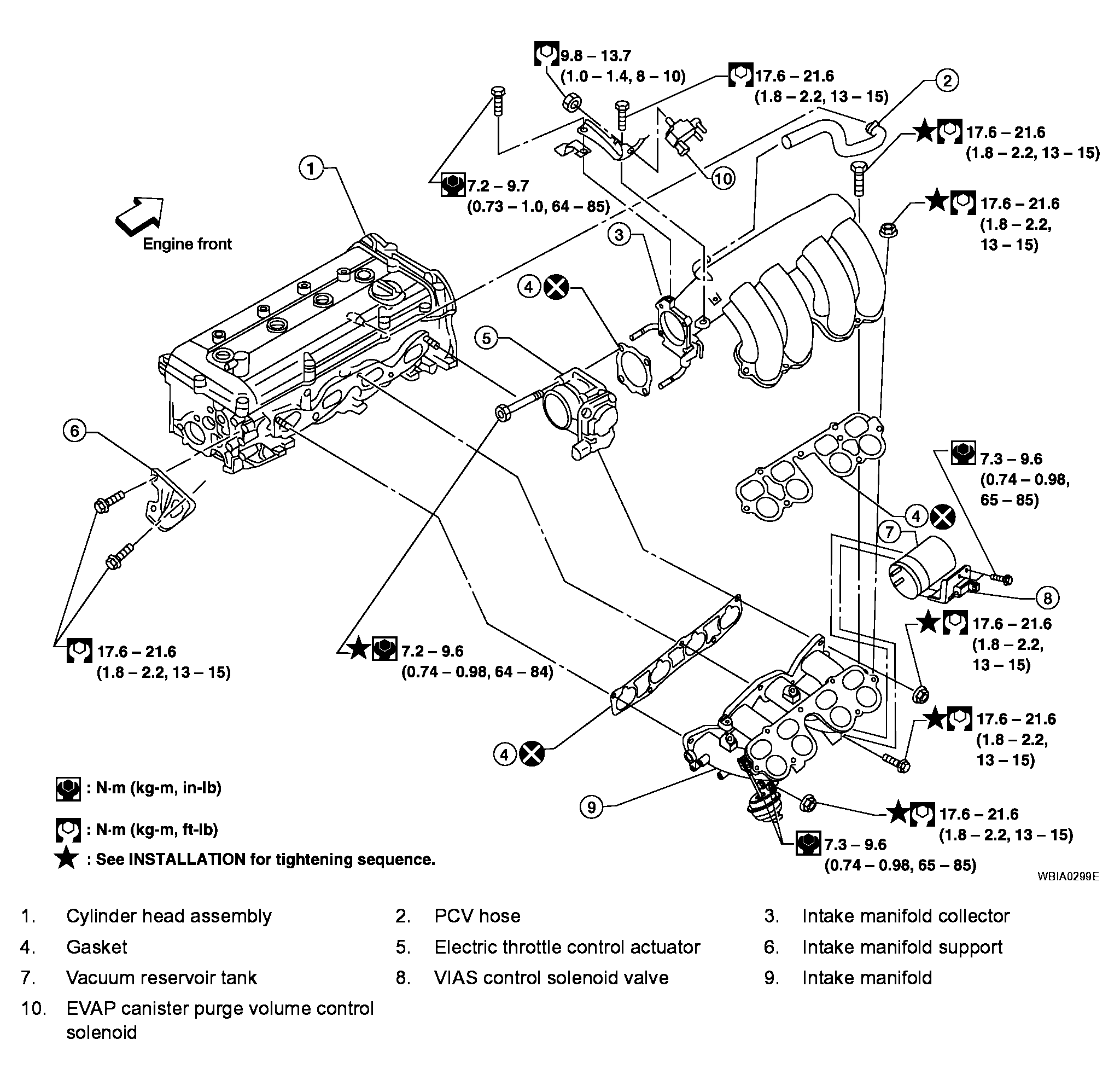

Fig 1: Removing/Installing Intake Manifold With Torque Specifications

G04190388

Courtesy of NISSAN MOTOR CO., U.S.A.
