Home >> Nissan-Datsun >> 2006 >> Sentra SE-R >> Repair and Diagnosis >> Engine Mechanical >> Engine Lubrication System (Qr25DE) >> Oil Pump >> Disassembly and Assembly >> Notes

Disassembly and Assembly: Notes

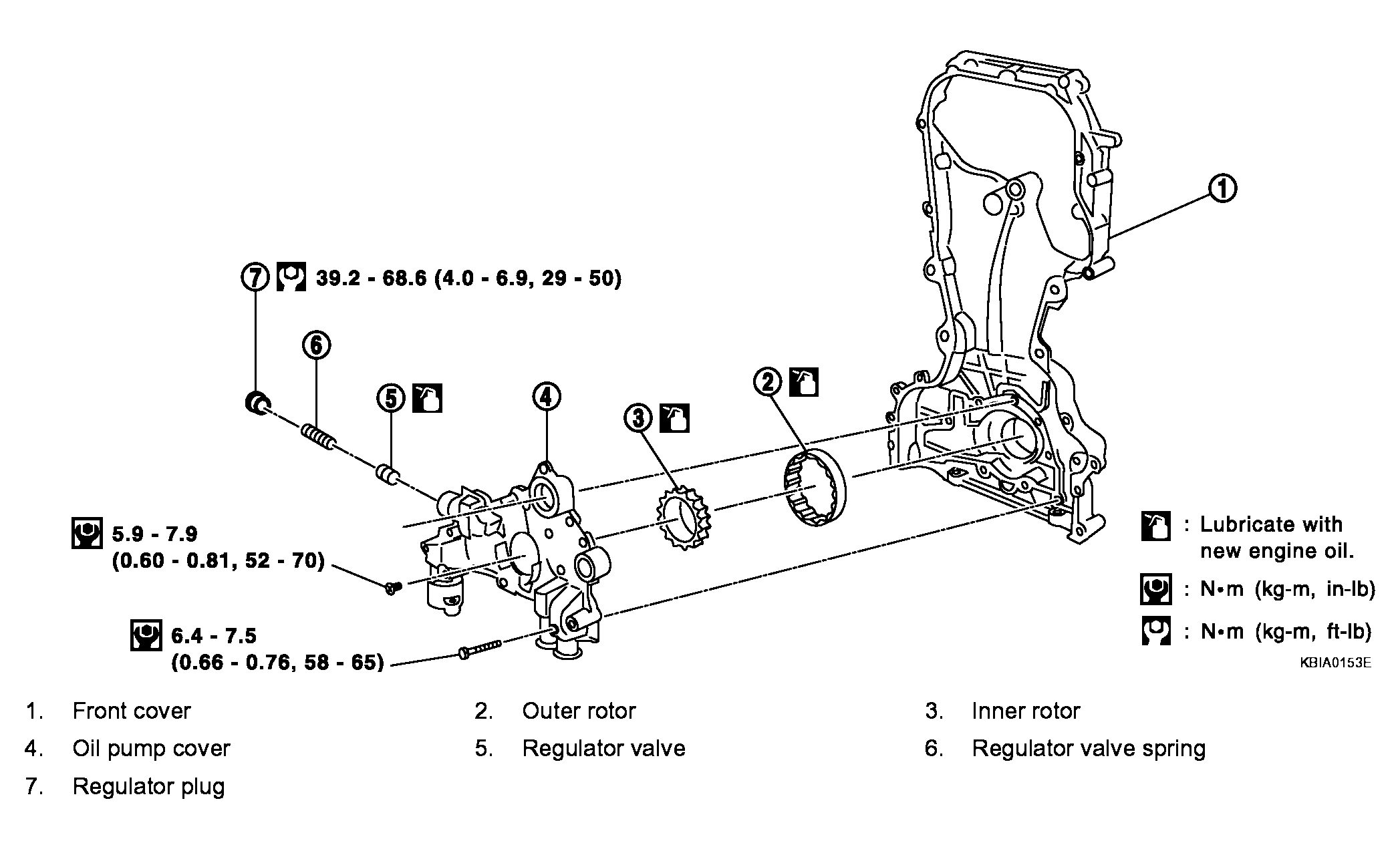

Fig 1: Oil Pump Replacement Components With Torque Specifications
G04190651Courtesy of NISSAN MOTOR CO., U.S.A.
CAUTION: Before installation, apply new engine oil to the parts as instructed in the figure.
