Without Tachometer
Without Tachometer

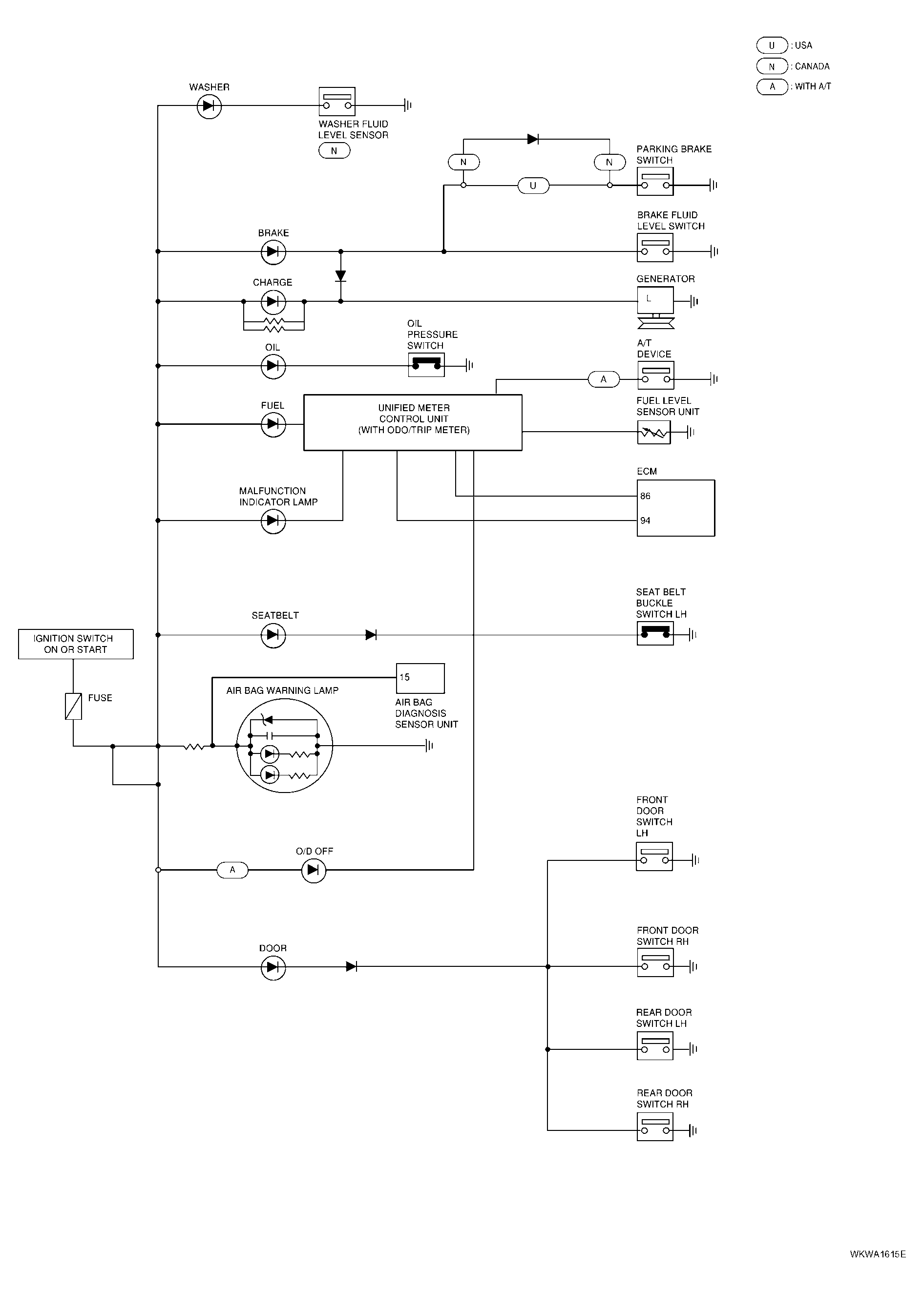

Fig 1: Warning Lamps - Diagram (Without Tachometer)
Courtesy of NISSAN MOTOR CO., U.S.A.
