Schematic
>>
With Tachometer
With Tachometer

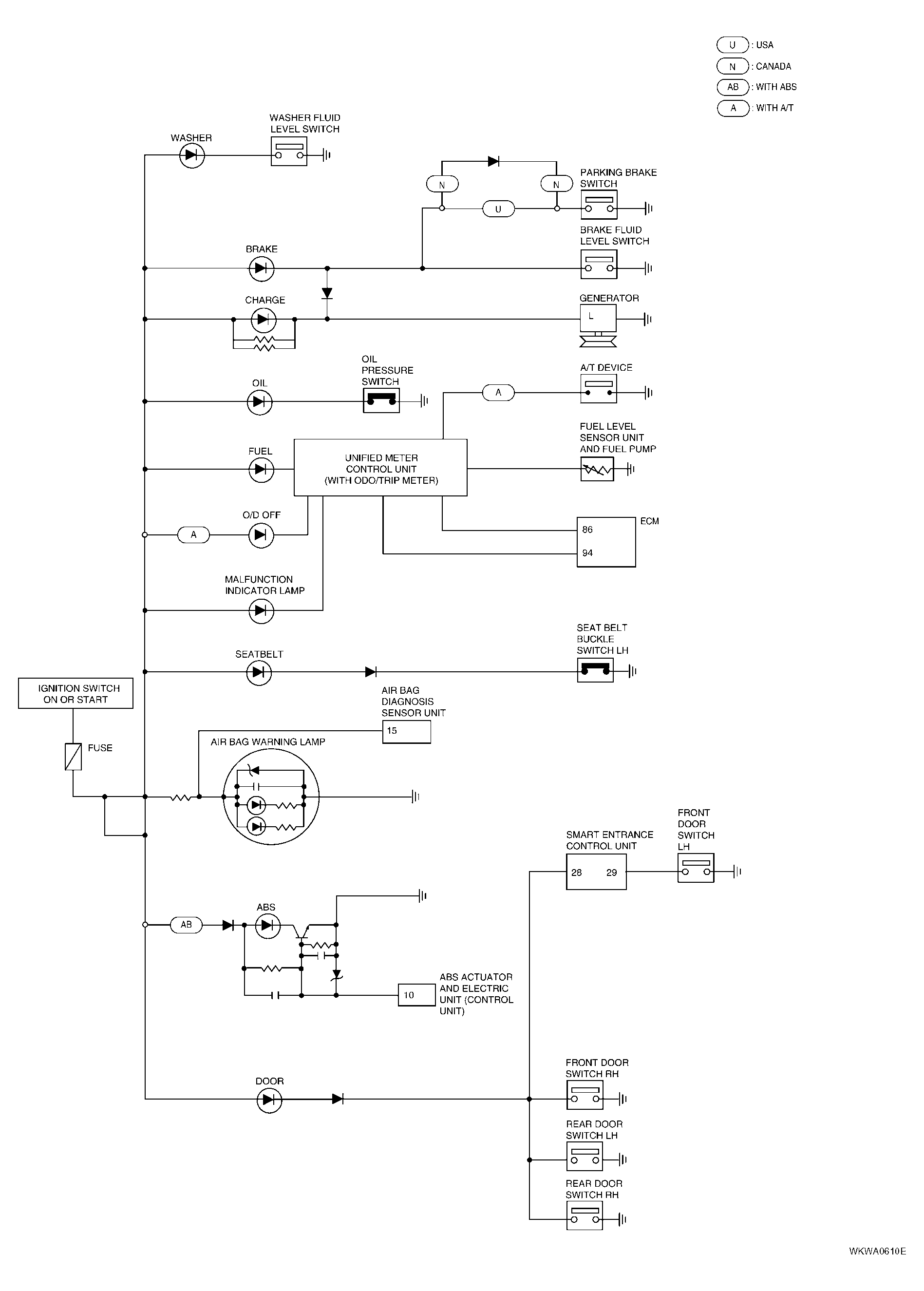

Fig 1: Warning Lamps - Diagram (With Tachometer)
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
