Wiring Diagram - B/COMP -

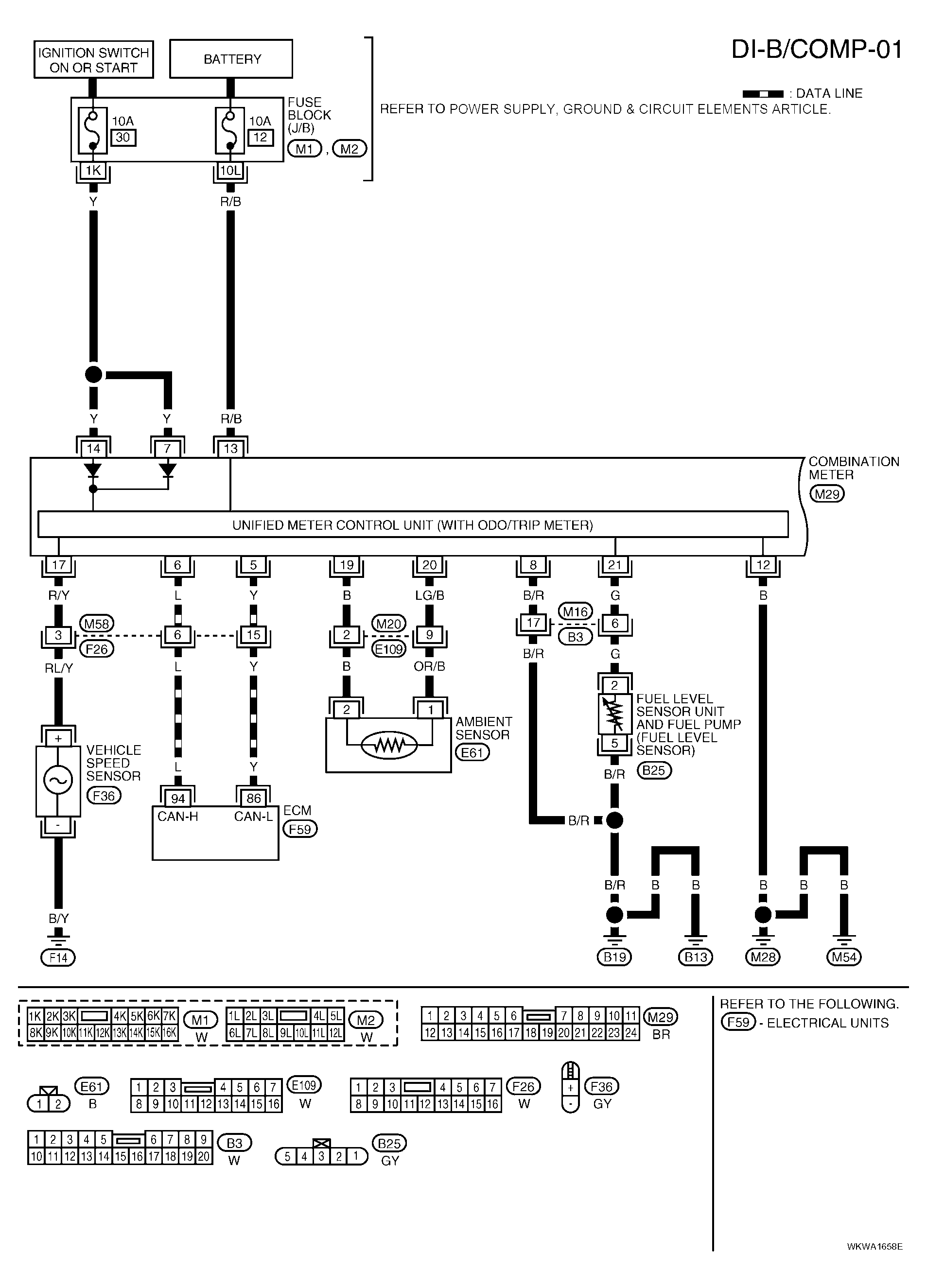

Fig 1: DI-B/COMP-01 - Wiring Diagram

G04195493

Courtesy of NISSAN MOTOR CO., U.S.A.
