Work Flow

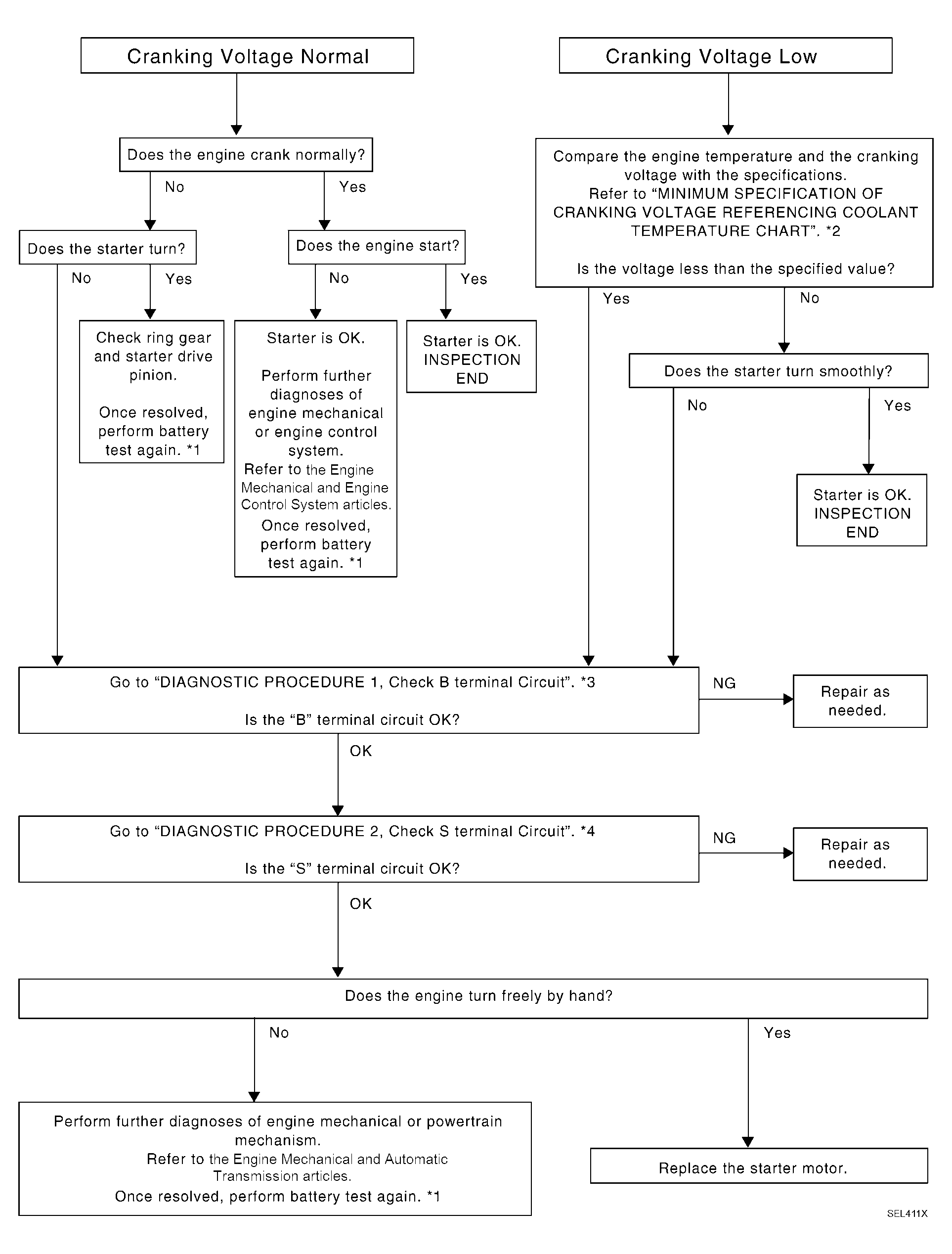

Fig 1: Work Flow Diagram
G04195315Courtesy of NISSAN MOTOR CO., U.S.A.
*1. Trouble Diagnoses with Battery/Starting/Charging System Tester
*2. MINIMUM SPECIFICATION OF CRANKING VOLTAGE REFERENCING COOLANT TEMPERATURE
*3. DIAGNOSTIC PROCEDURE 1
*4. DIAGNOSTIC PROCEDURE 2
