Trouble Diagnoses with Battery/Starting/Charging System Tester
>>
Work Flow
Work Flow

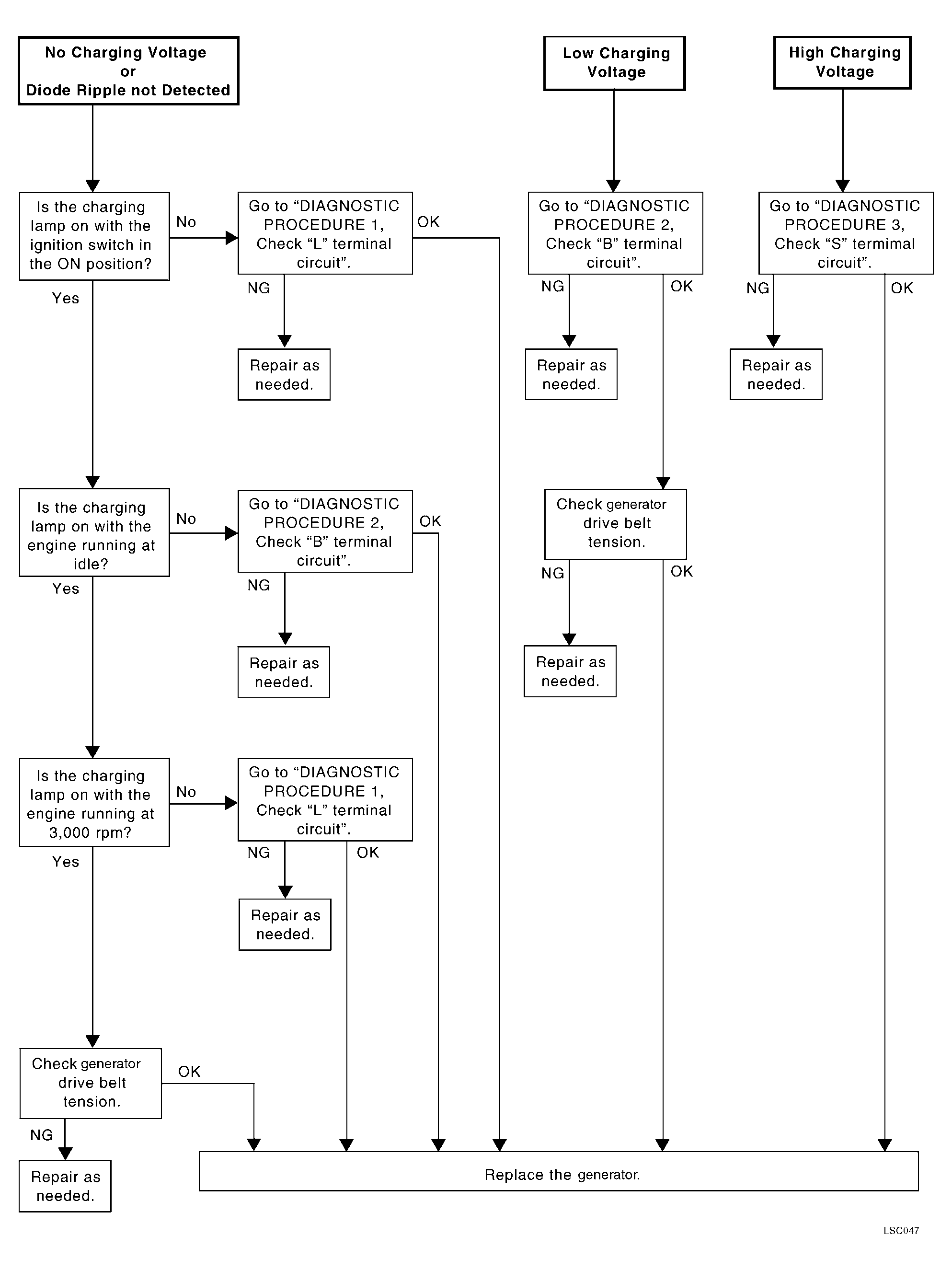

Fig 1: Work Flow Chart
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
