Removal and Installation: QG18DE: Installation

To install, reverse the removal procedure.

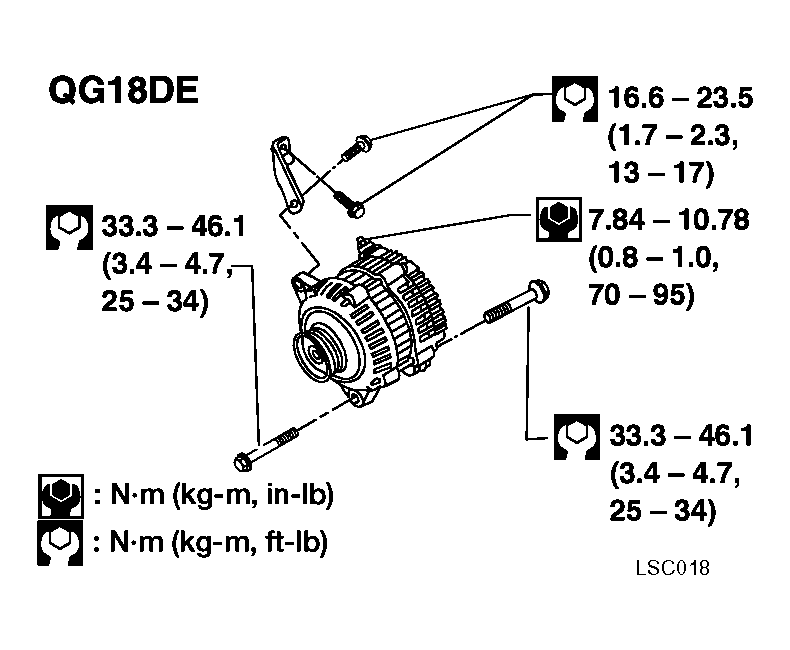

Fig 1: Generator Replacement Components With Torque Specifications (QG18DE)

G04195345

Courtesy of NISSAN MOTOR CO., U.S.A.
