Home >> Nissan-Datsun >> 2006 >> Sentra SE-R >> Repair and Diagnosis >> Drivelines & Axles >> Wheel Hubs >> Front Axle >> Wheel Hub And Knuckle >> Components

Wheel Hub And Knuckle: Components

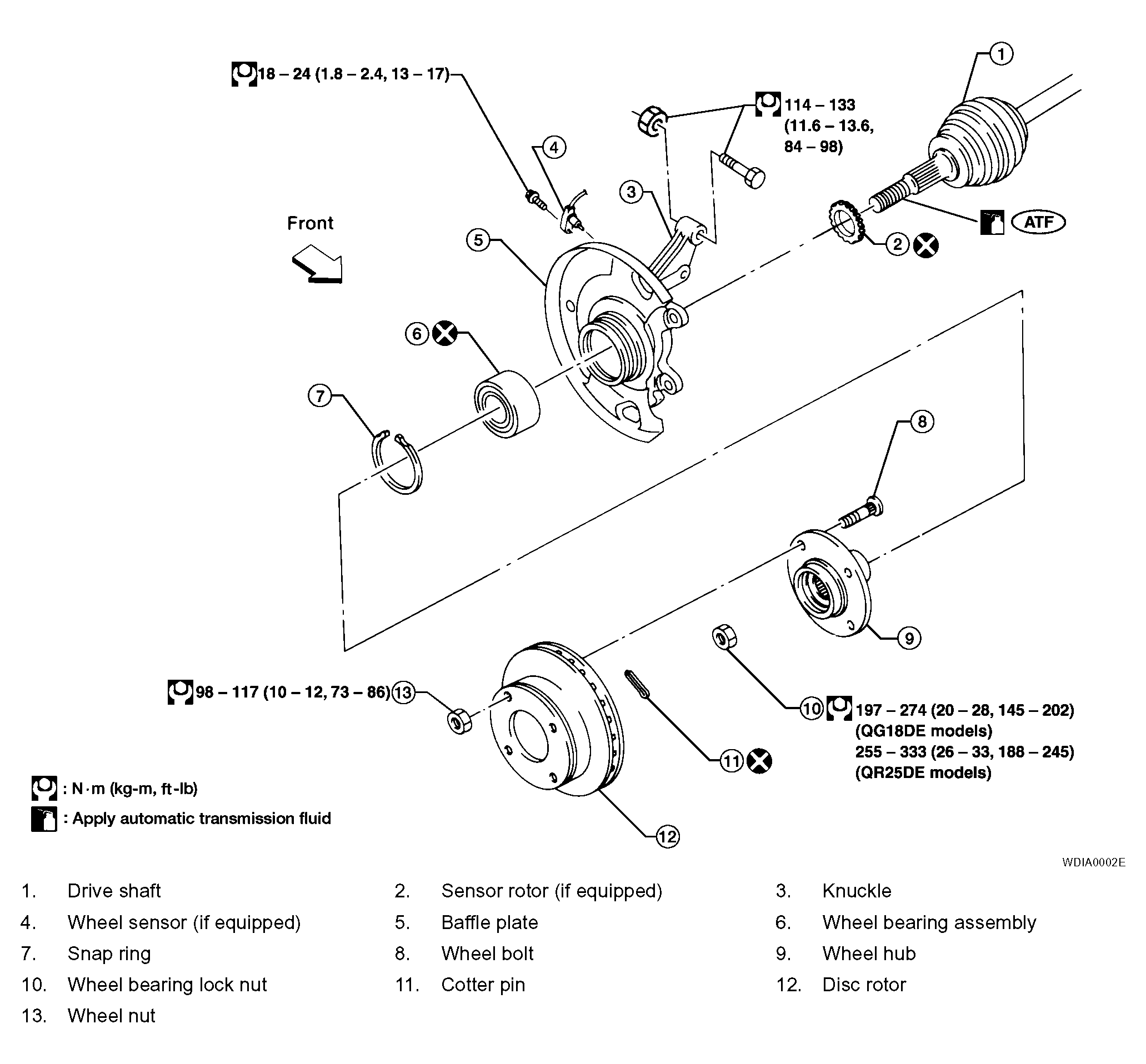

Fig 1: Wheel Hub And Knuckle Replacement Components With Torque Specifications

G04194426

Courtesy of NISSAN MOTOR CO., U.S.A.
