Front Wheel Bearing

• Rotate wheel hub to check that wheel bearings operate smoothly.
• Check axial end play.

  Axial end play: 0.05 mm (0.0020 in) or less

If out of specification or wheel bearing does not turn smoothly, replace wheel bearing assembly.

Refer to "WHEEL HUB AND KNUCKLE ".

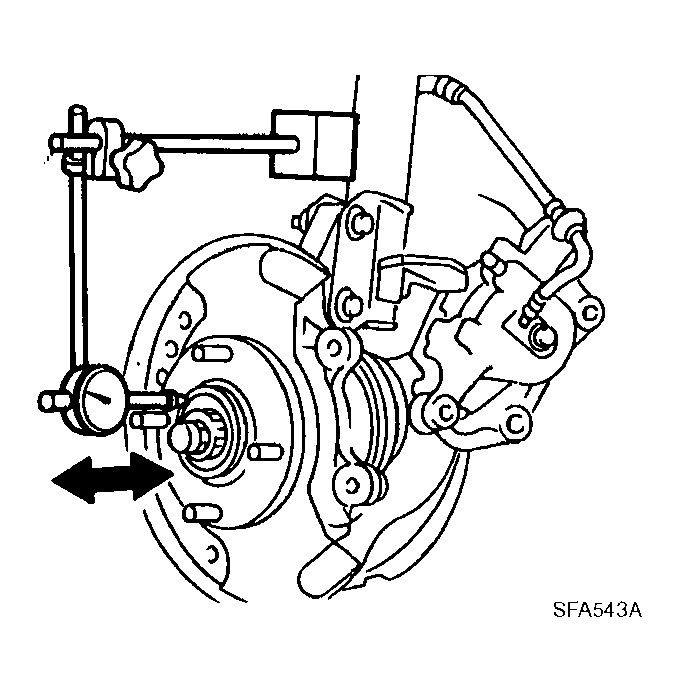

Fig 1: Checking Axial End Play

Courtesy of NISSAN MOTOR CO., U.S.A.
