Removal and Installation

  1. Remove center console. Refer to "REMOVAL AND INSTALLATION ".
  2. Disconnect the parking brake front cable.
  3. Remove the control lever.
  4. Remove bolts, slacken and remove the front cable.
  5. Remove lock plate and disconnect cable.
  6. Remove the rear cables.
  7. Installation is in the reverse order of removal.
    CAUTION: Do not reuse the self-locking control lever nut.

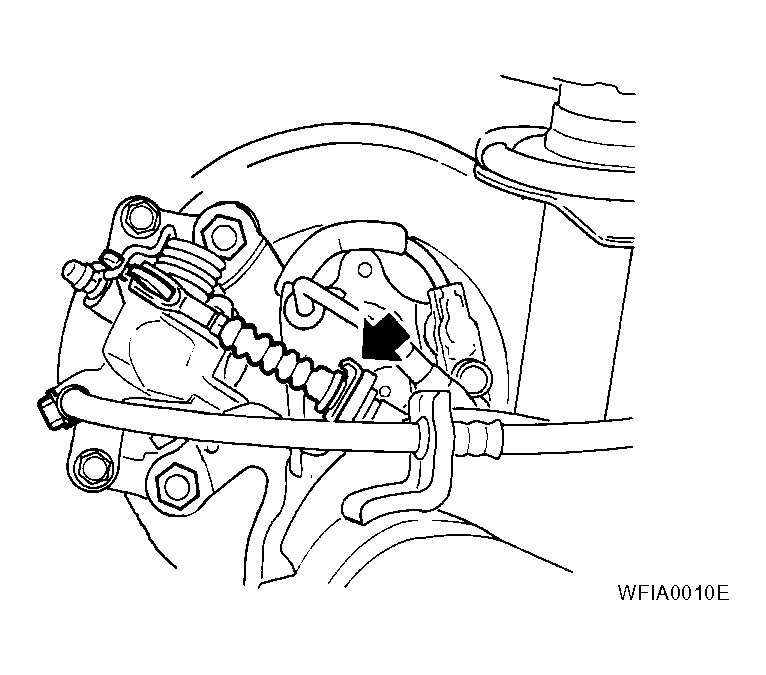

    Fig 1: Locating Parking Brake Front Cable
    G04194663Courtesy of NISSAN MOTOR CO., U.S.A.
