Power Door Lock: Schematic

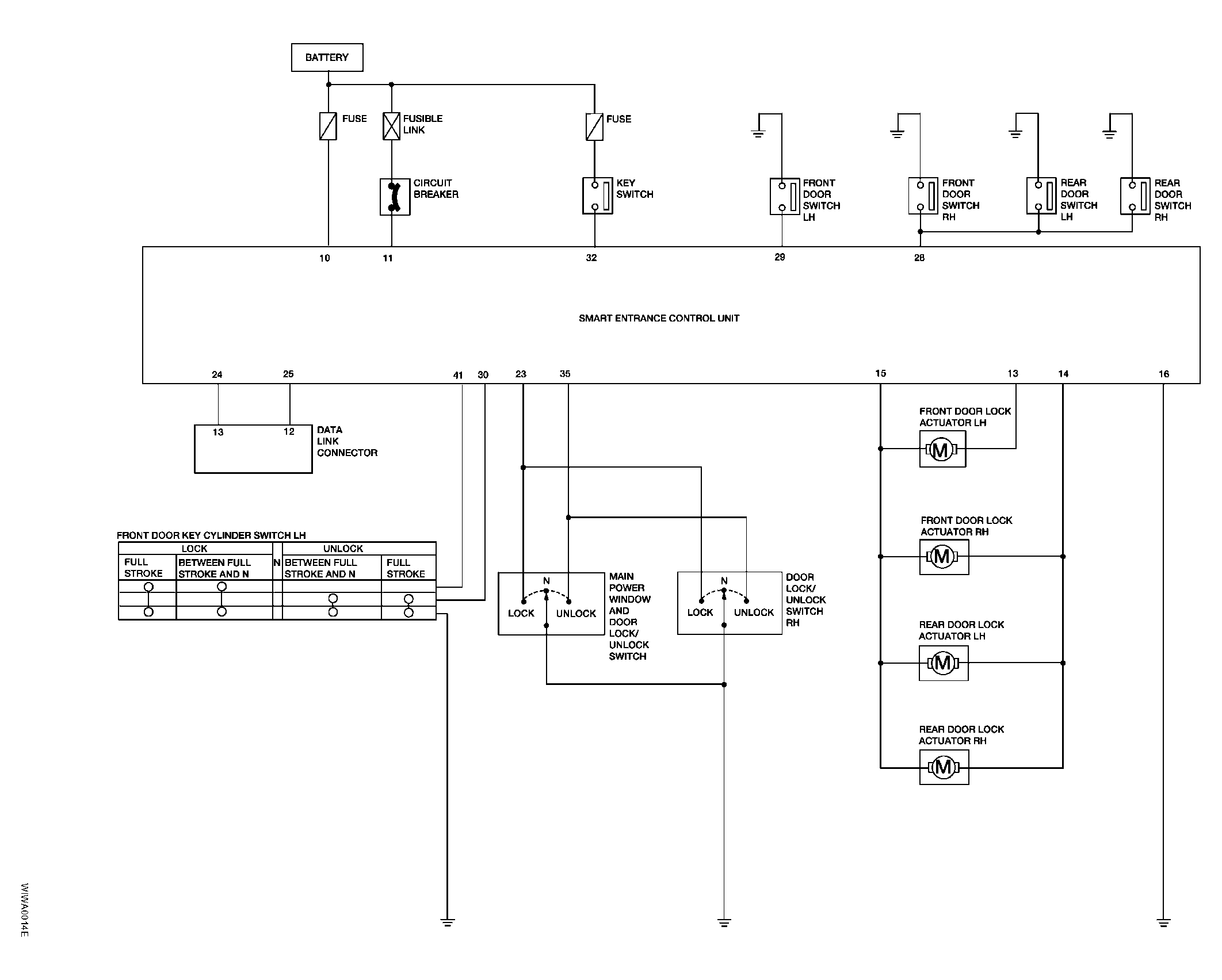

Fig 1: Power Door Lock Schematic Diagram

G04194902

Courtesy of NISSAN MOTOR CO., U.S.A.
