Control Valve Assembly: Disassembly
Disassemble upper, inter and lower bodies.

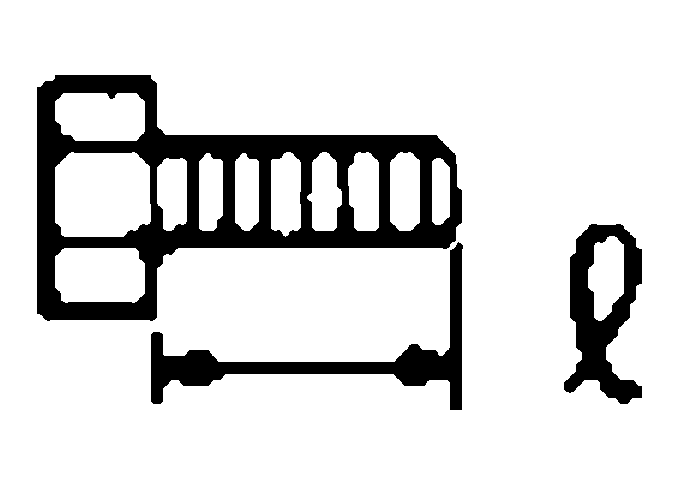

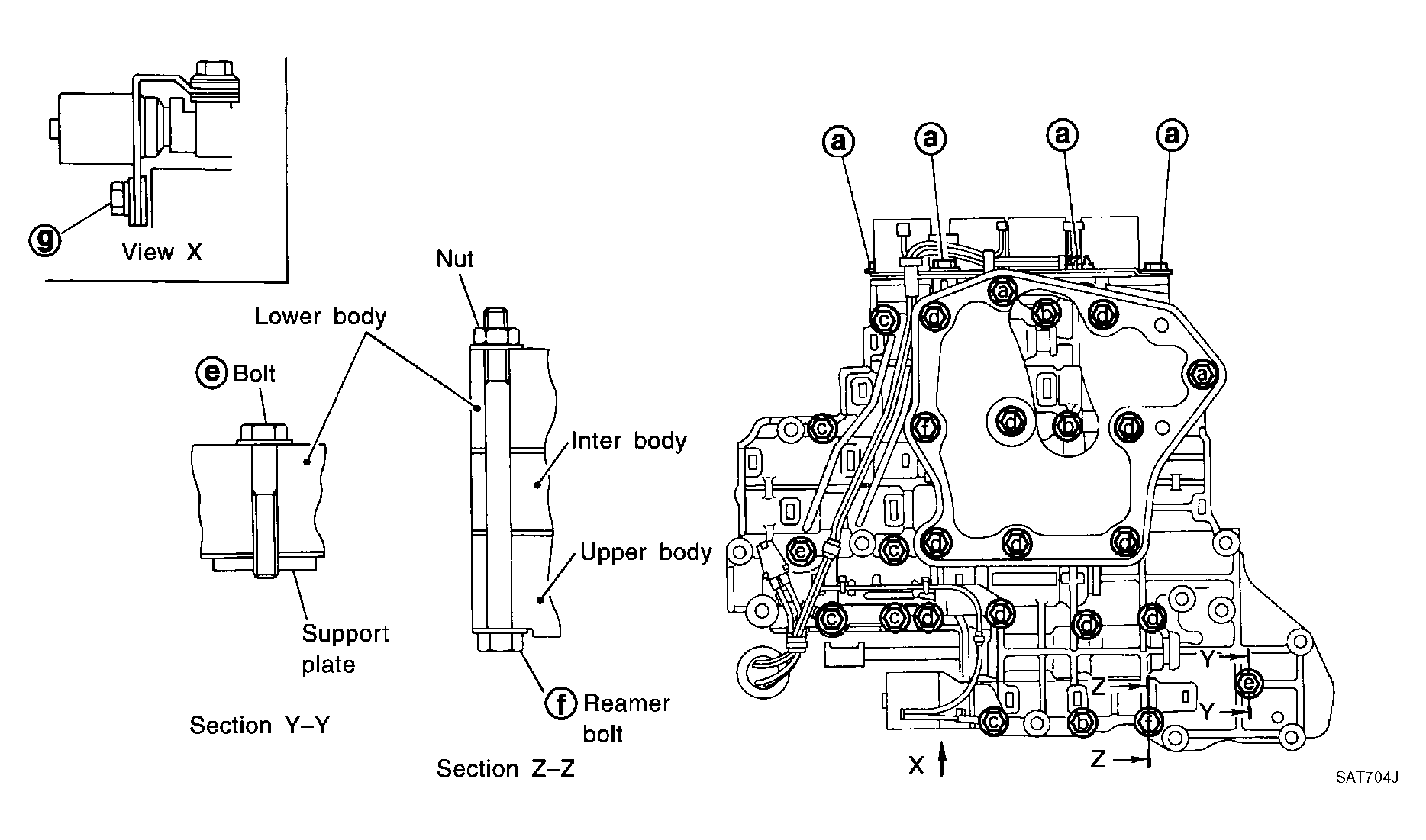

Bolt length, number and location:
BOLT LENGTH, NUMBER AND LOCATION
| Bolt symbol | a | b | c | d | e | f | g |
|---|---|---|---|---|---|---|---|
| 13.5 (0.531) | 58.0 (2.283) | 40.0 (1.575) | 66.0 (2.598) | 33.0 (1.299) | 78.0 (3.071) | 18.0 (0.709) | |
| Number of bolts | 6 | 3 | 6 | 11 | 2 | 2 | 1 |
f: Reamer bolt and nut.

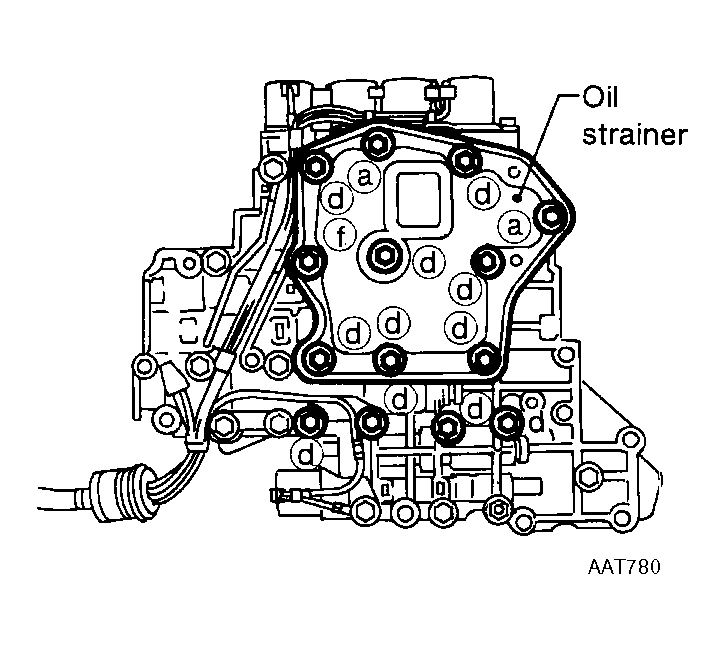

- Remove bolts a , d and nut f and remove oil strainer from control valve assembly.

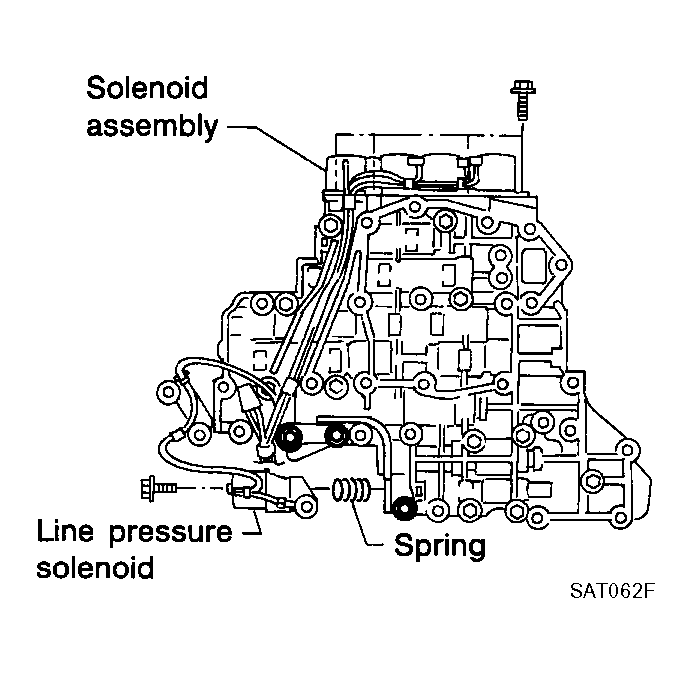

- Remove solenoid valve assembly and line pressure solenoid valve from control valve assembly.

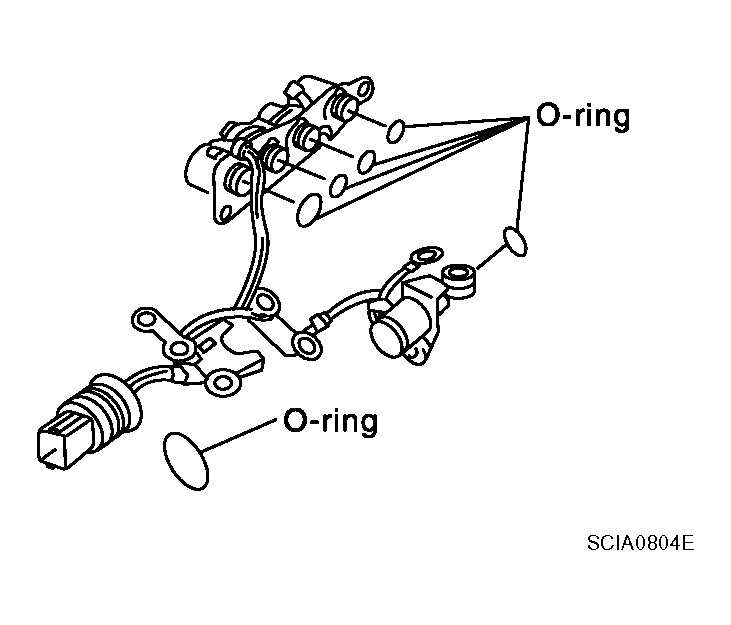

- Remove O-rings from solenoid valves and terminal body.

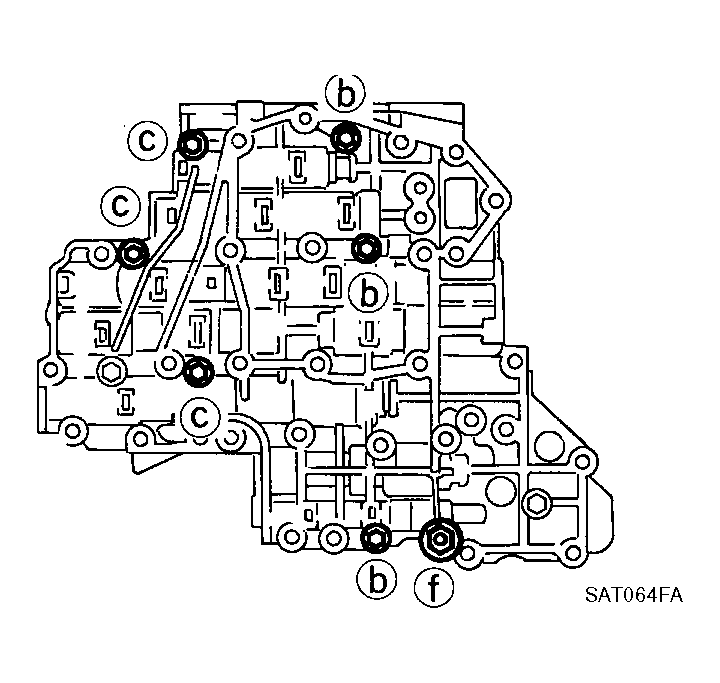

- Place upper body facedown, and remove bolts b , c and nut f .

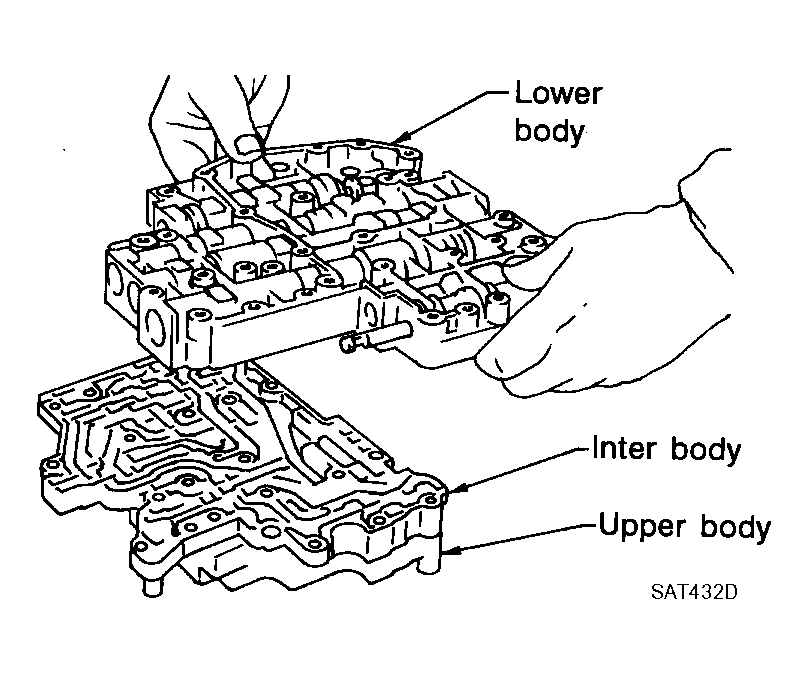

- Remove inter body from lower body.

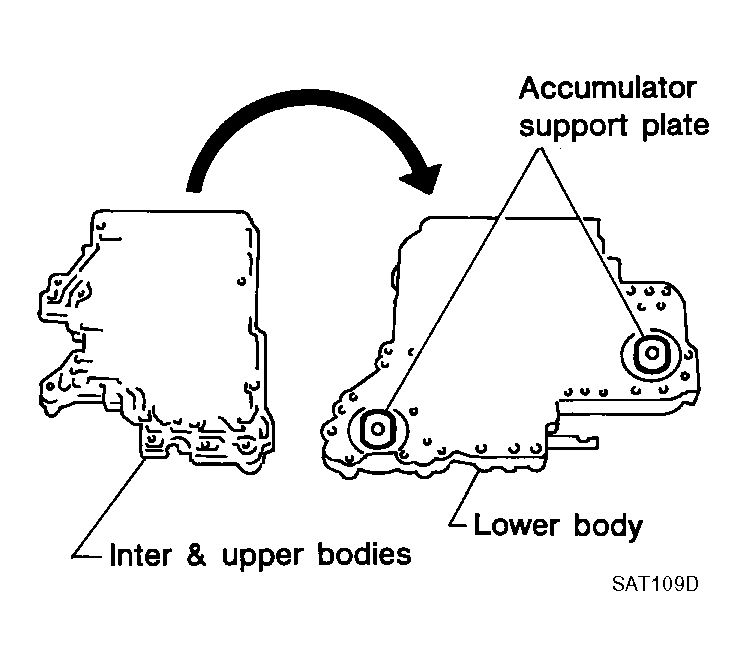

- Turn over lower body, and remove accumulator support plate.
- Remove bolts e , separating plate and separating gasket from lower body.

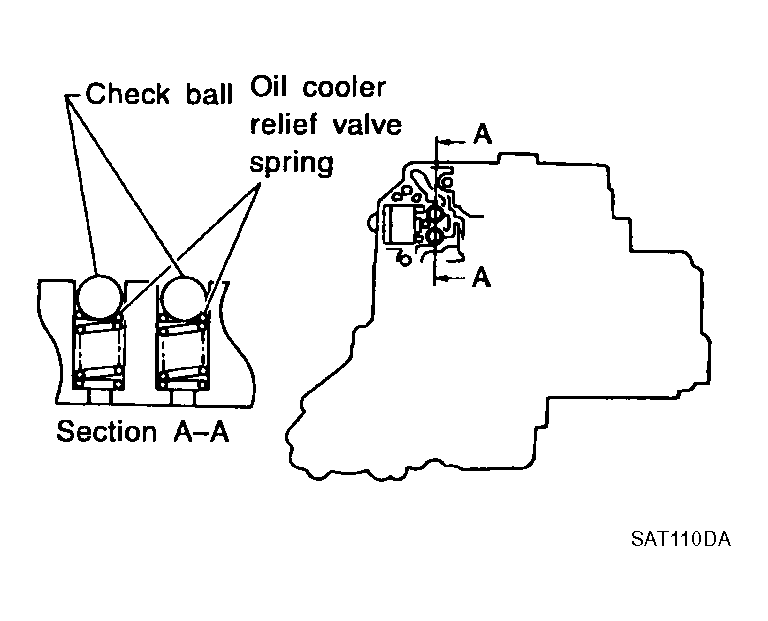

- Remove check balls and oil cooler relief valve springs from lower body.
- Be careful not to lose check balls and oil cooler relief valve springs .

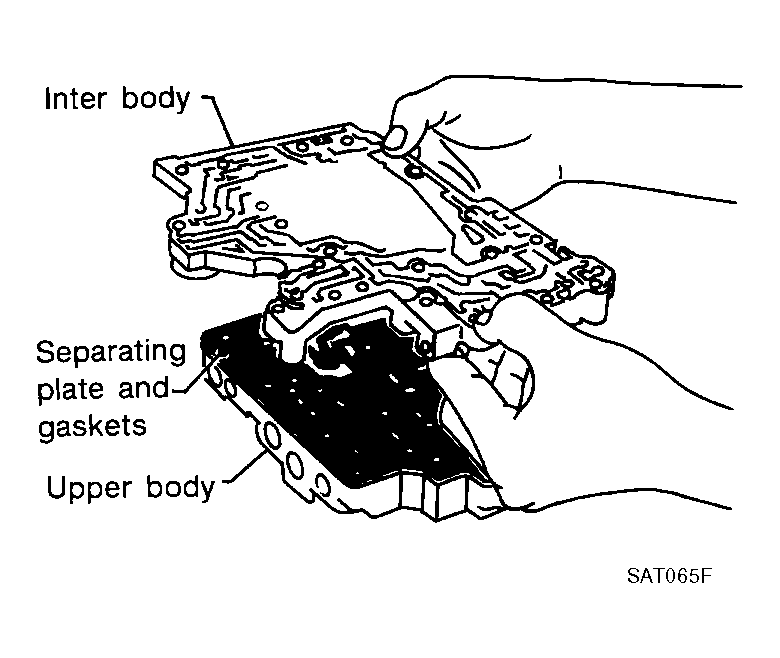

- Remove inter body from upper body.

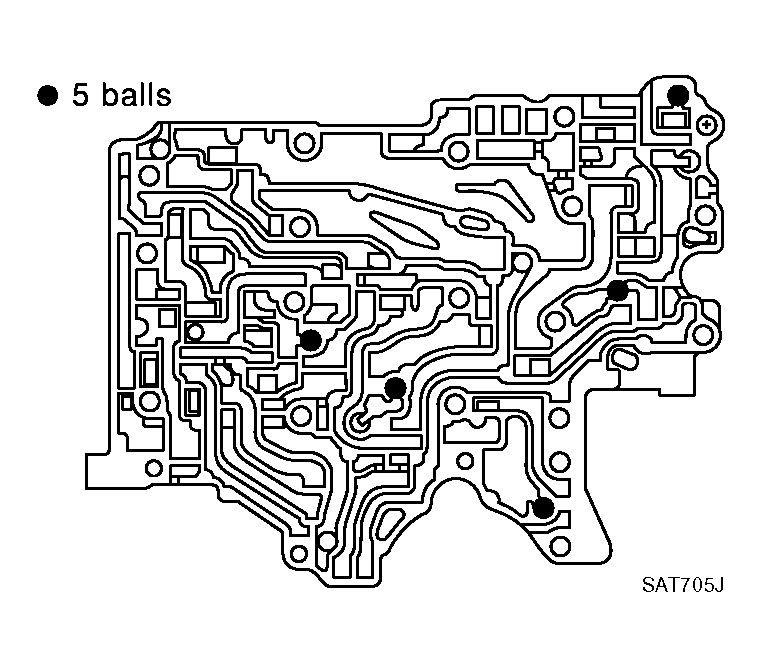

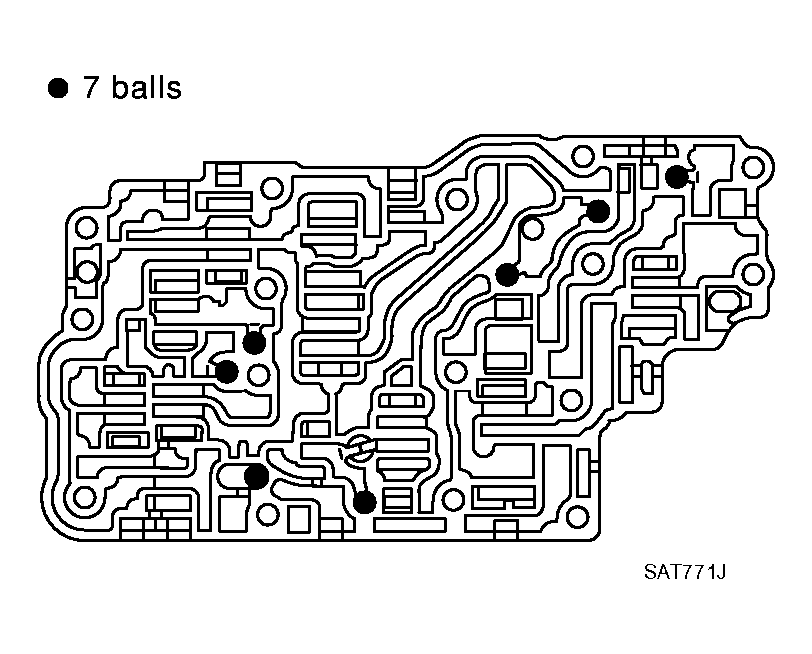

- Check to see that steel balls are properly positioned in inter body and then remove them.
- Be careful not to lose steel balls .
- Check to see that steel balls are properly positioned in upper body and then remove them.
- Be careful not to lose steel balls .
