Control Valve Assembly: Components

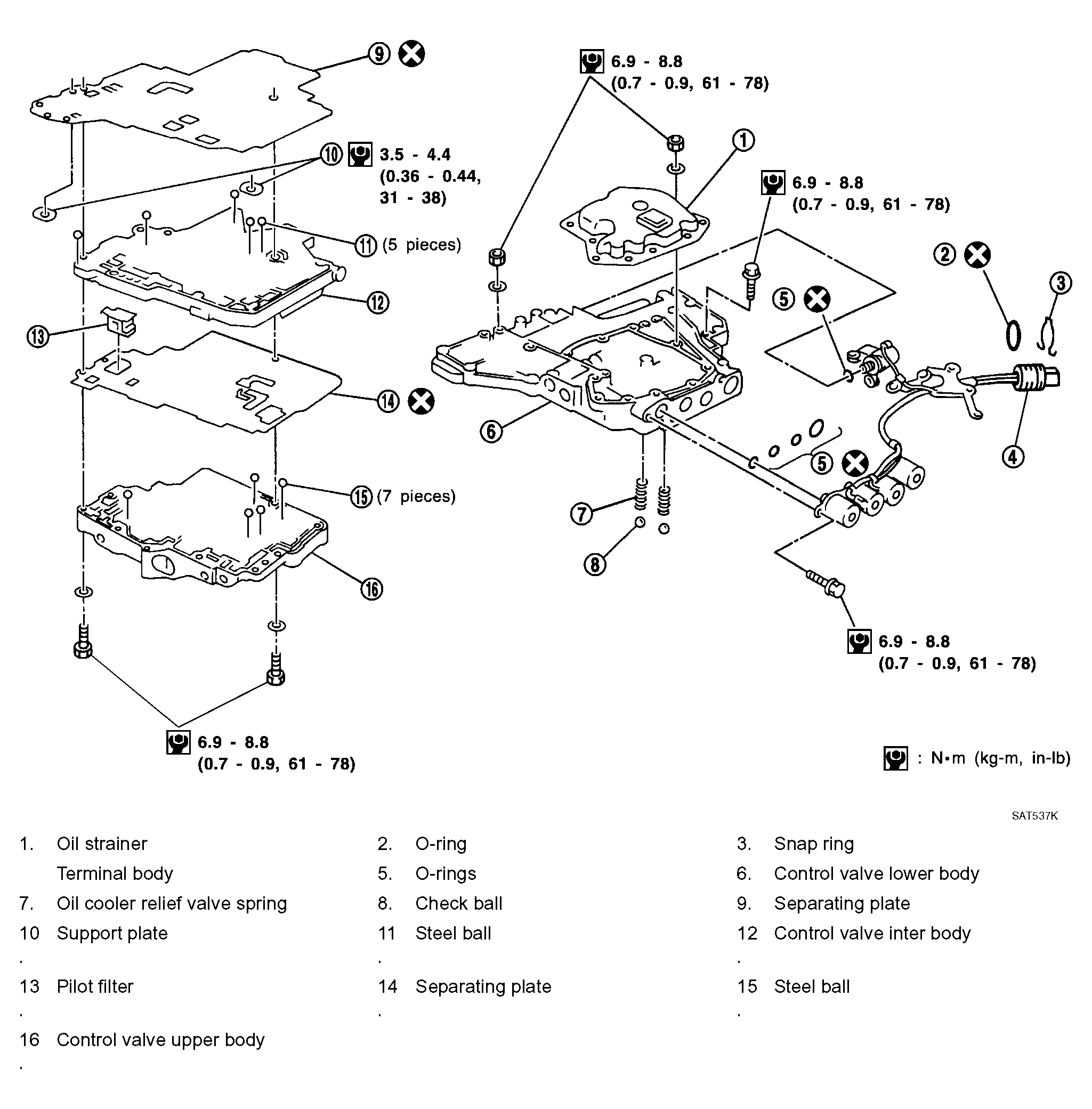

Fig 1: Control Valve Assembly Replacement Components With Torque Specifications
G04194139Courtesy of NISSAN MOTOR CO., U.S.A.
