Control Valve Assembly: Assembly

1. Install upper, inter and lower body.

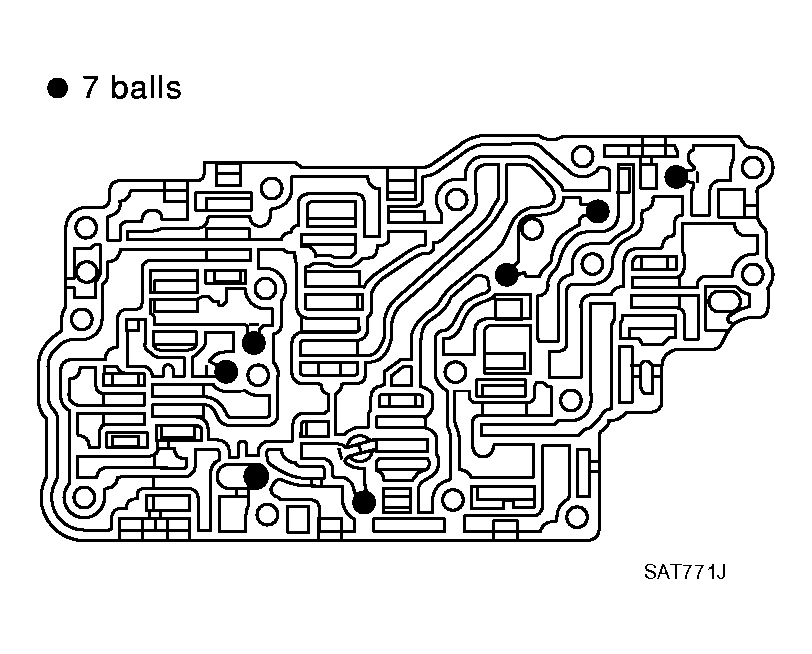

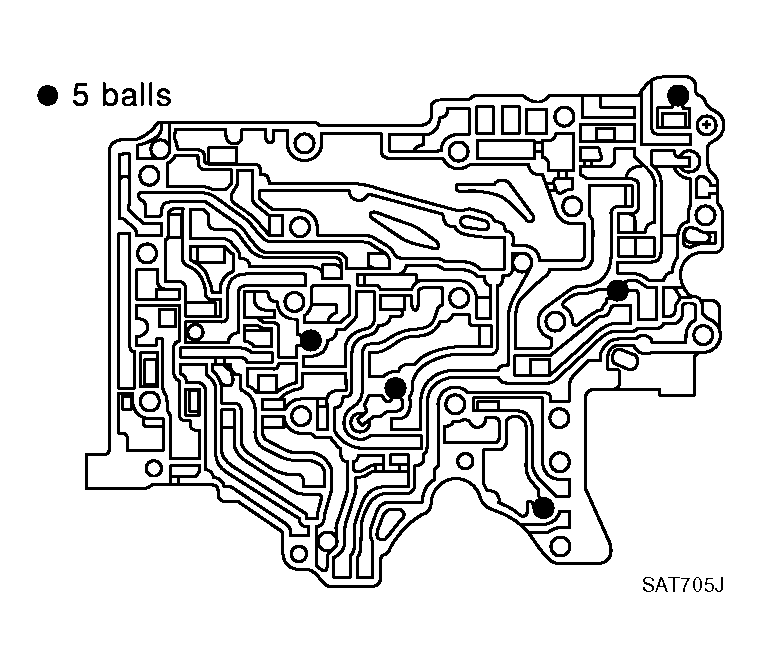

   1. Place oil circuit of upper body face up. Install steel balls in their proper positions.
      Fig 1: Installing Steel Balls

      Courtesy of NISSAN MOTOR CO., U.S.A.

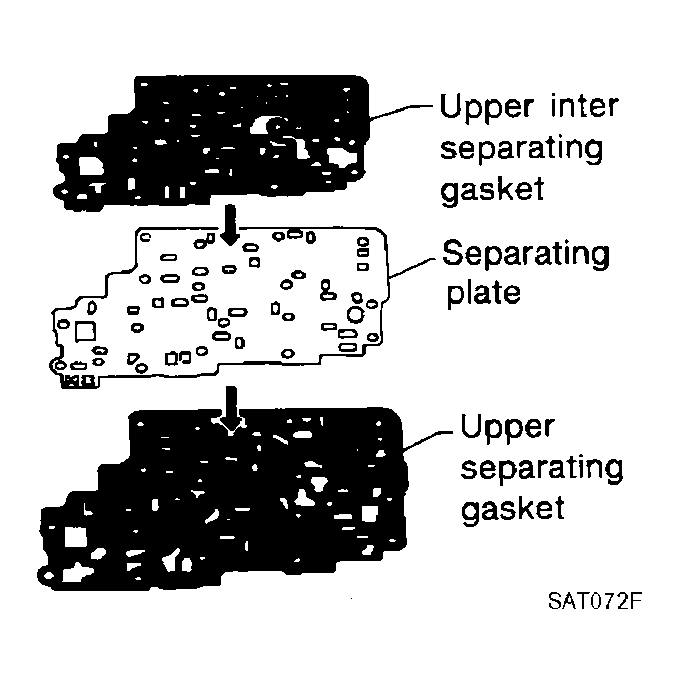

   2. Install upper separating gasket, upper inter separating gasket and upper separating plate in order shown in illustration.
      Fig 2: Installing Upper Separating Gasket, Upper Inter Separating Gasket & Upper Separating Plate

      Courtesy of NISSAN MOTOR CO., U.S.A.

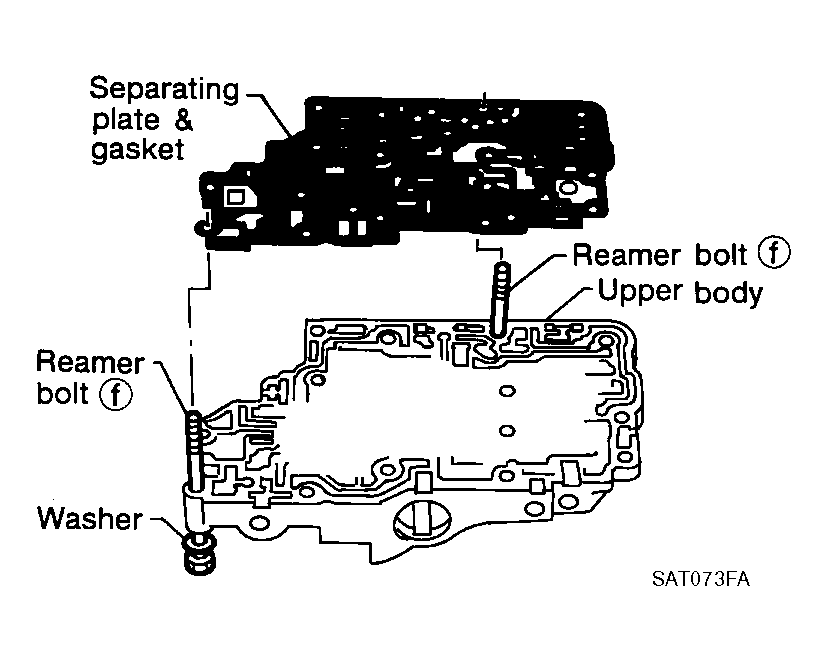

   3. Install reamer bolts f  from bottom of upper body. Using reamer bolts as guides, install separating plate and gaskets as a set.
      Fig 3: Installing Reamer Bolts

      Courtesy of NISSAN MOTOR CO., U.S.A.

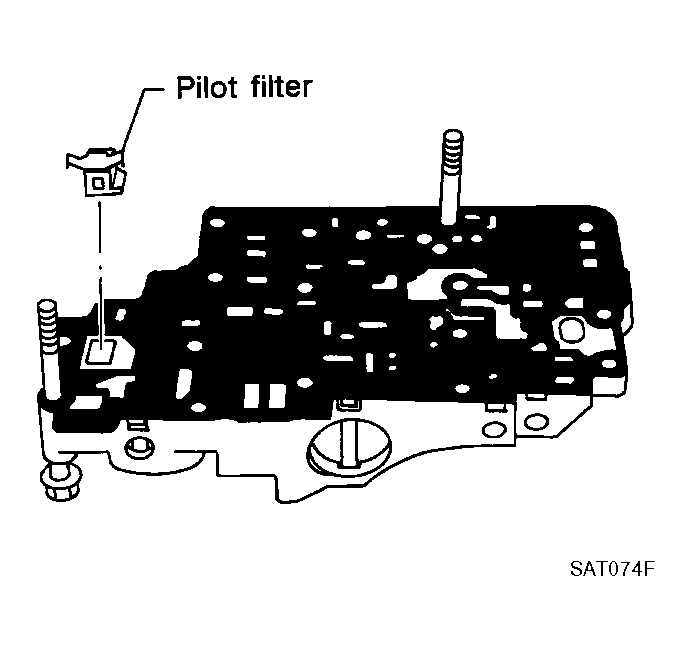

   4. Install pilot filter.
      Fig 4: Installing Pilot Filter

      Courtesy of NISSAN MOTOR CO., U.S.A.
   5. Place lower body as shown in illustration (side of inter body face up). Install steel balls in their proper positions.
      Fig 5: Installing Steel Balls In Lower Body

      Courtesy of NISSAN MOTOR CO., U.S.A.

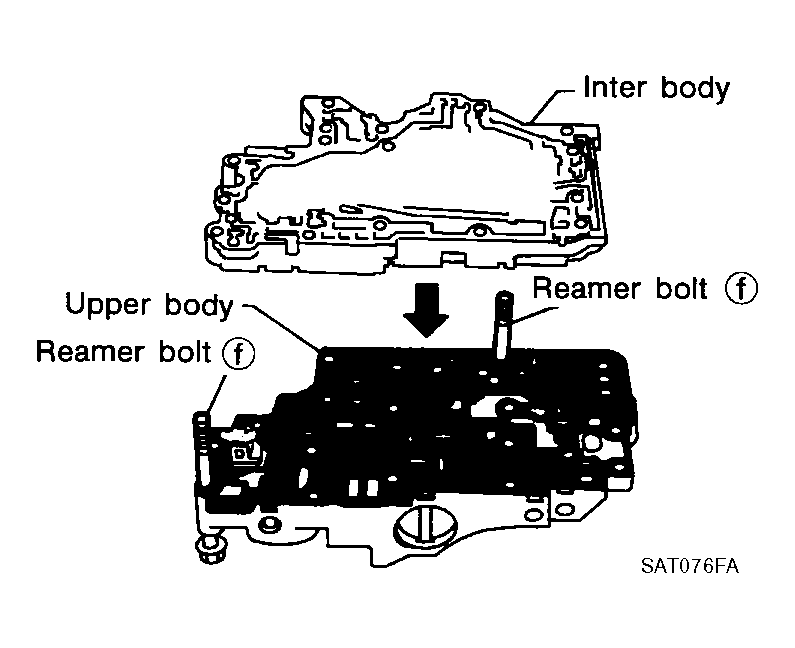

   6. Install inter body on upper body using reamer bolts f  as guides.
      • Be careful not to dislocate or drop steel balls  .
      Fig 6: Installing Inter Body On Upper Body

      Courtesy of NISSAN MOTOR CO., U.S.A.

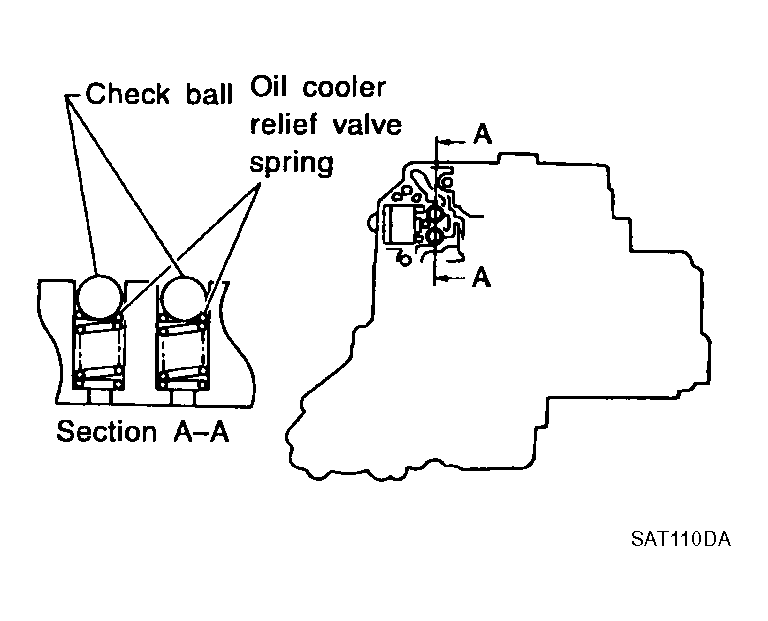

   7. Install check balls and oil cooler relief valve springs in their proper positions in lower body.
      Fig 7: Installing Check Balls And Oil Cooler Relief Valve Springs

      Courtesy of NISSAN MOTOR CO., U.S.A.

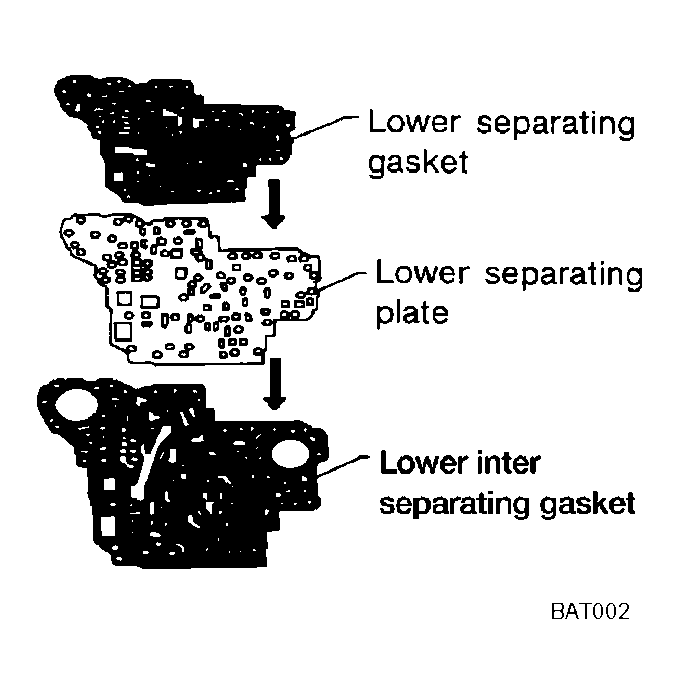

   8. Install lower separating gasket, lower inter separating gasket and lower separating plate in order shown in illustration.
      Fig 8: Installing Lower Separating Gasket, Lower Inter Separating Gasket & Lower Separating Plate

      Courtesy of NISSAN MOTOR CO., U.S.A.

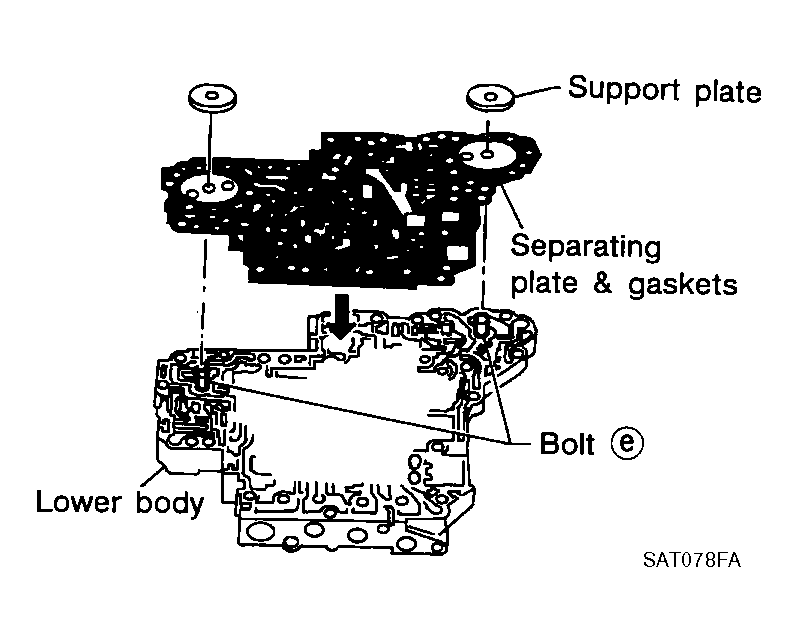

   9. Install bolts e  from bottom of lower body. Using bolts e  as guides, install separating plate and gaskets as a set.
      Fig 9: Installing Bolts, Separating Plate & Gaskets

      Courtesy of NISSAN MOTOR CO., U.S.A.
   10. Temporarily install support plates on lower body.

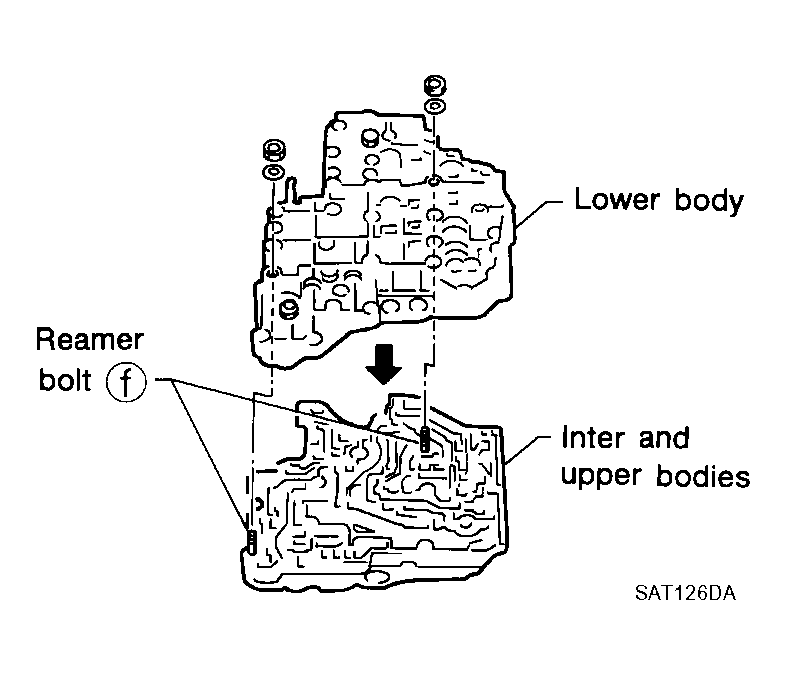

   11. Install lower body on inter body using reamer bolts f  as guides and tighten reamer bolts f  slightly.
   Fig 10: Installing Lower Body On Inter Body

   Courtesy of NISSAN MOTOR CO., U.S.A.

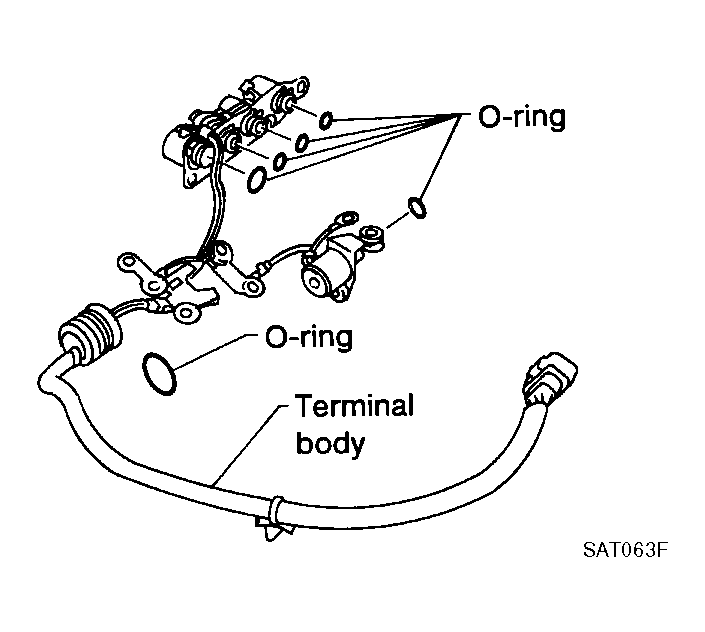

2. Install O-rings to solenoid valves and terminal body.
   • Apply ATF to O-rings  .
   Fig 11: Installing O-Rings To Solenoid Valves And Terminal Body

   Courtesy of NISSAN MOTOR CO., U.S.A.
3. Install and tighten bolts.

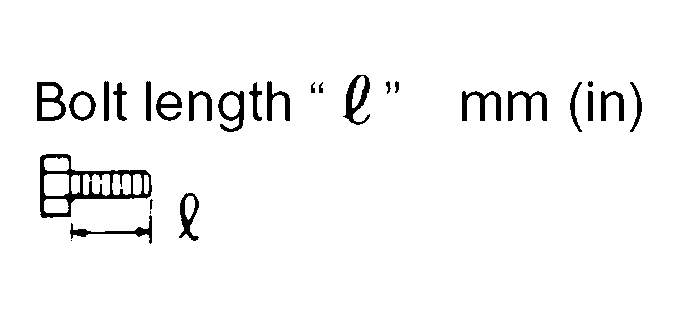

Bolt length, number and location:

Bolt symbol	a	b	c	d	e	f	g
Courtesy of NISSAN MOTOR CO., U.S.A.	13.5 (0.531)	58.0 (2.283)	40.0 (1.575)	66.0 (2.598)	33.0 (1.299)	78.0 (3.071)	18.0 (0.709)
Number of bolts	6	3	6	11	2	2	1

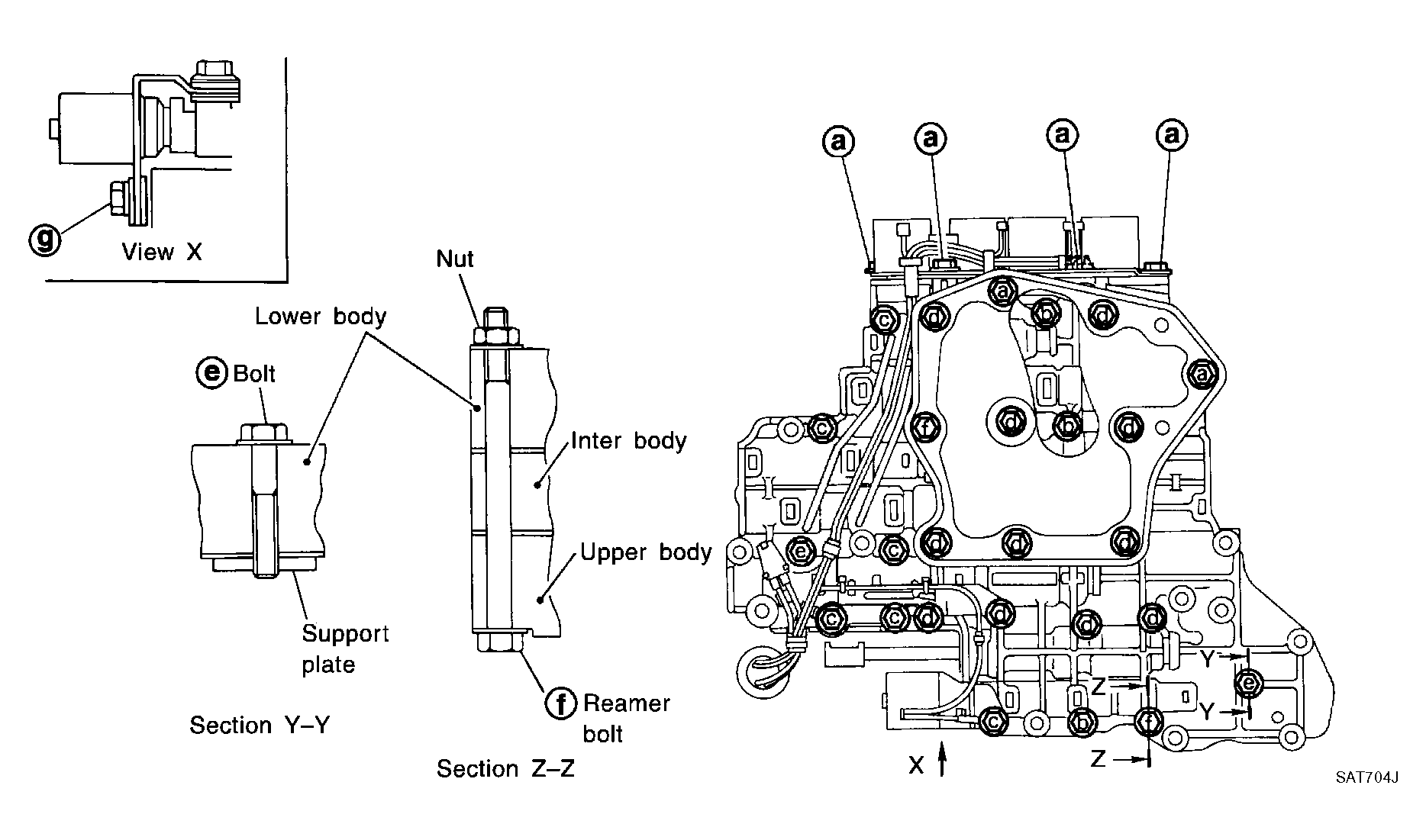

Fig 12: Identifying Bolt Locations

Courtesy of NISSAN MOTOR CO., U.S.A.

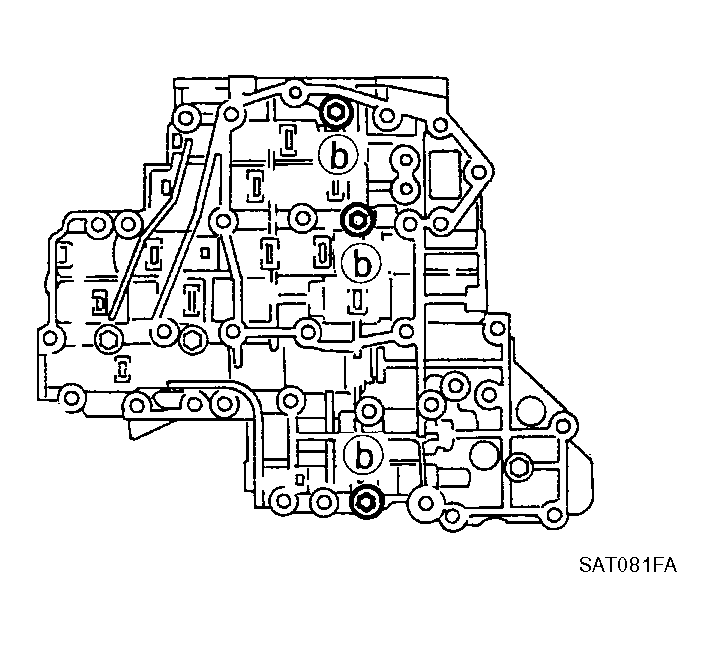

1. Install and tighten bolts b  to specified torque.

   : 7 - 9 N.m (0.7 - 0.9 kg-m, 61 - 78 in-lb)

   Fig 13: Tightening Bolts

   Courtesy of NISSAN MOTOR CO., U.S.A.

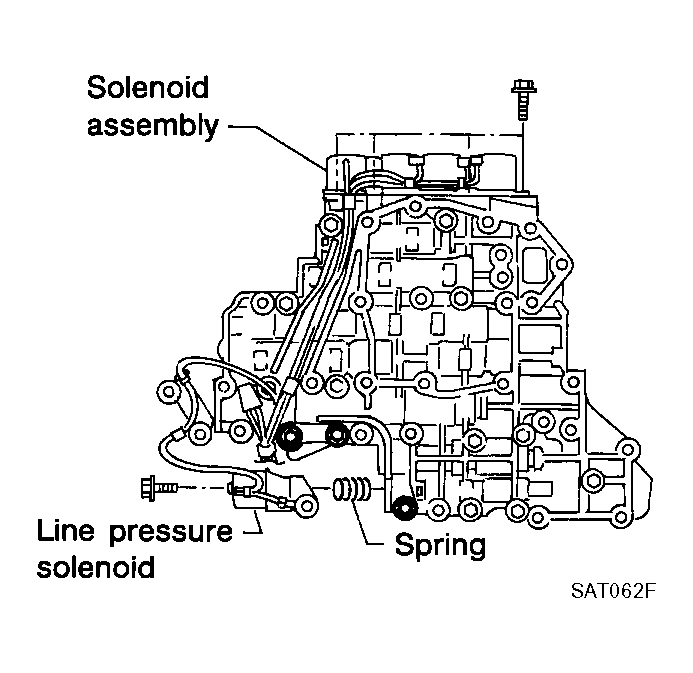

2. Install solenoid valve assembly and line pressure solenoid valve to lower body.
   Fig 14: Installing Solenoid Valve Assembly & Line Pressure Solenoid Valve

   Courtesy of NISSAN MOTOR CO., U.S.A.

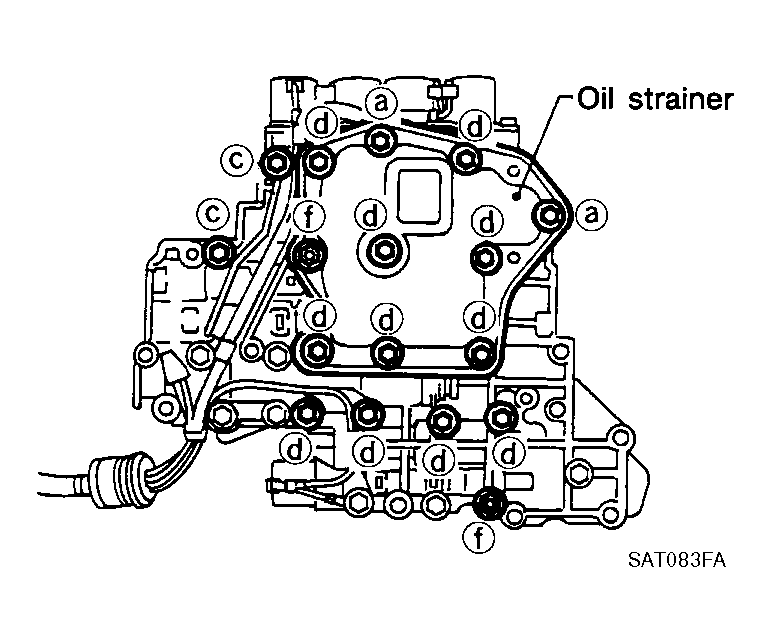

3. Set oil strainer, then tighten bolts a  , c  , d  and nuts f  to specified torque.

   : 7 - 9 N.m (0.7 - 0.9 kg-m, 61 - 78 in-lb)

   Fig 15: Setting Oil Strainer

   Courtesy of NISSAN MOTOR CO., U.S.A.

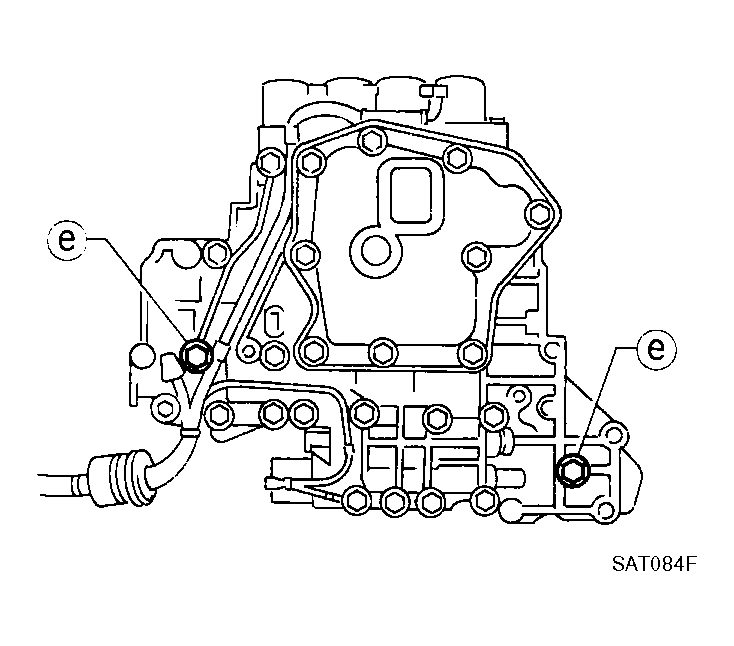

4. Tighten bolts e  to specified torque.

   : 3.4 - 4.4 N.m (0.35 - 0.45 kg-m, 30.4 - 39.1 in-lb)

Fig 16: Tightening Bolts

Courtesy of NISSAN MOTOR CO., U.S.A.
