Band Servo Piston Assembly: Components

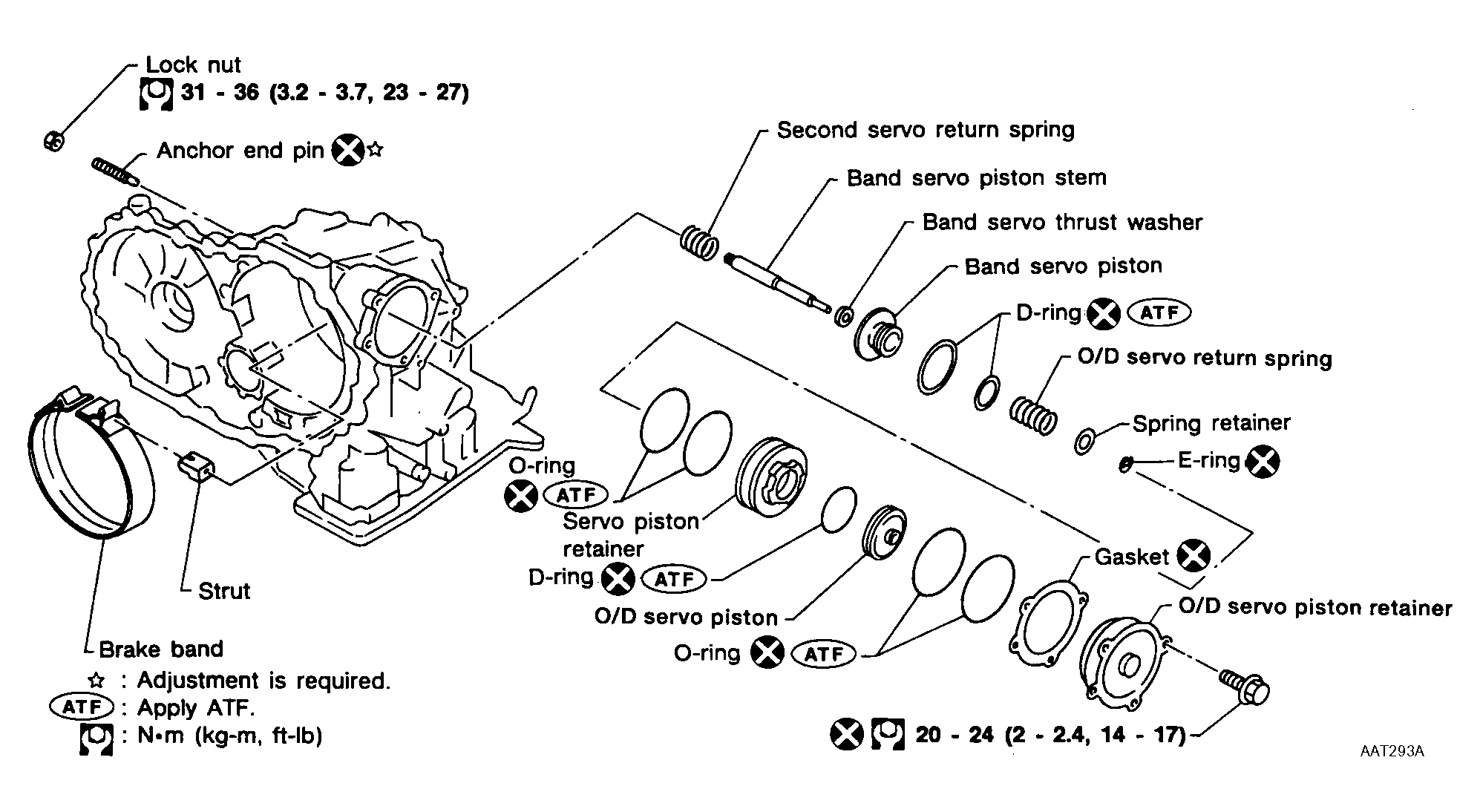

Fig 1: Band Servo Piston Assembly Replacement Components With Torque Specifications
G04194292Courtesy of NISSAN MOTOR CO., U.S.A.
