Throttle Control Motor

  1. Disconnect electric throttle control actuator harness connector.
  2. Check resistance between terminals 3 and 6.

    Resistance: Approximately 1 - 15 Ω [at 25 °C (77°F)]

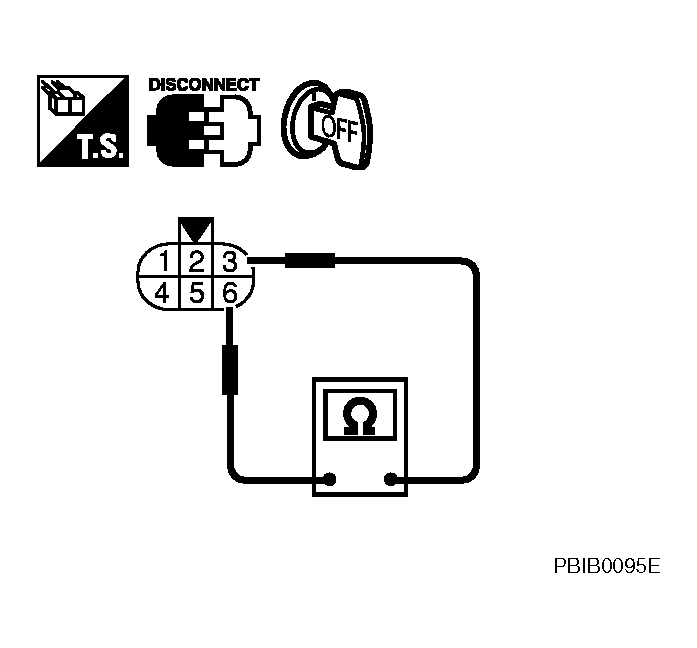

    3. Fig 1: Checking Resistance Between Harness Connector Terminals 3 And 6
    G04074322Courtesy of NISSAN MOTOR CO., U.S.A.
  3. If NG, replace electric throttle control actuator and go to next step.
  4. Perform "THROTTLE VALVE CLOSED POSITION LEARNING ".
  5. Perform "IDLE AIR VOLUME LEARNING ".
